6-Axis Mechanical Desktop Robotic Arm, Frame & Servo Kit

6-Axis Mechanical Desktop Robotic Arm, Frame & Servo Kit

6-Axis Mechanical Desktop Robotic Arm, Frame & Servo Kit

  • Product Code:101-20-133-01
  • Availability:In Stock
  • $5.00

  • Ex Tax:$5.00

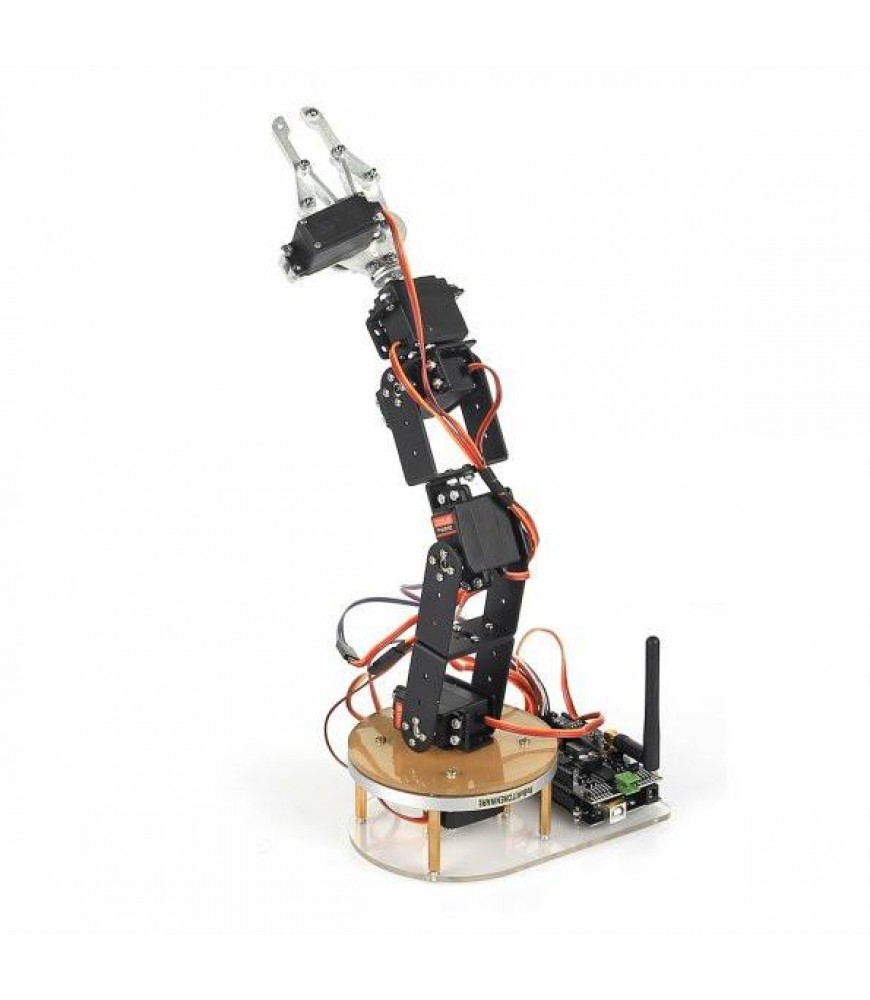

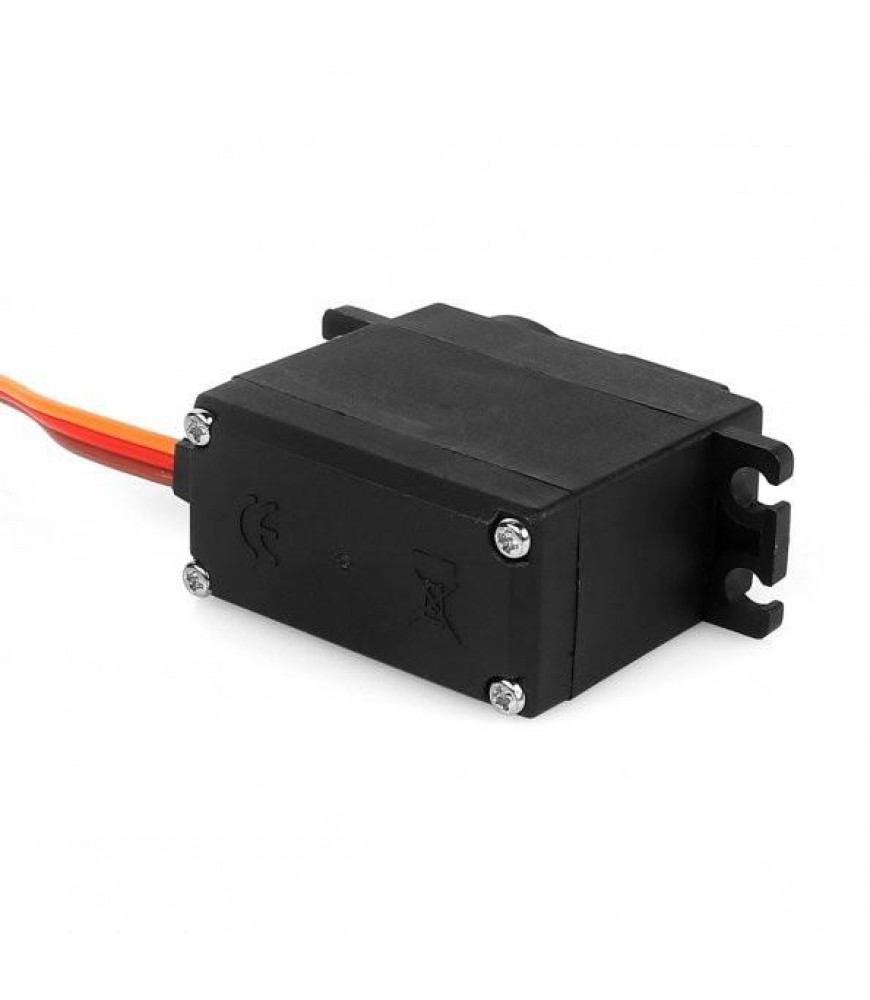

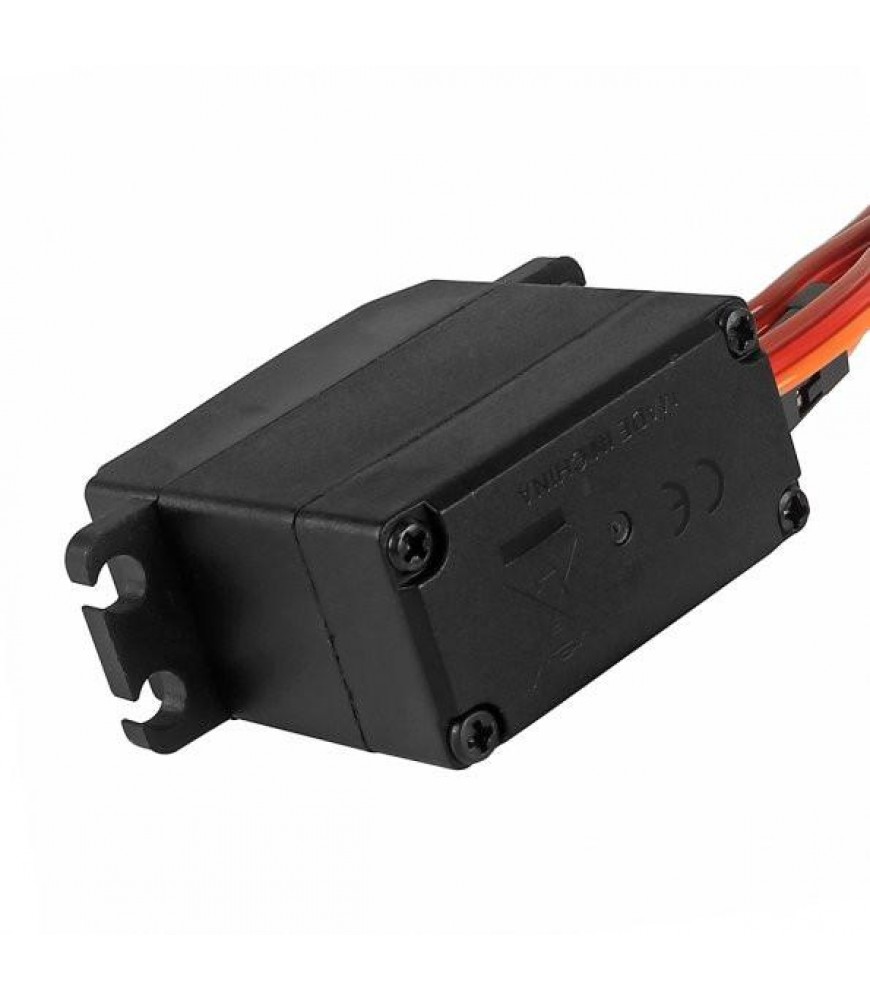

The robotic arm is rotating multiple-dimensional, in front crawl the elongation distance of robotic arm is range from 50mm to 450mm (1.97" to 17.72"). The torque force of a single servo is up to 30KG, and the load capacity of bottom joint is up to 500g.

We provide assembling video in order to make it easier to assemble the robotic arm.

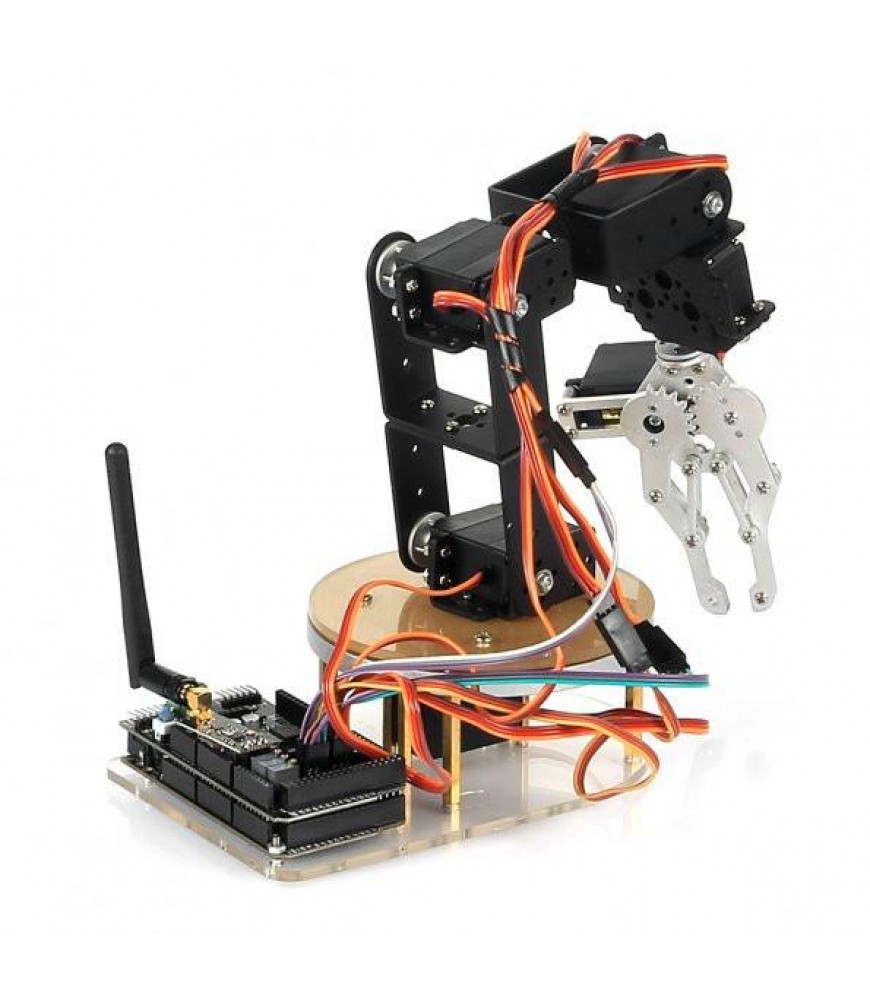

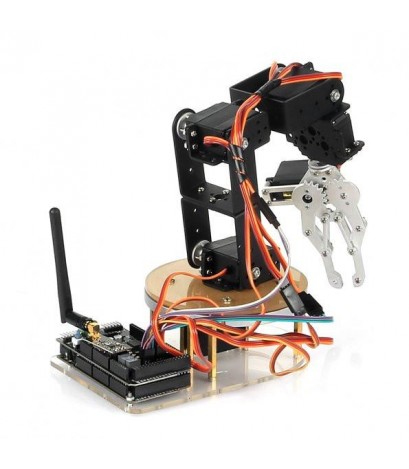

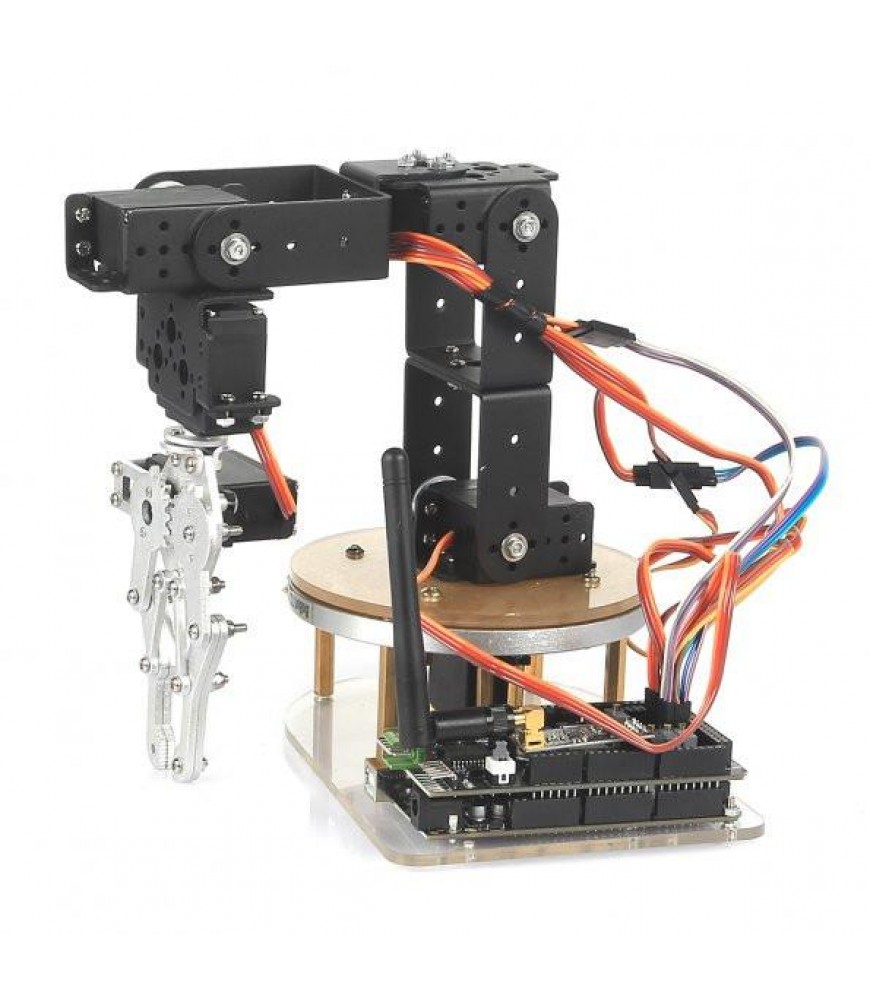

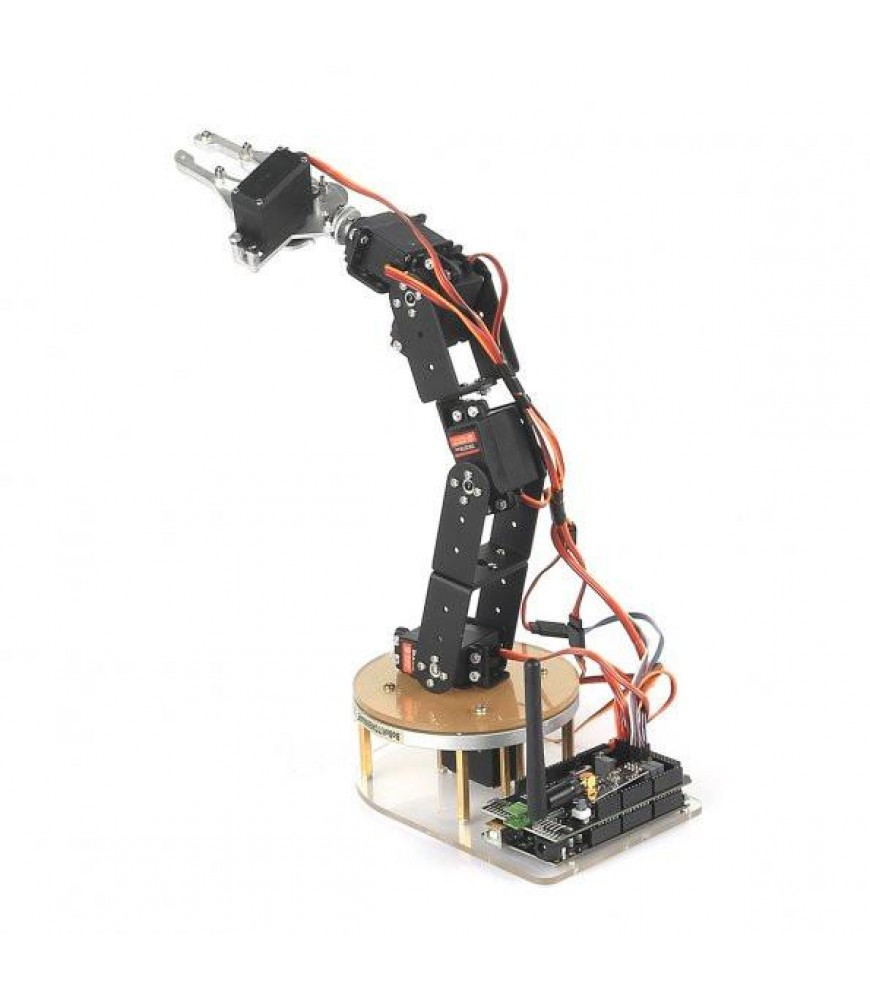

As for hardware we still provide Upgrade component to make the robotic arm more high-performance. The roating platform brings more stabilization and precision to the arm, the drive board makes it more convenient to control the arm, you do not need Dupont Line any more, just insert the servo into the shield and control your arm to do any job as you want.

SPECIFICATION

Board & Controller:

Mega 2560 R3
    MicrocontrollerATmega2560
    Operating Voltage5V
    Input Voltage (recommended)7-12V
    Input Voltage (limits)6-20V
    Digital I/O Pins54 (of which 15 provide PWM output)
    Analog Input Pins16
    DC Current per I/O Pin40 mA
    DC Current for 3.3V Pin50 mA
    Flash Memory256 KB of which 8 KB used by bootloader
    SRAM8 KB
    EEPROM4 KB
    Clock Speed16 MHz

    NRF24L01+ Wireless Transceiver Module 2.4GHz ISM band
      • 2.4GHz
      • 100m range
      • 1.9V-3.3V Vcc input
      • 2Mbps/1Mbps/250Kbps

      MPU6050 3 Axis Gyroscope Module

      A 3-axis gyroscope and a 3-axis accelerometer are combined together on the same silicon die with an onboard Digital Motion Processor.
      Easy to get it fit into your project!

      WHAT'S IN THE PACKAGE

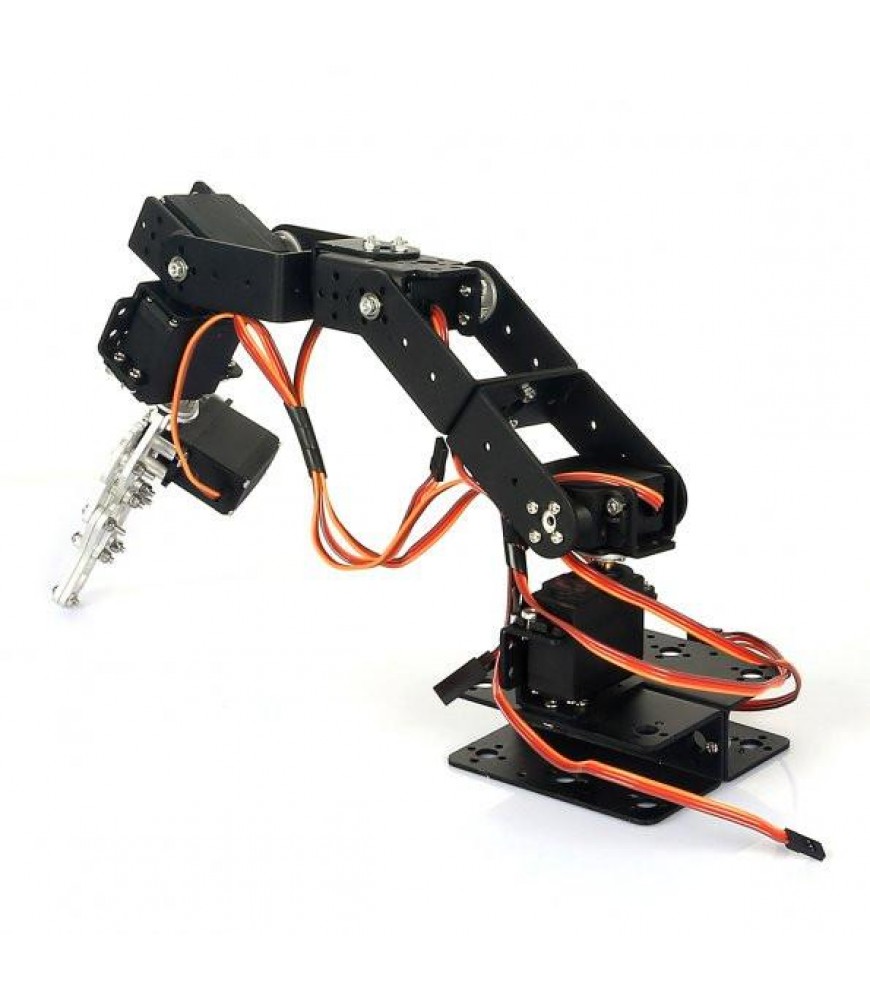

      Frame & Servo Kit

      NOTE: Controller boards and rotatable platform are NOT included.
