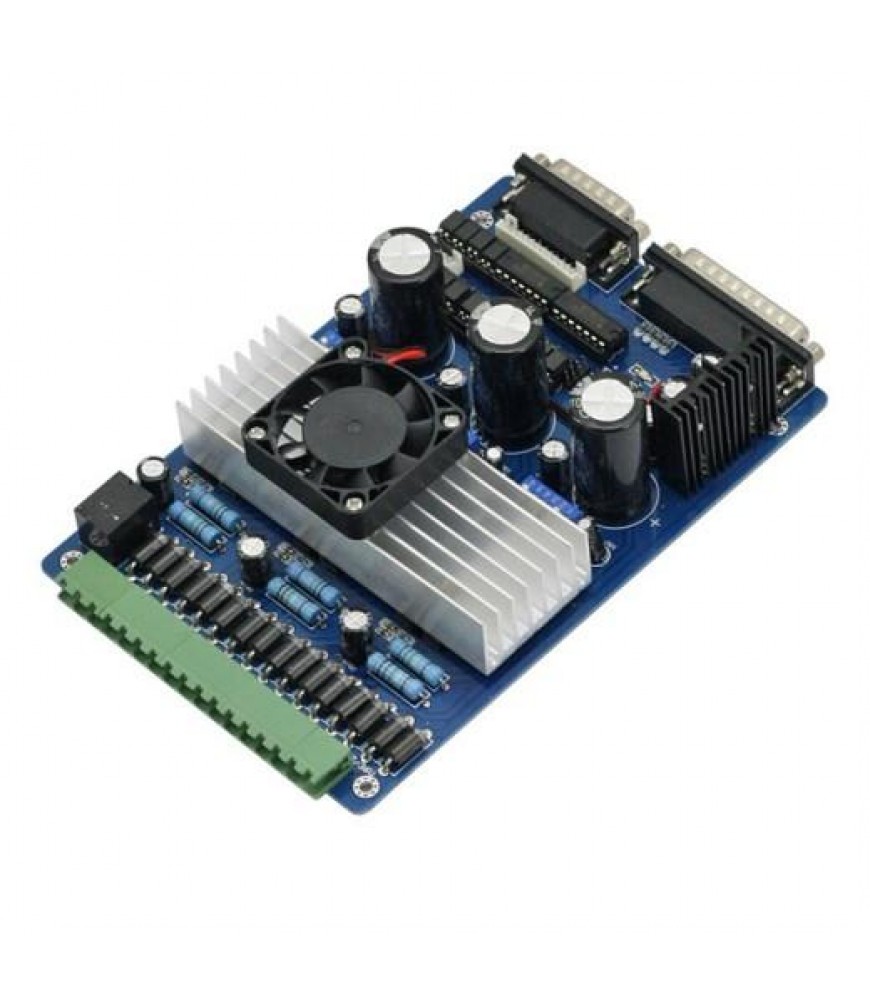

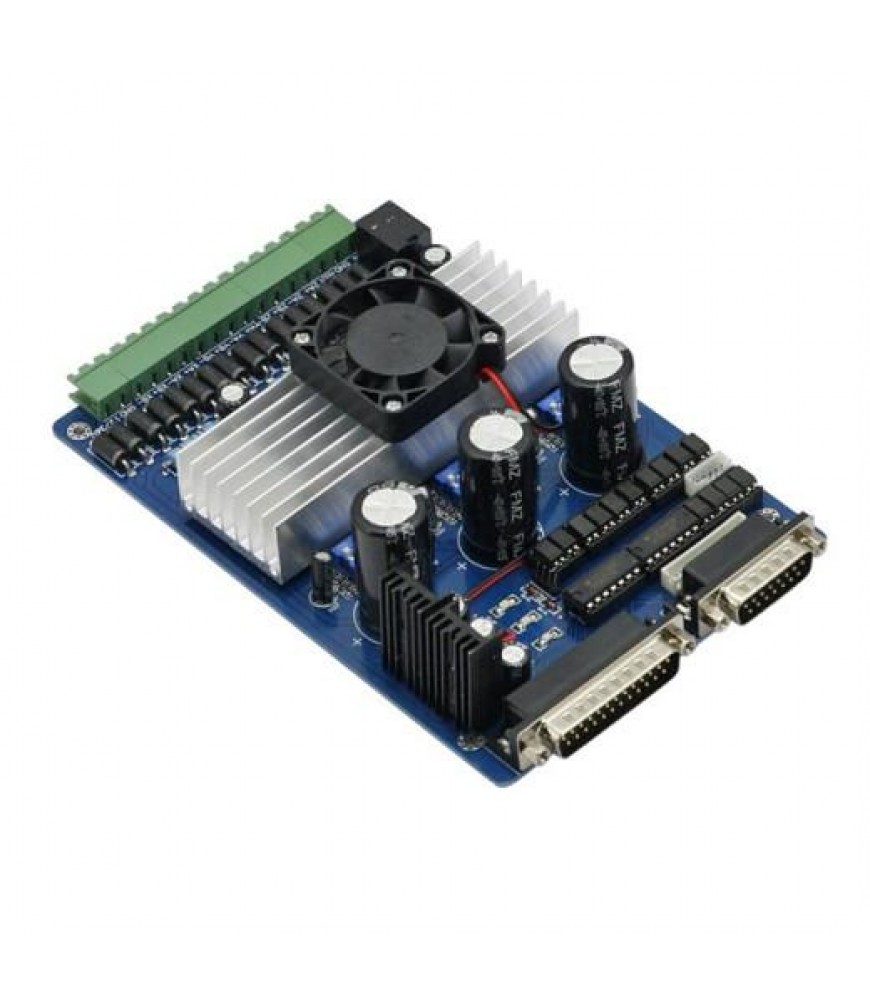

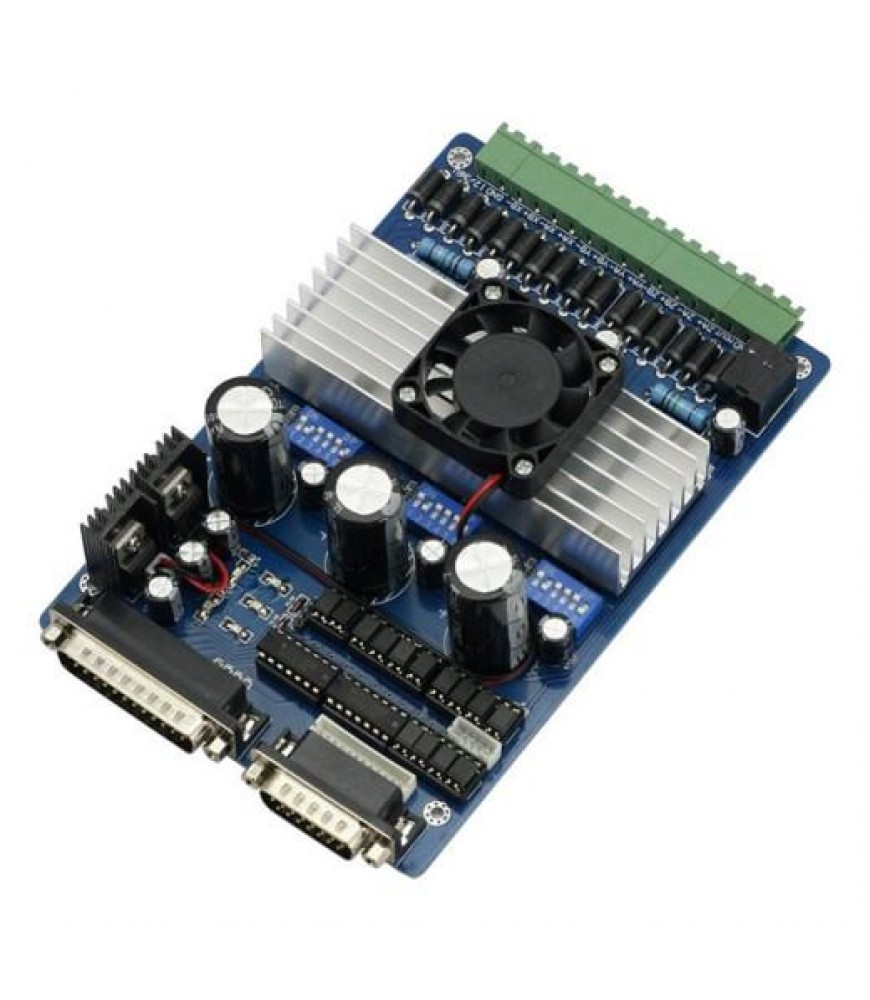

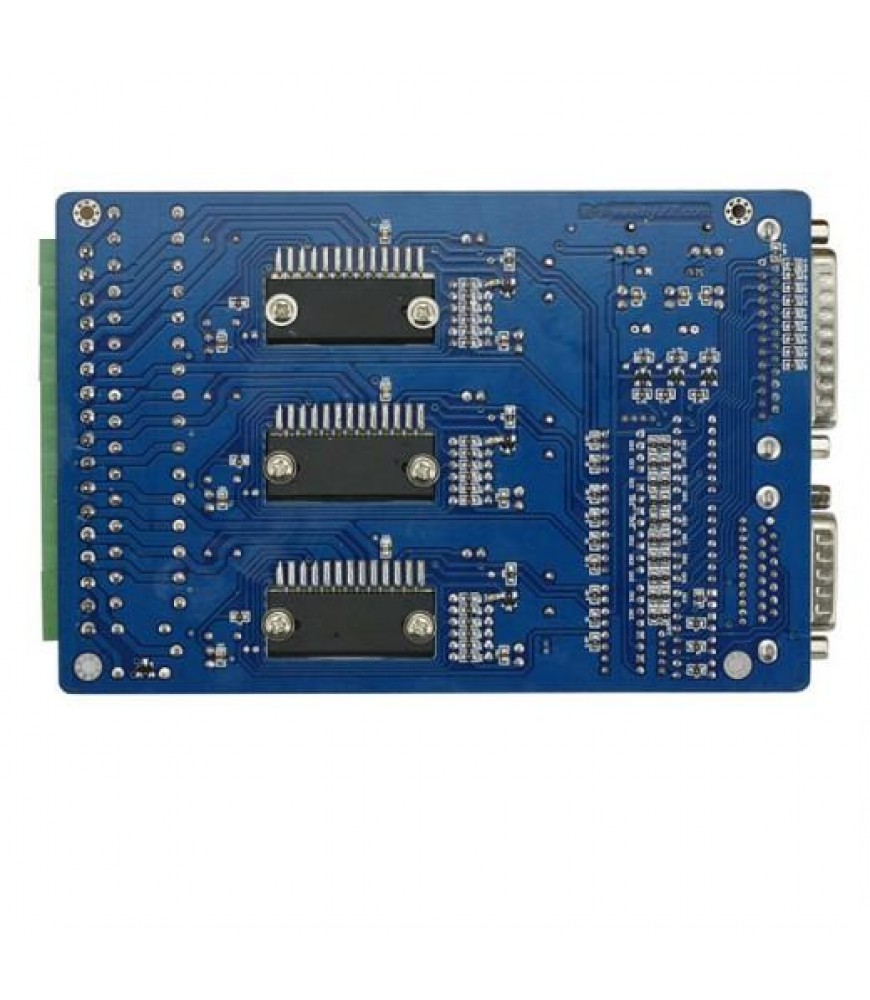

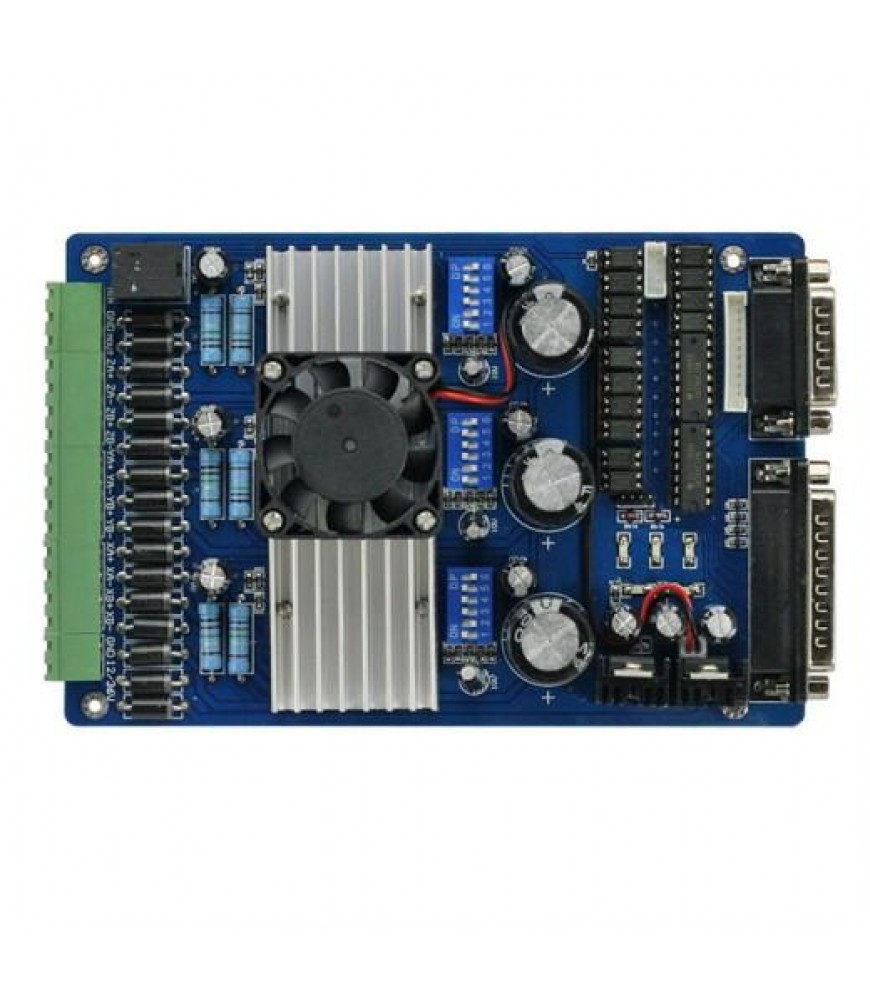

3-Axis 3.5A CNC Stepper Motor Driver Board, TB6560

3-Axis 3.5A CNC Stepper Motor Driver Board, TB6560

3-Axis 3.5A CNC Stepper Motor Driver Board, TB6560

  • Product Code:101-80-108
  • Availability:In Stock
  • $41.99

  • Ex Tax:$41.99
Please connect the power supply to the power switch of DC 12-36 V
Voltage Selection

12-16V DC power supply for NEMA-17 stepper motors
16-24V DC power supply for NEMA-23 stepper motors
24-36V DC power supply for NEMA-34 stepper motors
The power output of 12V shall be applied to the radiator fan of 12V
Driver output compatible with 2 or 4 phase, 4,6 or 8 lead stepper motors, 3A max.
Suitable for unipolar or bipolar stepper motors.
Voltage regulated spindle speed controlled by the parallel interface as function of supply voltage

WHAT’S IN THE PACKAGE
1x 3 Axis TB6560 Stepper Motor Driver
1x DB25 parallel cable
5x Wire connectors
1x CD software (English Manual & Mach 3)
