3-Axis CNC Stepper Motor Driver Controller Board & Cable

3-Axis CNC Stepper Motor Driver Controller Board & Cable

3-Axis CNC Stepper Motor Driver Controller Board & Cable

  • Product Code:101-60-192
  • Availability:In Stock
  • $36.99

  • Ex Tax:$36.99

  • it can drive three axis, The 4th axis expansion, to facilitate your needs 4-axis machining when working
  • Spindle relay output, easy to use software such as mach3 to control spindle start and stop.
  • Semi-flow control functions, and effective to stop the motor when the current is reduced to a minimum.
  • Interface with a fan, you can add fan under your choice.
  • With 3 wire 0.8-3.5A (peak) rated output of two-phase adjustable-current bipolar stepper motor drive;
  • Standard parallel port interface, support for MACH2, KCAM4 series software;
  • With optical isolation and DCDC power supply isolation, the full protection of your computer parallel port and equipment;
  • with limit switch, can connection 4 aixs limit switch
  • Support four micro stepping 1, 1/2, 1/8 ,1/16;
  • 12-36V single switching power supply, microchips to use as a 5V power supply, stable and heat small
  • Using RC + 7414 automatic semi-flow, the current automatic reduce when stepper motor stop to down the heat
WHAT’S IN THE PACKAGE

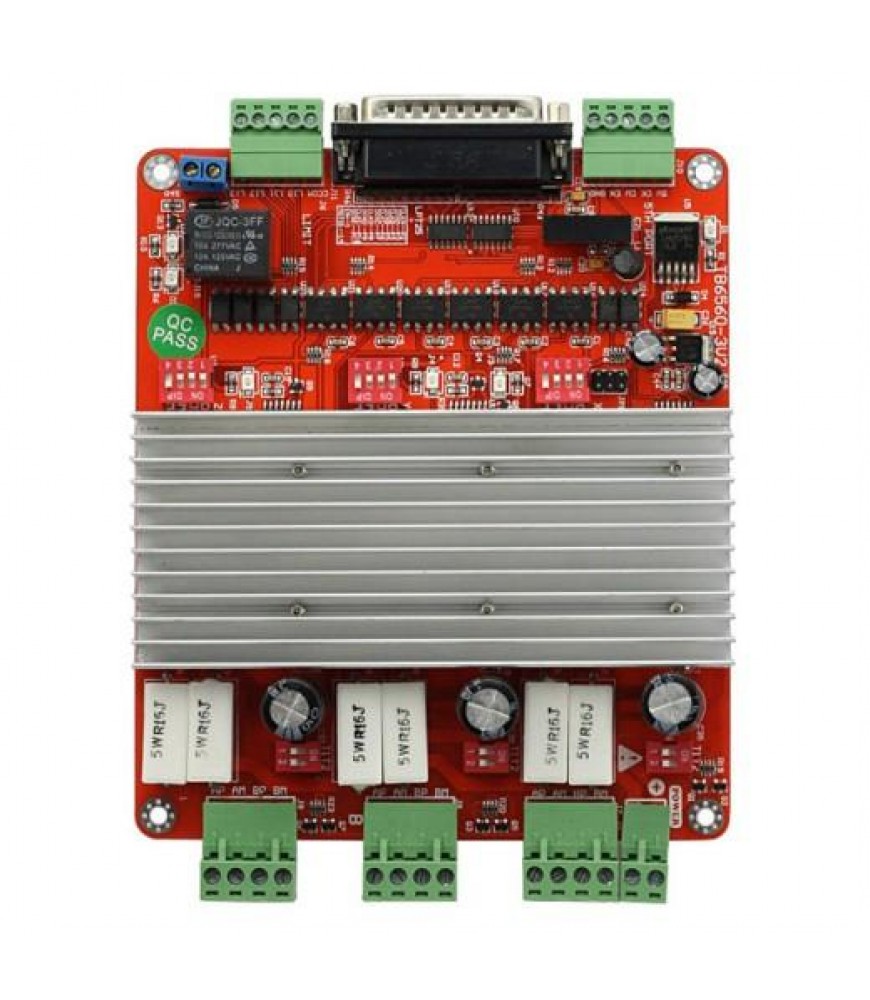

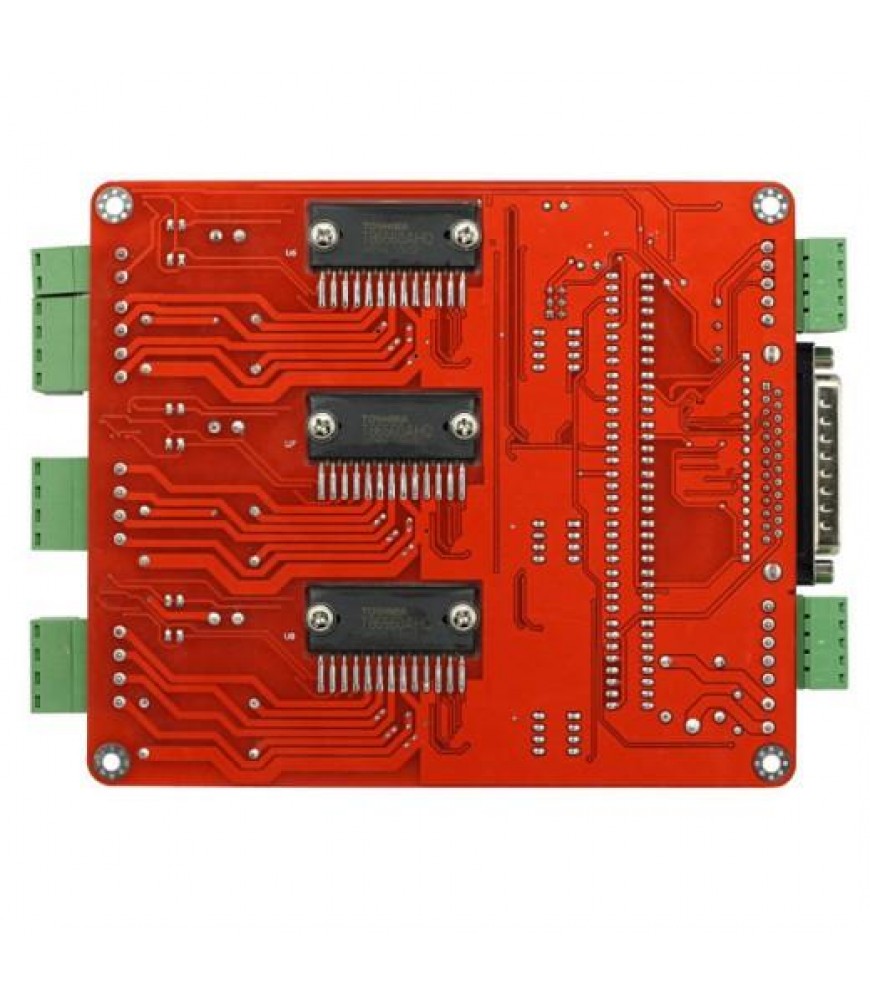

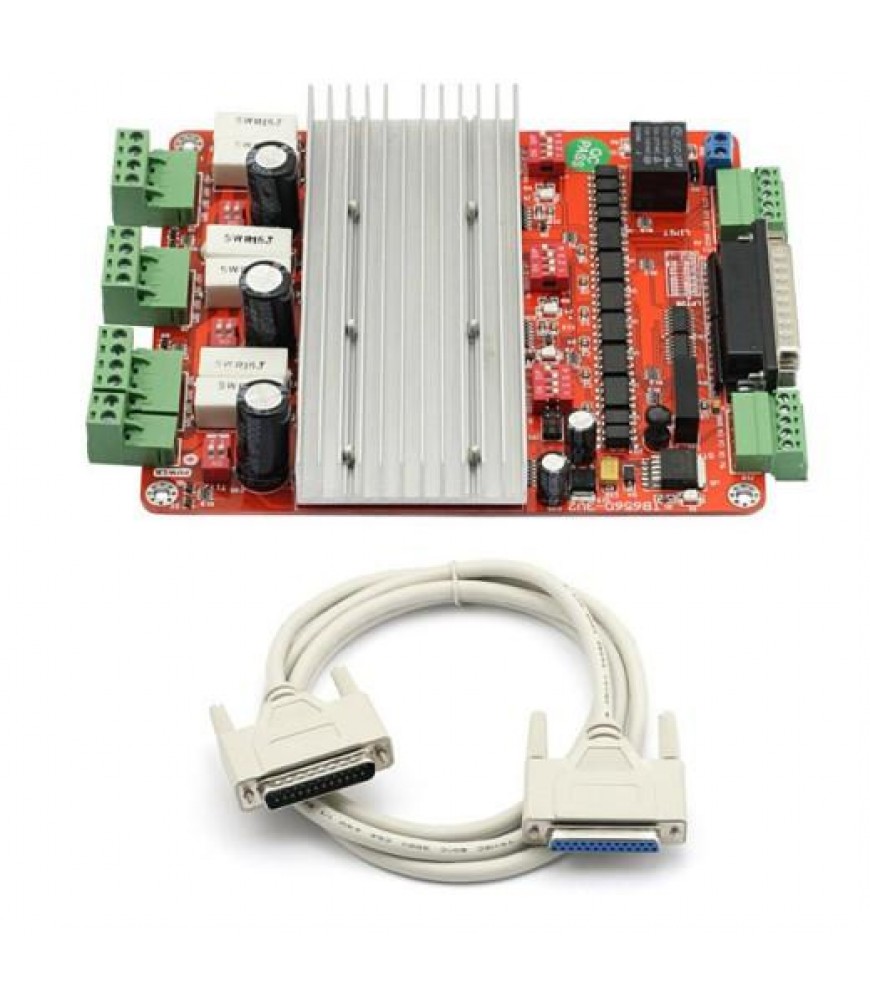

  • 1x 3-Axis TB6560 Stepper Motor Driver board
  • 1x DB25 parallel cable
  • 3x Link Terminal
