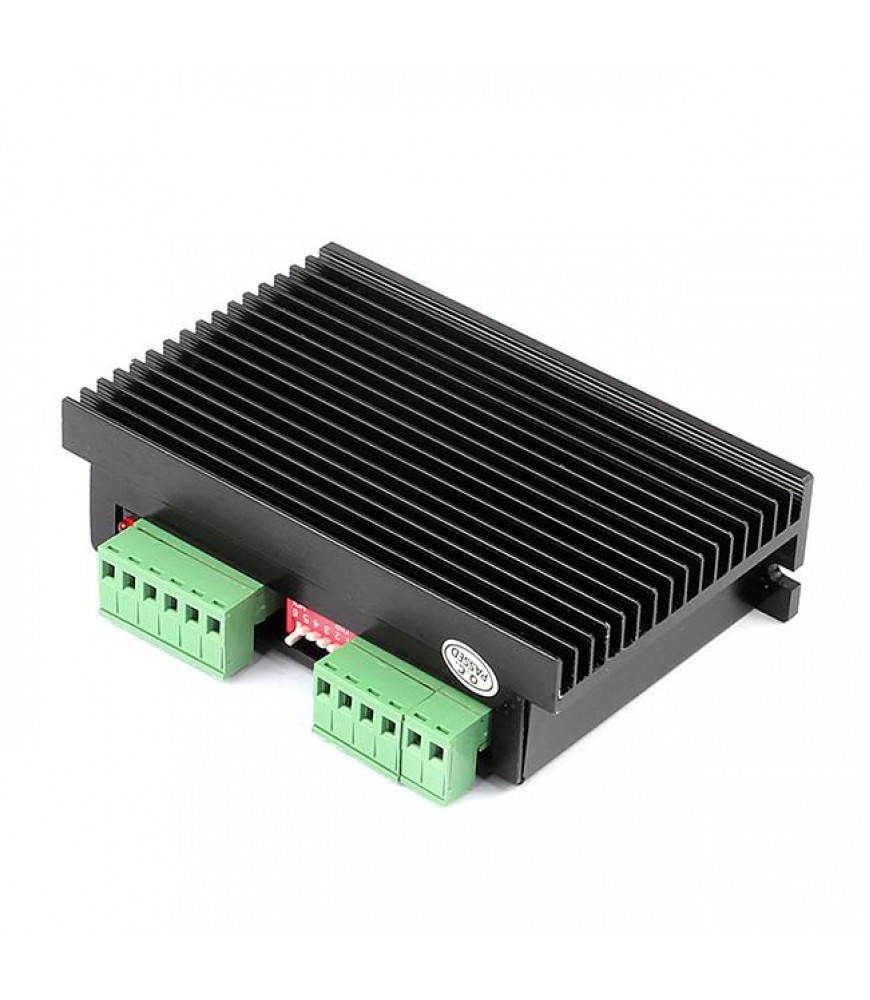

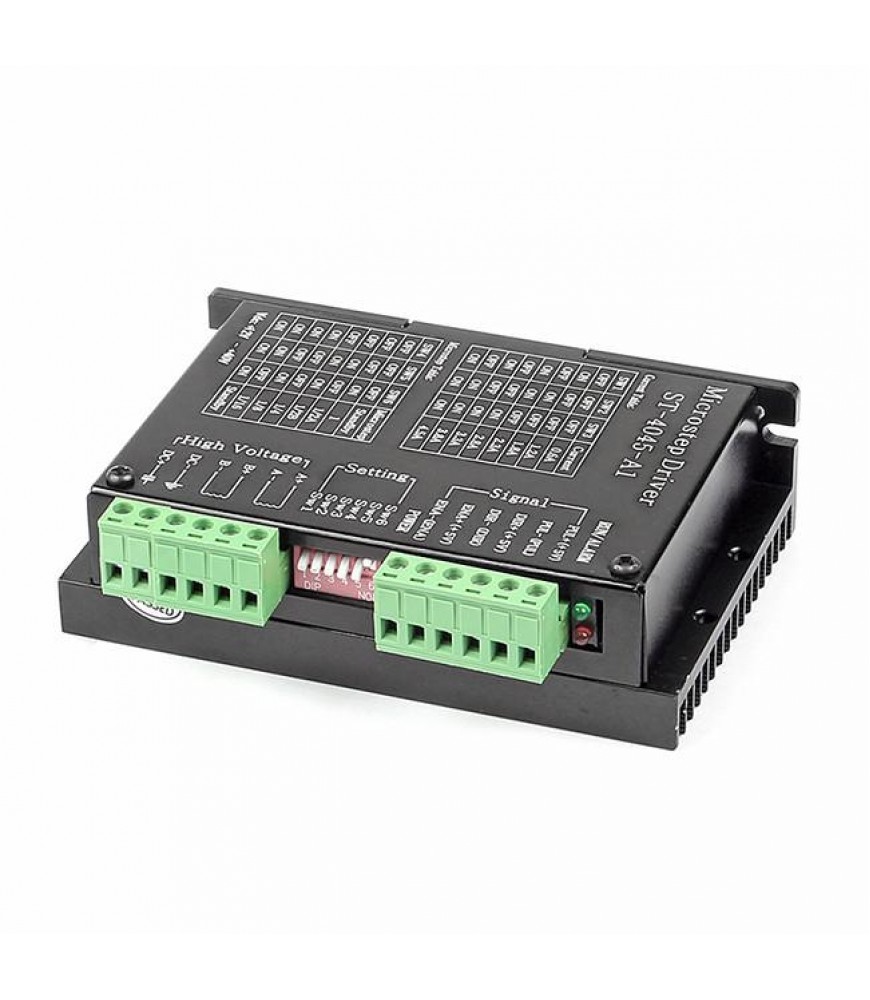

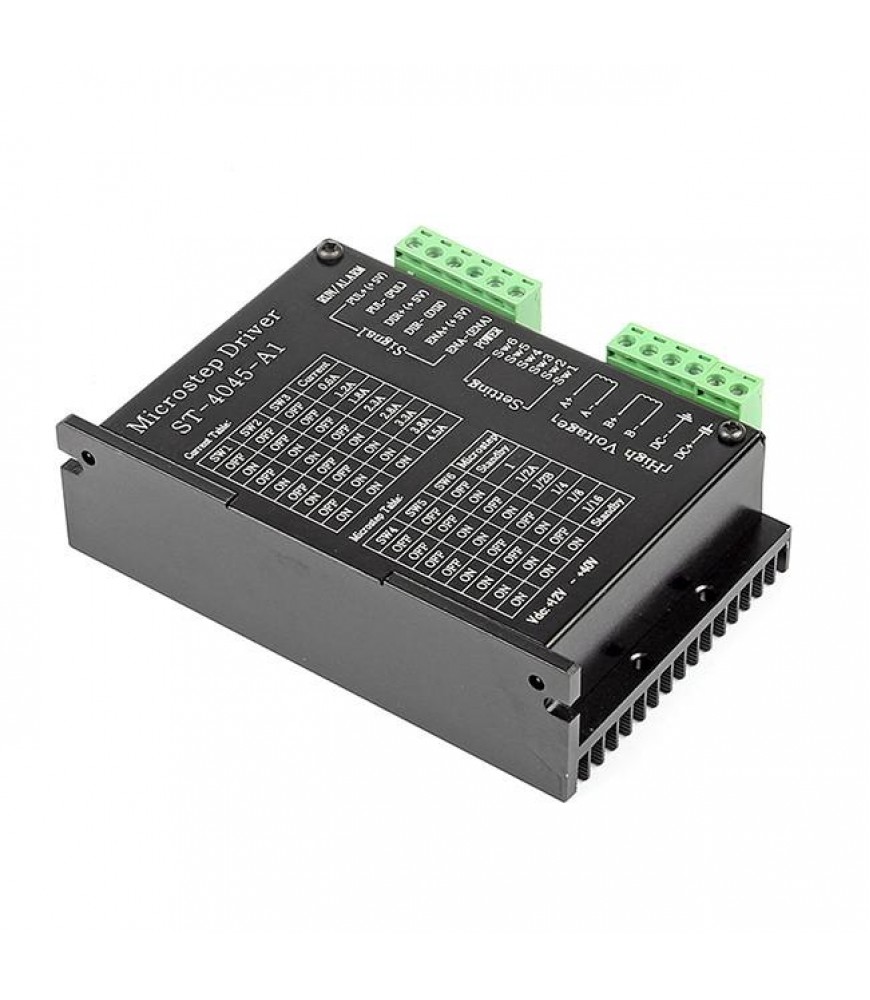

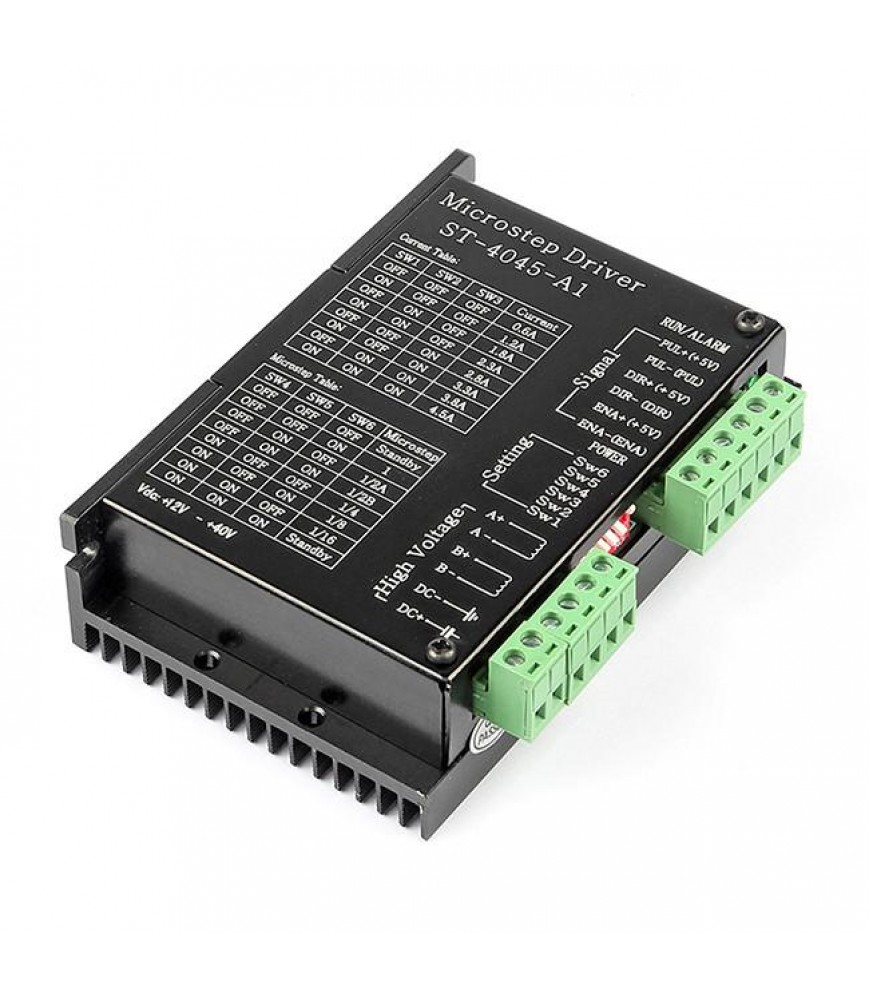

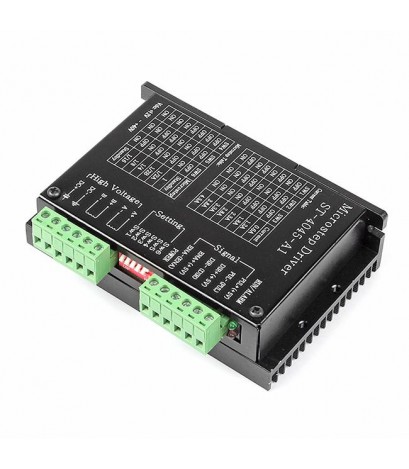

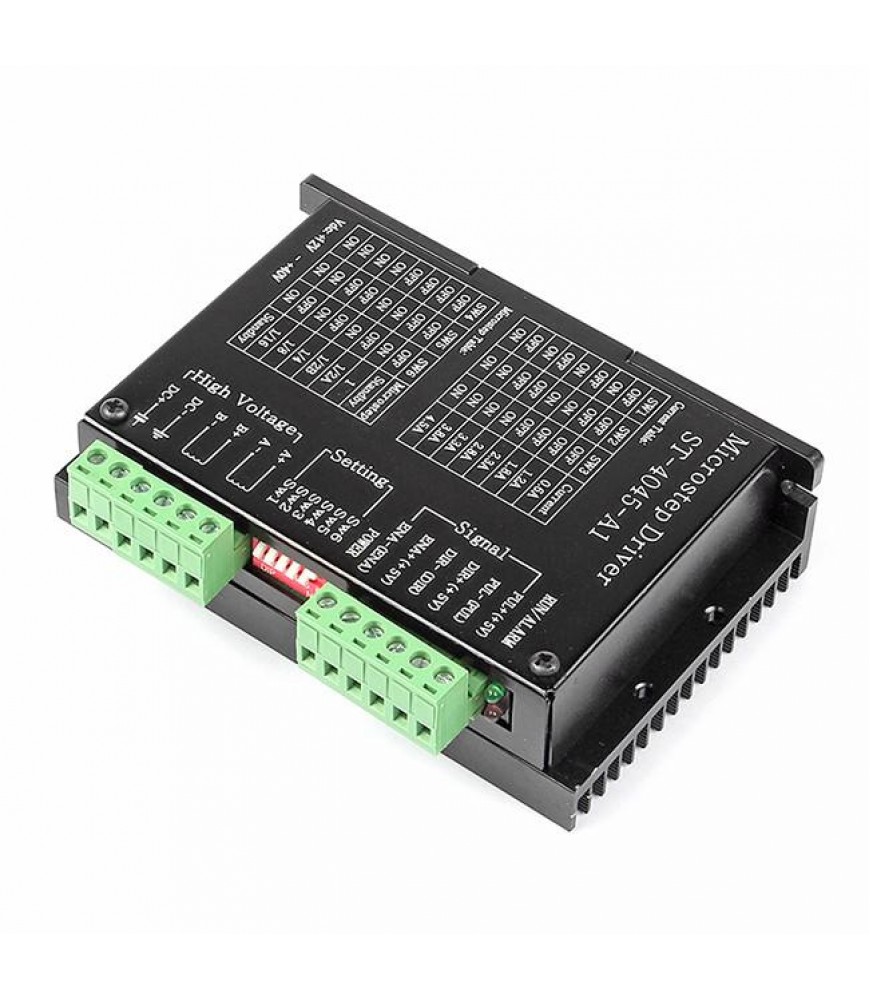

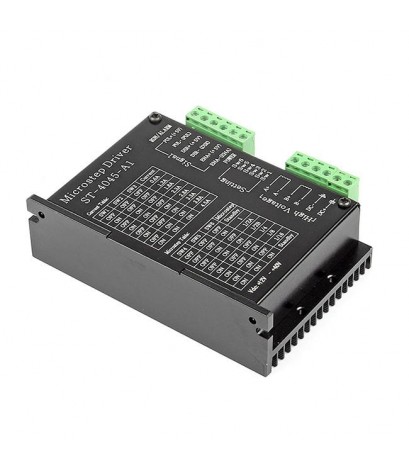

Single-Axis CNC Stepper Motor Driver Controller

Single-Axis CNC Stepper Motor Driver Controller

Single-Axis CNC Stepper Motor Driver Controller

0 reviews Write a review
  • Product Code:101-60-197
  • Availability:In Stock

  • $22.00

  • Ex Tax:$22.00
DESCRIPTION

This drive adopts Toshiba TB6600HG driver chip, which runs smoothly, the motor is locked without noise, and the protection functions such as overcurrent, overheating, reverse connection, freewheeling, etc. Maximum output phase current 4.5A, input voltage 12-40VDC. It is a low-cost, cost-effective driver.

WHAT'S IN THE PACKAGE
  • 1x TB6600 Single Axis CNC Stepper Motor Driver Controller
  • 1x Manual Instruction

I/O Ports:

  • DC+: DC power positive pole
  • Note: Must guard against exceeding 45V, so as not to damage the module.
  • DC-: DC power cathode
  • A+, A-: Stepping motor one winding
  • B+, B-: Stepping motor other winding
  • PUL+, PUL -: Stepping pulse input+5V (Rising edge effective, rising edge duration >10μS)
  • DIR +, DIR-: Stepping motor direction input, voltage level touched off, high level forward, low-level reverse
  • ENA+ ENA-: motor free
  • Typical Connection

Switch Choice:

  • Micro-step choice:
Microstep
Plus/rev.(for 1.8°motor)
SW4
SW5
SW6
Standby
-----
OFF
OFF
OFF
1
200
OFF
OFF
ON
1/2(A)
400
OFF
ON
OFF
1/2(B)
400
OFF
ON
ON
1/4
800
ON
OFF
OFF
1/8
1600
ON
OFF
ON
1/16
3200
ON
ON
OFF
Standby
-----
ON
ON
ON
  • Current choice:
Peak current
SW1
SW2
SW3
0.6A
OFF
OFF
OFF
1.2A
ON
OFF
OFF
1.8A
OFF
ON
OFF
2.3A
ON
ON
OFF
2.8A
OFF
OFF
ON
3.3A
ON
OFF
ON
3.8A
OFF
ON
ON
4.5A
ON
ON
ON

Shell Dimension:
