SPECIFICATION

• Channels: 2 Analog channels
• Interface: USB 2.0
• Output: 1k HZ amplitude 1.5V, 50% duty cycle square wave signal
• Maximum sampling rate: 80 MSps per channel
• Vertical resolution: 8 bit
• Voltage range: ±5v, expandable to ±50v with x10 probe, to ±500v with x100 probe (provided yourself)
• Trigger coupling method: AC, DC
• Timing range: 50ns ~ 2s per line
• Trigger condition: Hardware trigger; Trigger level + rising edge / falling edge trigger
• Trigger mode: Auto, regular, single trigger
• Trigger source: A channel
• Input impedance: 1M / 25pf
• Memory depth: 64k bytes per channel
• Power consumption: < 2 watts
• Supported OS: Windows XP/7/8/10
• Weight: 230g
• Automatic measurement: Maximum, minimum, peak-to-peak, frequency, average, RMS, rise time, positive pulse width, negative pulse width, duty cycle
• Size: 15.25 x 9.32 x 2.31cm

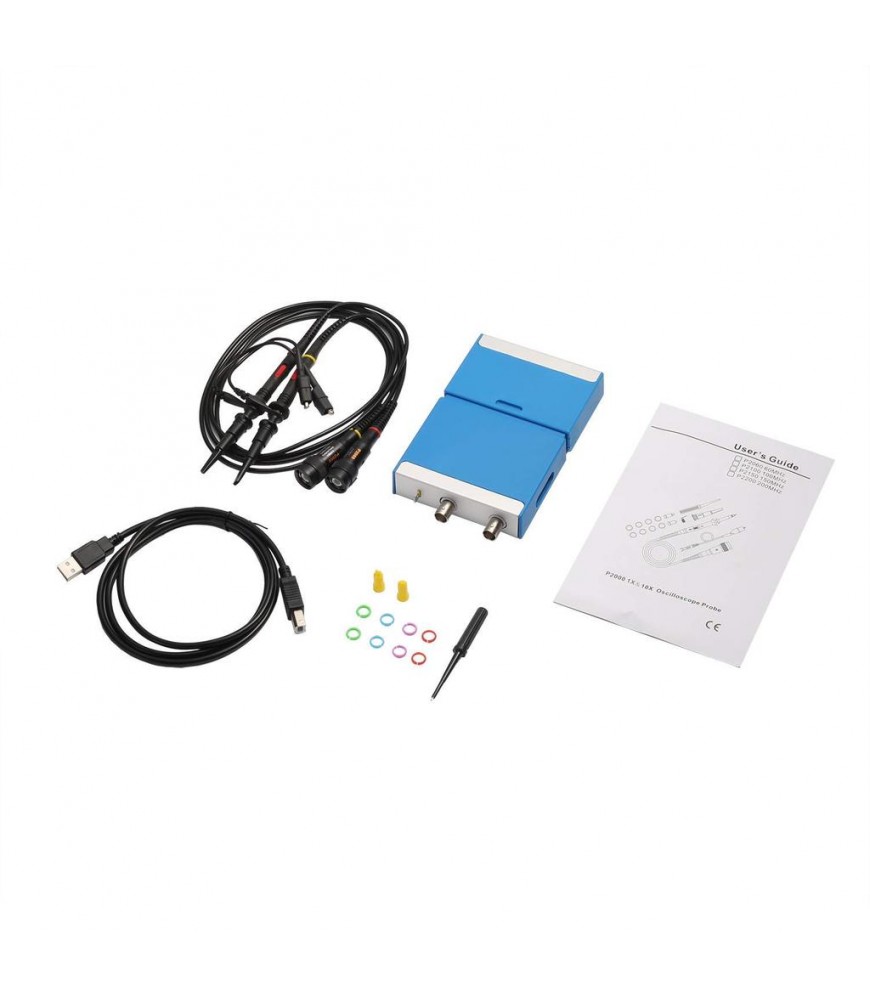

WHAT'S IN THE PACKAGE

• 1 x DS802 PC Oscilloscope
• 1 x USB printer cable (A port to B port)

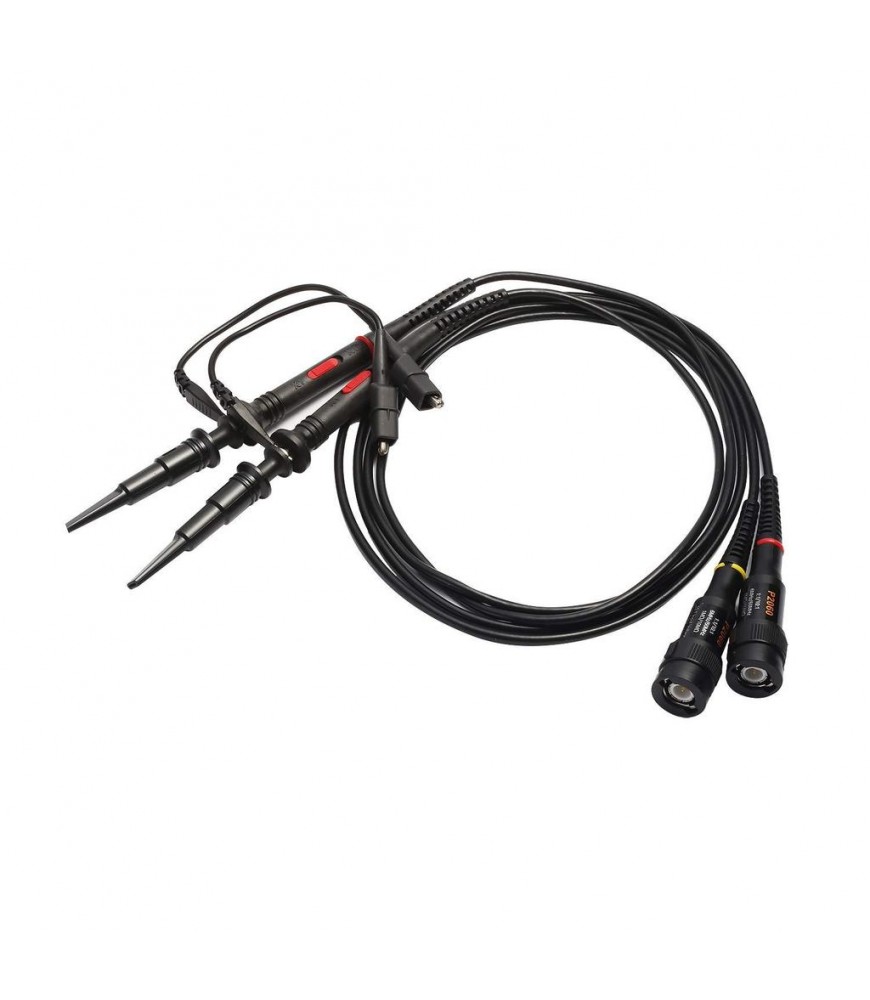

• 2 x Probes
