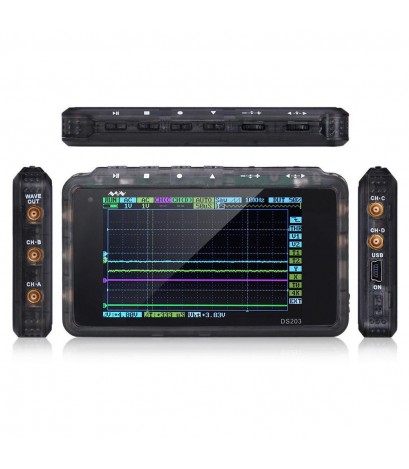

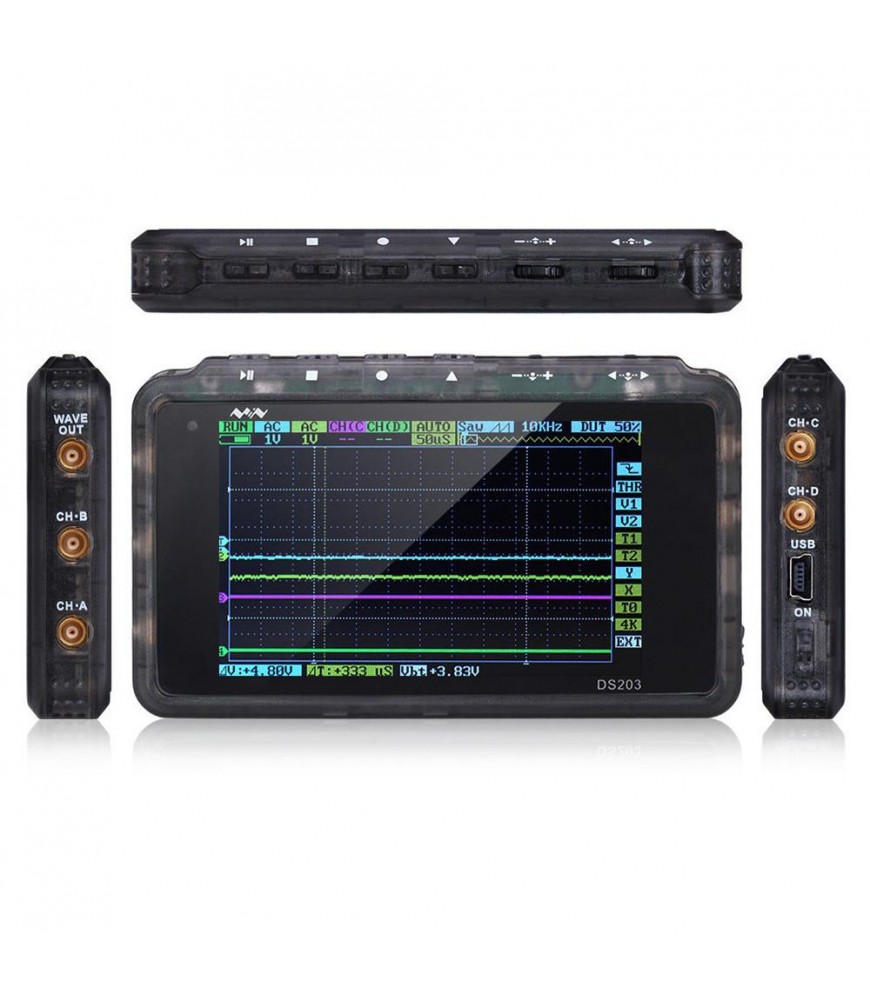

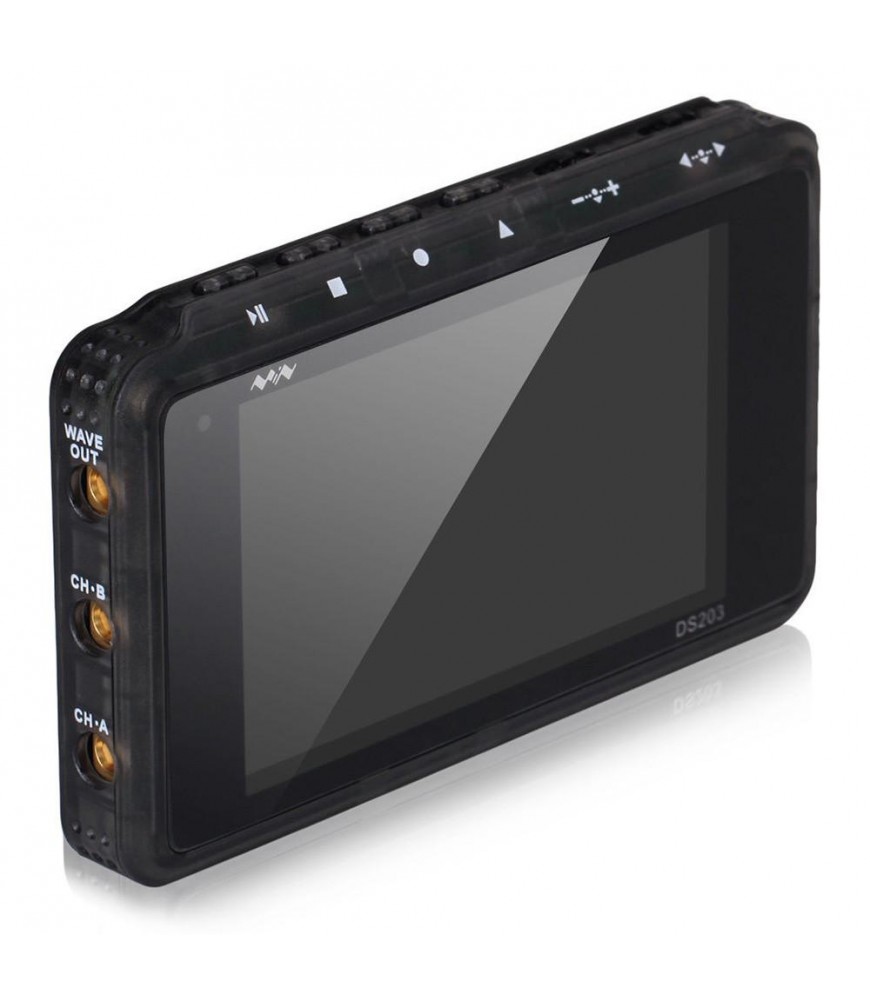

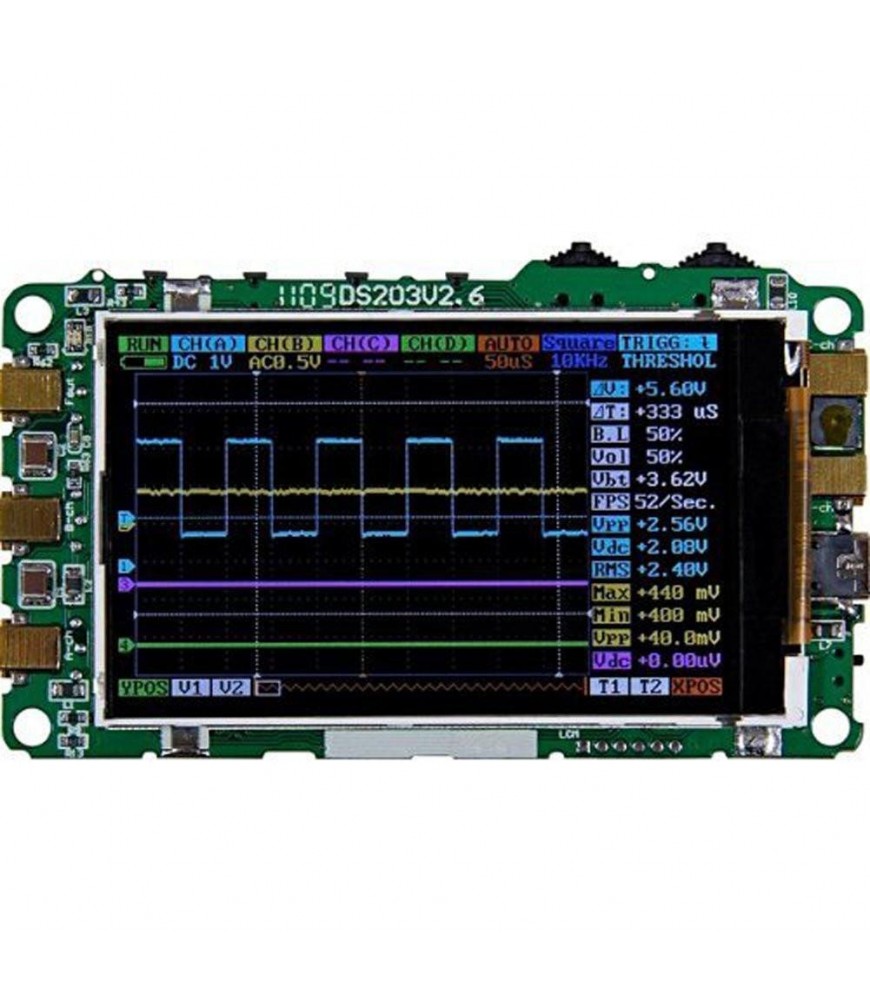

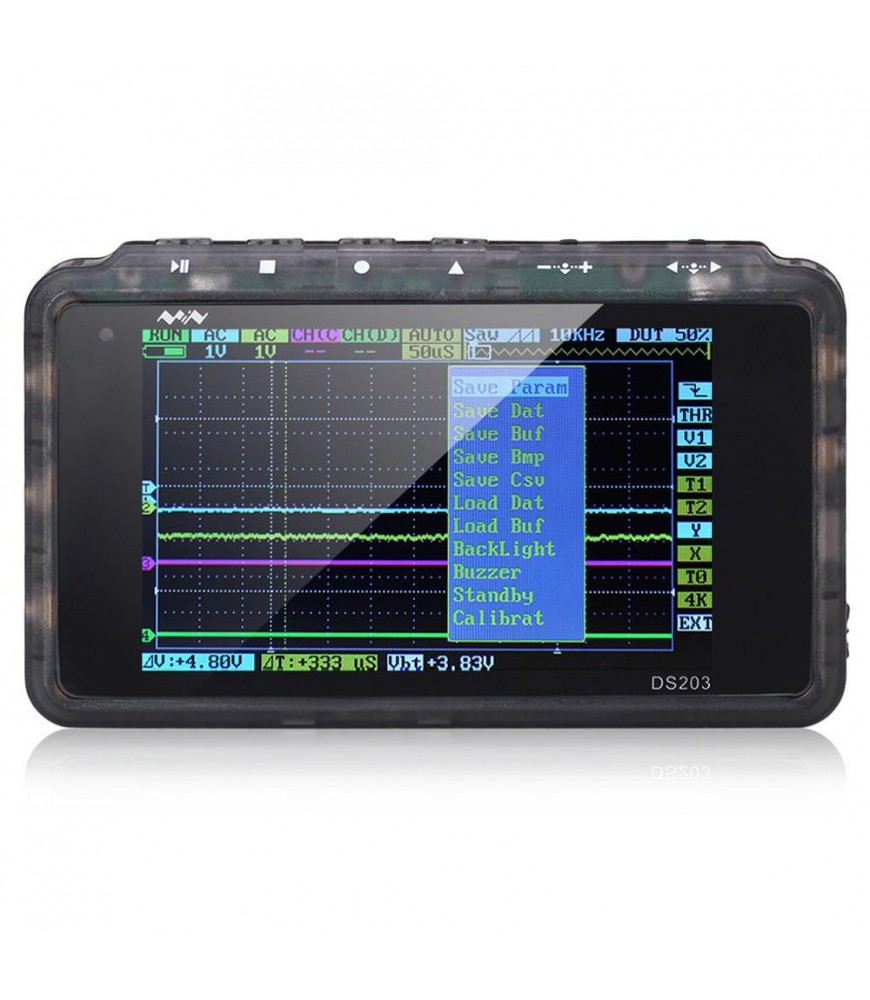

DSO203 4-Ch Handheld Mini Digital Oscilloscope

DSO203 4-Ch Handheld Mini Digital Oscilloscope

DSO203 4-Ch Handheld Mini Digital Oscilloscope

  • Product Code:101-10-101-01
  • Availability:In Stock
  • $154.99

  • Ex Tax:$154.99
DESCRIPTION
DSO203 is based on ARM cortex M3 (STM32F103VCT6) 32 bits platform, providing 72MS/s sampling rate with integrated FPGA and high-speed ADC. Internal 8MB USB disk could be used to store waveform, user application and upgrade firmware.

Note: Due to the metal conductive shell of DSO 203, its operating voltage should be controlled under 40V during working in case of any damage to the Quad itself or human

DSO Series:

ModelDSO Nano (DSO211)DSO Note II (DSO202)DSO 212DSO Quad (DSO203)
MCUSTM32F103VCSTM32F303VCSTM32F303VCSTM32F103VE
ADCMCU internal ADCMCU internal ADCMCU internal ADCAD9288
ChannelsAnalog channel 1 + 1 internal channel2 analog2 analog2 analog, 2 digital
Analog Bandwidth200KHz1MHz1MHz8MHz
Max Sample Rate1MSa/s10MSa/s10MSa/s72MSa/s
Maximum Memory Depth8K8K8K4K
Horizontal Sensitivity1uS/Div~2S/Div(1-2-5sequence step)1uS/Div~2S/Div(1-2-5sequence step)1uS/Div~2S/Div(1-2-5sequence step)0.1uS/Div~1S/Div(1-2-5sequence step)
Vertical Sensitivity20mv/Div~10V/Div(1-2-5sequence step)20mv/Div~10V/Div(1-2-5sequence step)20mv/Div~10V/Div(1-2-5sequence step)50mv/Div~10V/Div(1-2-5sequence step)
Input Resistance1MΩ1MΩ1MΩ1MΩ
CouplingDC / ACDC / ACDC / ACDC / AC
Auto Adjustment ModeAUTO_FITAUTO_FITAUTO_FITNO
Calculation Waveforms-A, RecA, A + RecA-A,-B,A+B,A-B RecA,RecB,RecC-A,-B,A+B,A-B RecA,RecB,RecC-A,-B,A+B,A-B RecA,RecB,RecC
Storage 8MB USB flash disk memory 8MB USB flash disk memory 8MB USB flash disk memory 8MB USB flash disk memory
APP Installed1224
Operationbuttonsbutton,touch areabuttons,scrollersbuttons,scrollers
USB InterfaceMicro USBMicro USBMicro USBMini USB
Battery500mAh500mAh500mAh1000mAh
Screen Size2.8inch2.8inch2.8inch3.0inch
Screen Resolution320 × 240320 × 240320 × 240400 × 240
Open SourceApplication layer Open-Source

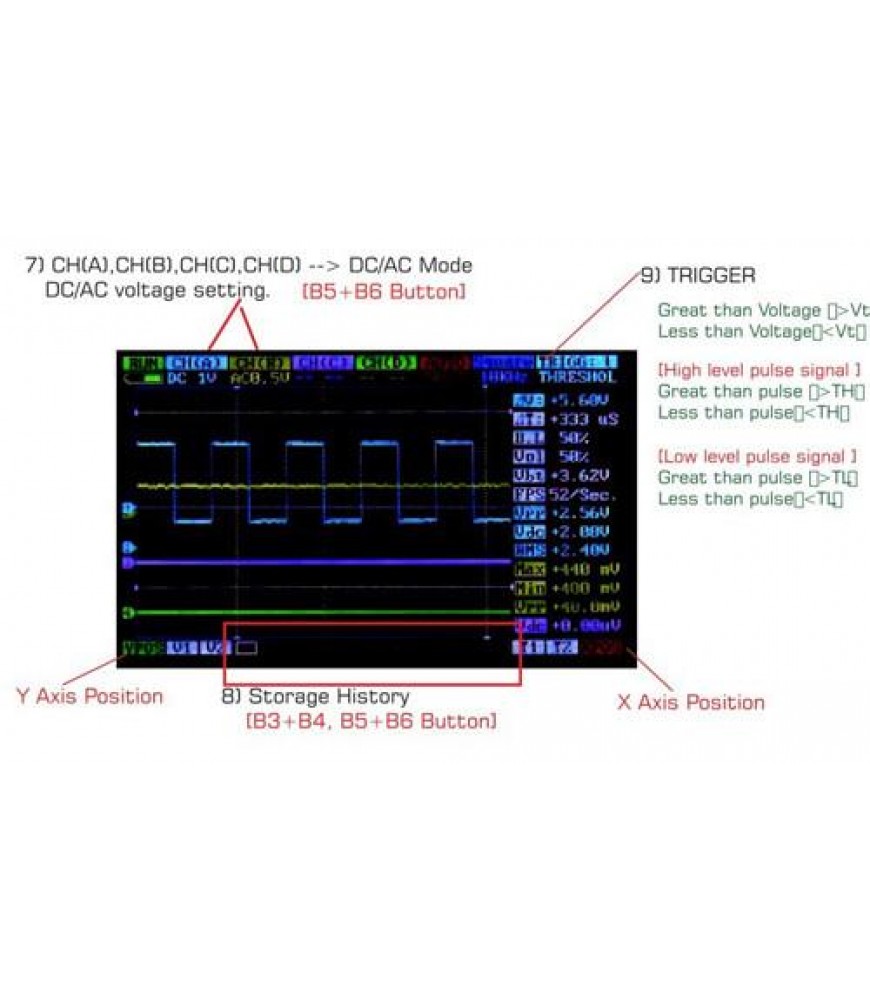

Quick Starter guide

DSO 203 Instruction for beginners

SPECIFICATION
  1. Analog channel * 2 : [CH_A] [CH_B] ;
  2. Digital channel * 2 : [CH_C] [CH_D] ;
  3. Vertical Scale: 20mV-10V/div (1-2-5 step) on x1 probe; 200mV -100V/div (1-2-5 step) on x10 probe
  4. Vertical solution: 8 - bit ;
  5. Input coupling: AC/DC ;
  6. Max input voltage: 80Vpp (x1 probe) / 400Vpp (x10 probe);
  7. Storage: 4K per channel
  8. Software trigger type: edge, pulse, level (to be added)
  9. Hardware trigger type: edge
  10. Trigger source: CH1/CH2/EXT
  11. Test Signal generator: 10Hz to 1Mhz
  12. Storage: internal 8MB USB disk
  13. Auto measure: Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty
  14. Cursor measurement: Level, Voltage
  15. Display mode: CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2
  16. Sampling mode: real time
  17. Sampling rate: 1KSa/s - 72MSa/S
  18. Power: Li-ion battery
  19. Dimension: 98 x 60 x 14.5 mm 3.9 x 2.4 x 0.6 inch
  20. Weight: 80g (without battery)

WHAT'S IN THE PACKAGE
  • DSO203/Quad with battery ×1
  • X10 Probe Analyzer ×1
  • X1 Probe Analyzer ×1
  • Safety Instructions ×1
  • Hex Key ×1

EAN: 6955170801268 101-10-101

EAN:6955170801275 101-10-102
