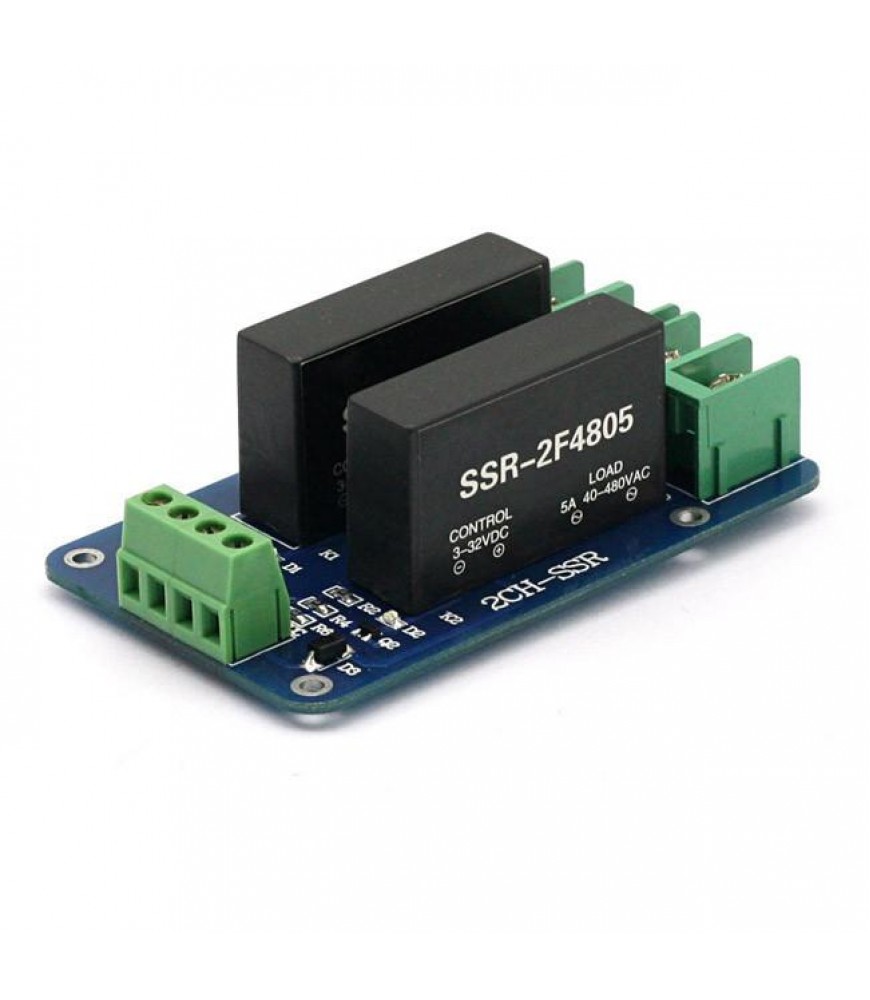

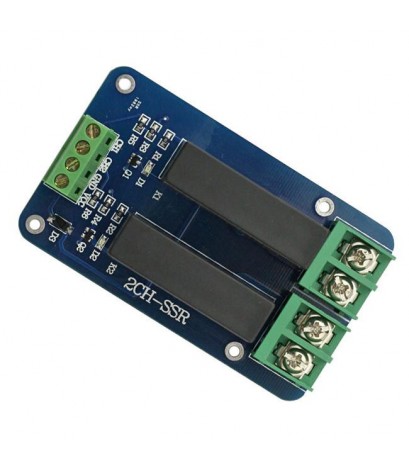

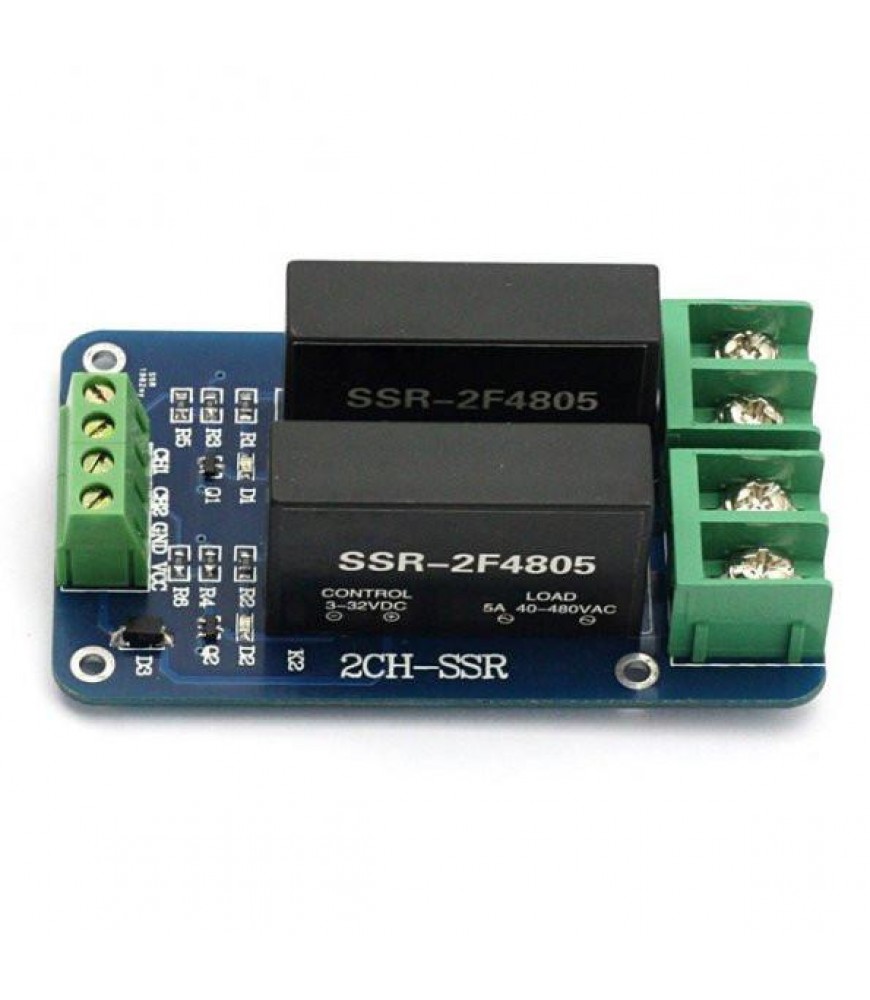

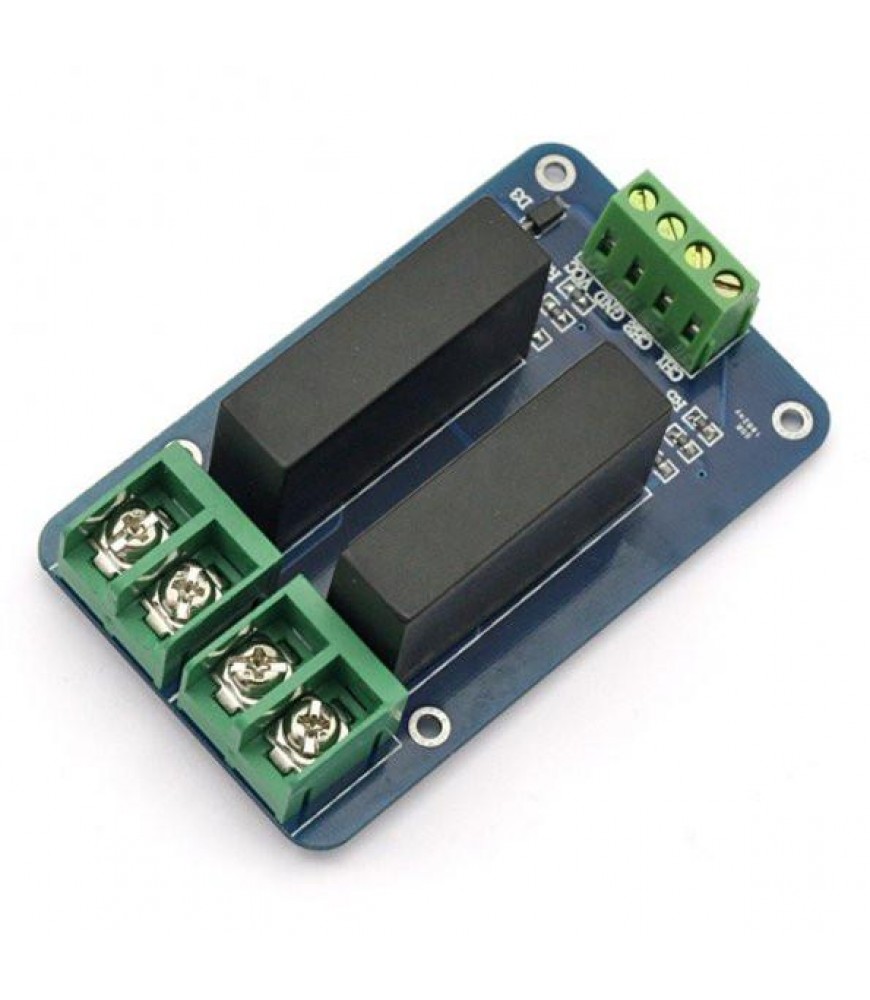

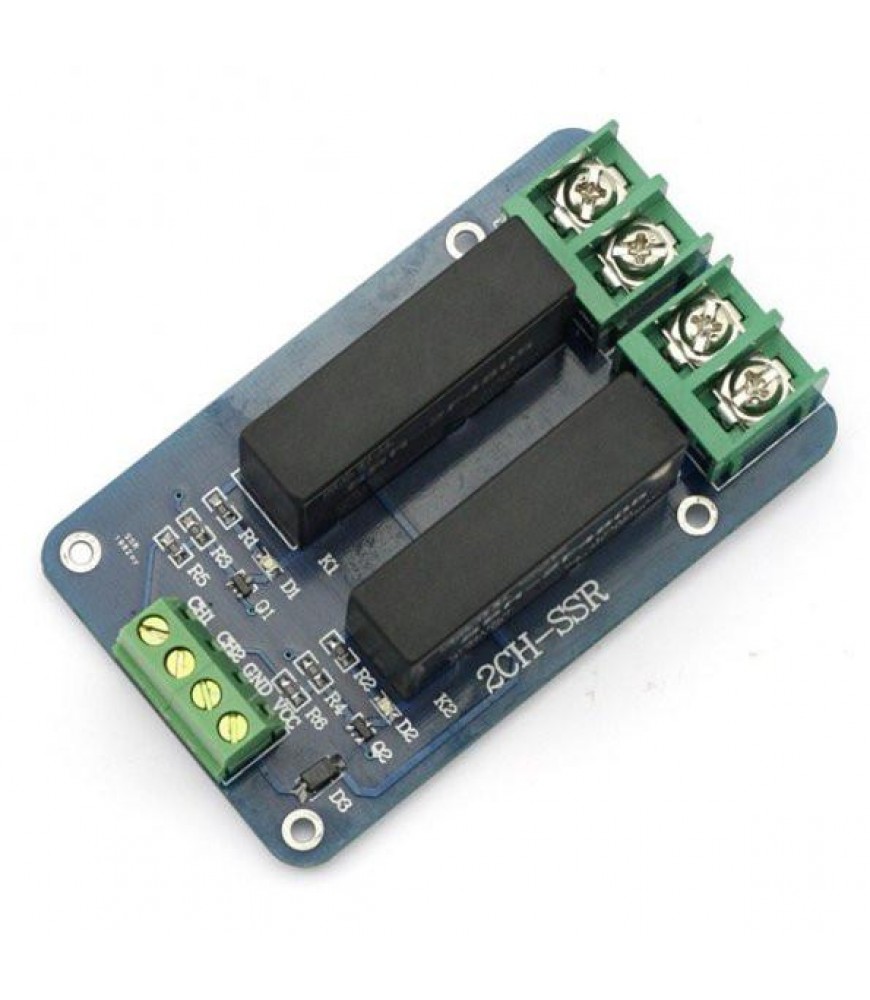

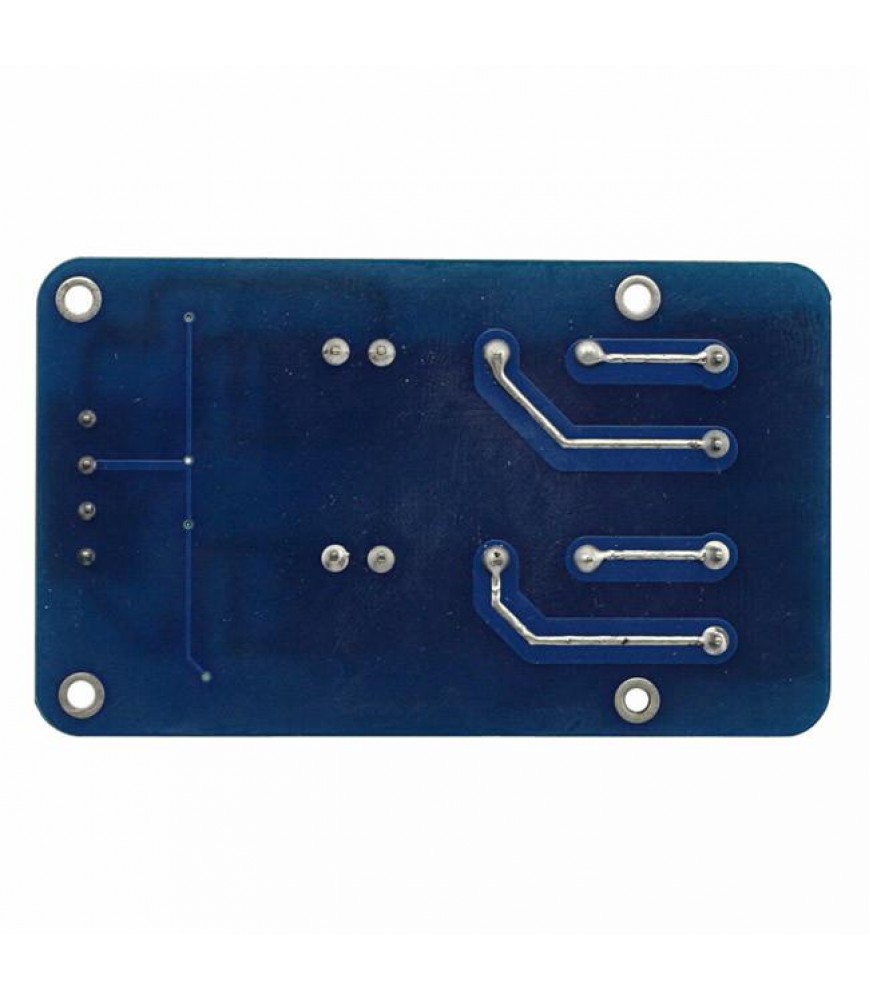

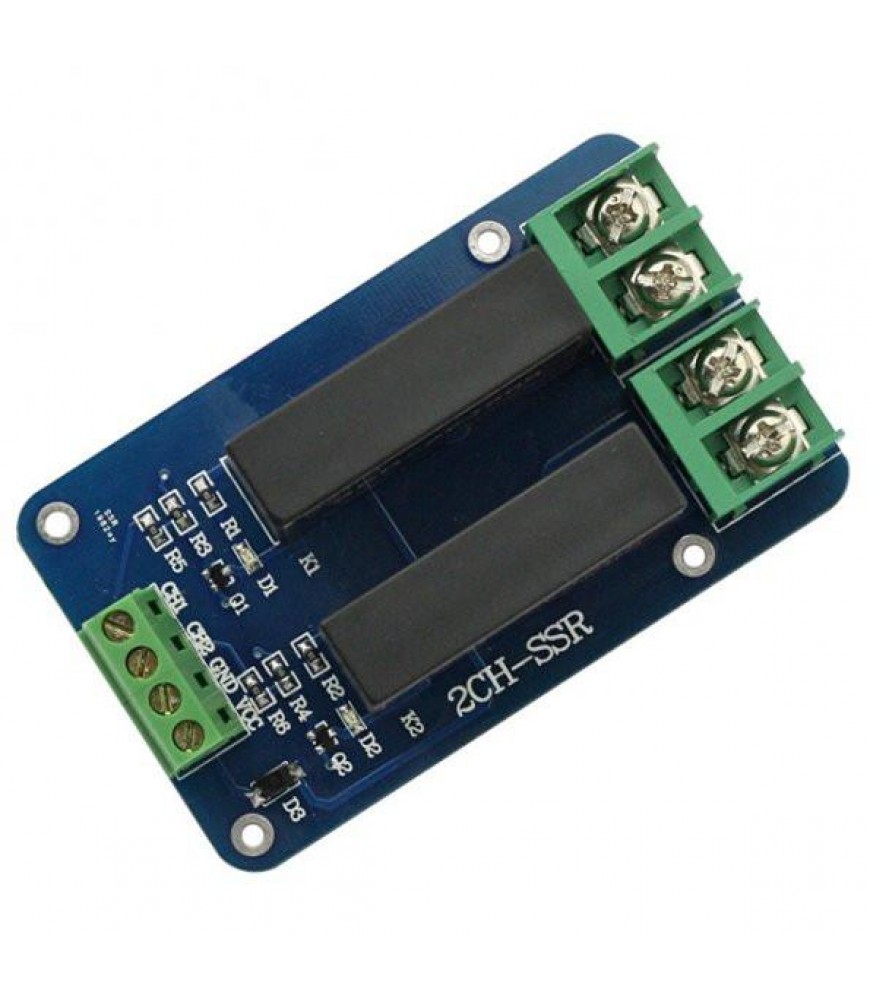

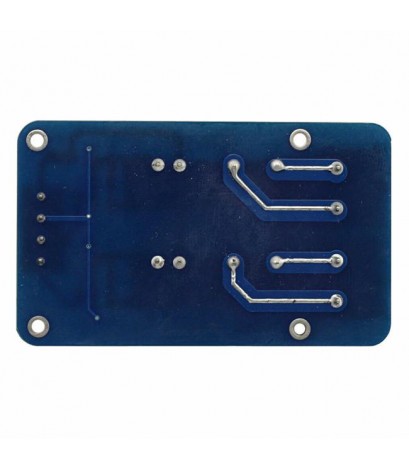

2-Channel 3V-32V Solid State Relay

2-Channel 3V-32V Solid State Relay

2-Channel 3V-32V Solid State Relay

  • Product Code:101-70-115
  • Availability:In Stock
  • $12.99

  • Ex Tax:$12.99
SPECIFICATION
  • The photoelectric isolation
  • The4000V dielectric withstanding voltage
  • The zero or random conducting switch
  • The PCB type installation
  • The SCR output
  • Have extremely high surge current capability
  • Built in RC absorption circuit
  • It can provide LED indicate the working state of products
  • Environmental friendly ( in line with the ROHS requirements )
  • Input ( control ) parameters ( TA=25 )
  • Input voltage range ( DC )3-32VDC
  • Ensure that the turn-on voltage ( DC )3.0VDC
  • Ensure that the turn-off voltage ( DC )1.0VDC
  • Input current ( typical)18Ma
  • Input current ( max)25mA
  • Reverse polarity voltage ( DC ) -32VDC
  • Output ( load ) parameters ( TA=2 )
  • Output voltage range: 40~480VAC
  • Maximum transient voltage: 800Vpk
  • Maximum output current : 1Maa€ /span>
  • Maximum output voltage:1.5Vrms;
  • Maximum load current: 5A
  • Maximum surge current (10ms ): Rated current of 20 times
  • The minimum power factor: 0.5;
  • Minimum working current:50MA
