SPECIFICATION

• Power supply: 5V DC (160mA)
• Input control signal voltage: (0-0.5V low stage SSR is OFF) (2.5-20V high stage SSR is ON)
• SSR Output (each channel):
• Load voltage range: 75 to 264VAC (50/60Hz).
• Load current: 0. 1 to 2 AMP.
• Power supply: 5VDC / 160mA (all channel ON).
• Input control signal voltage: 0V - 0. 5V
• Low stage (SSR is OFF): 0.5V-2.5V.
• 2. 5V - 20V High state (SSR is ON)

Use it to control various appliances, and other equipments with large current.
It can be controlled directly by Microcontroller (Arduino , Raspberry Pi, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

WHAT'S IN THE PACKAGE

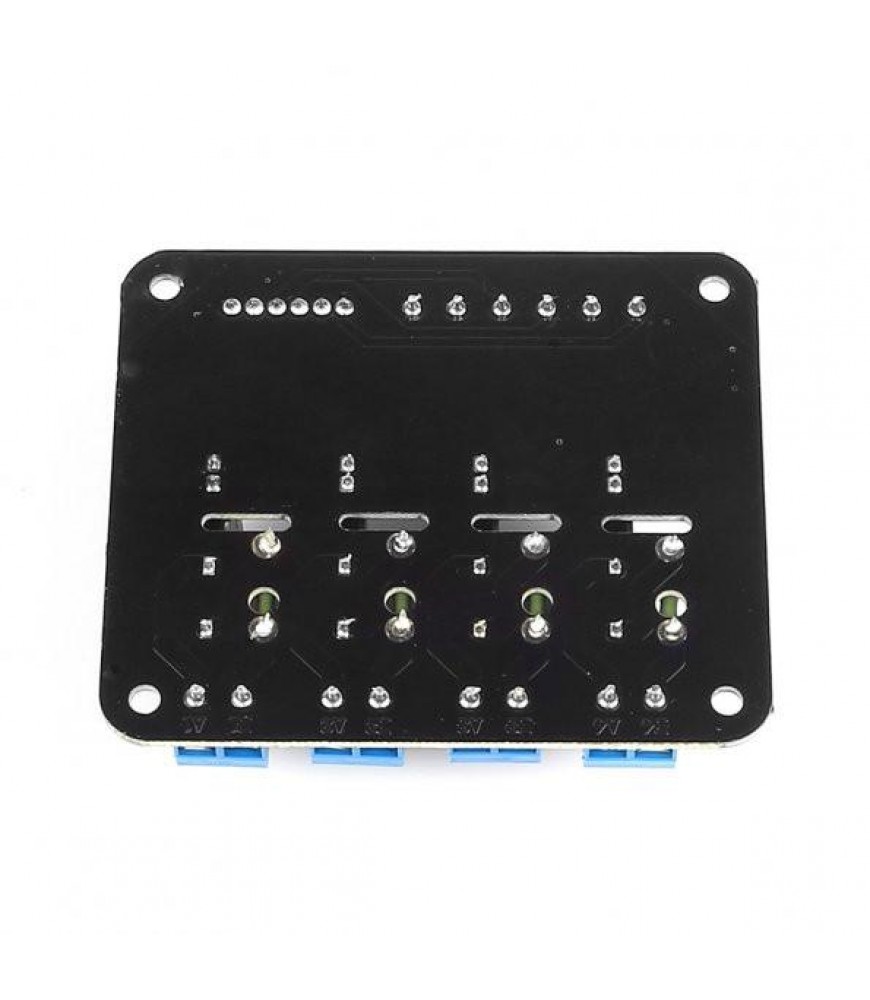

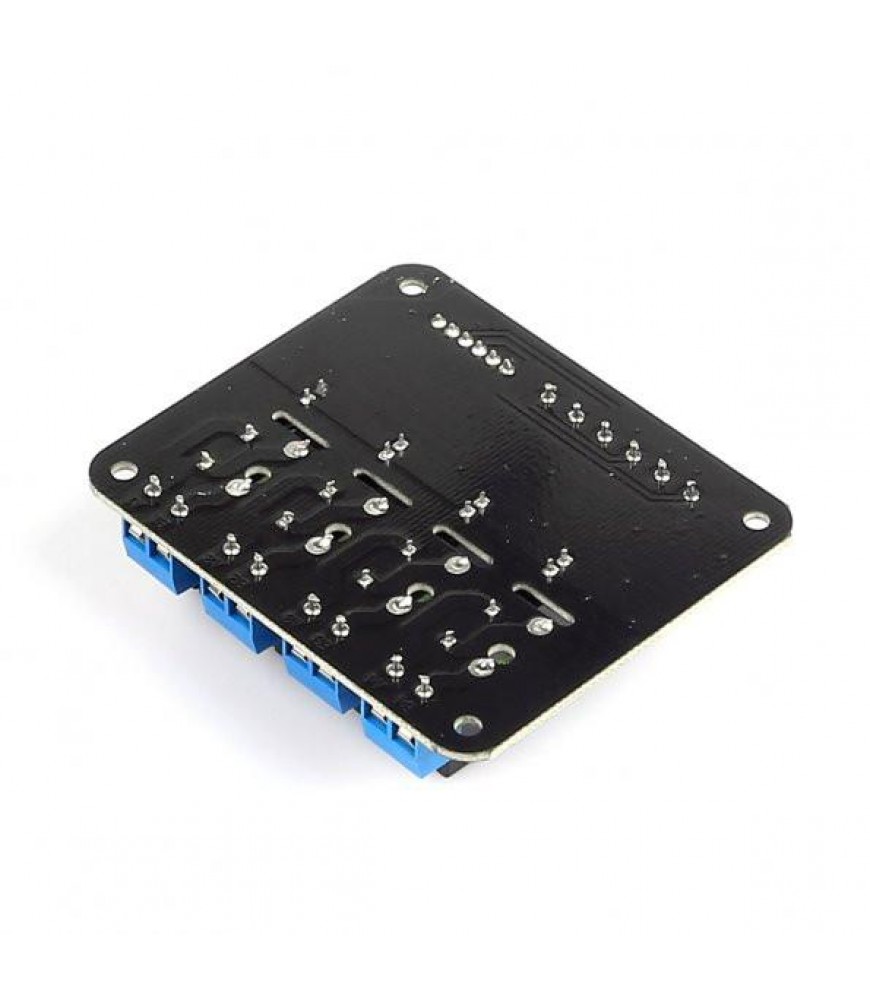

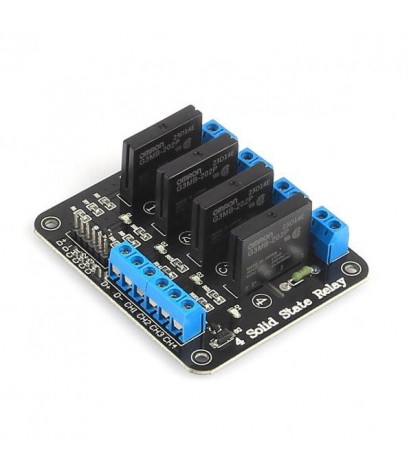

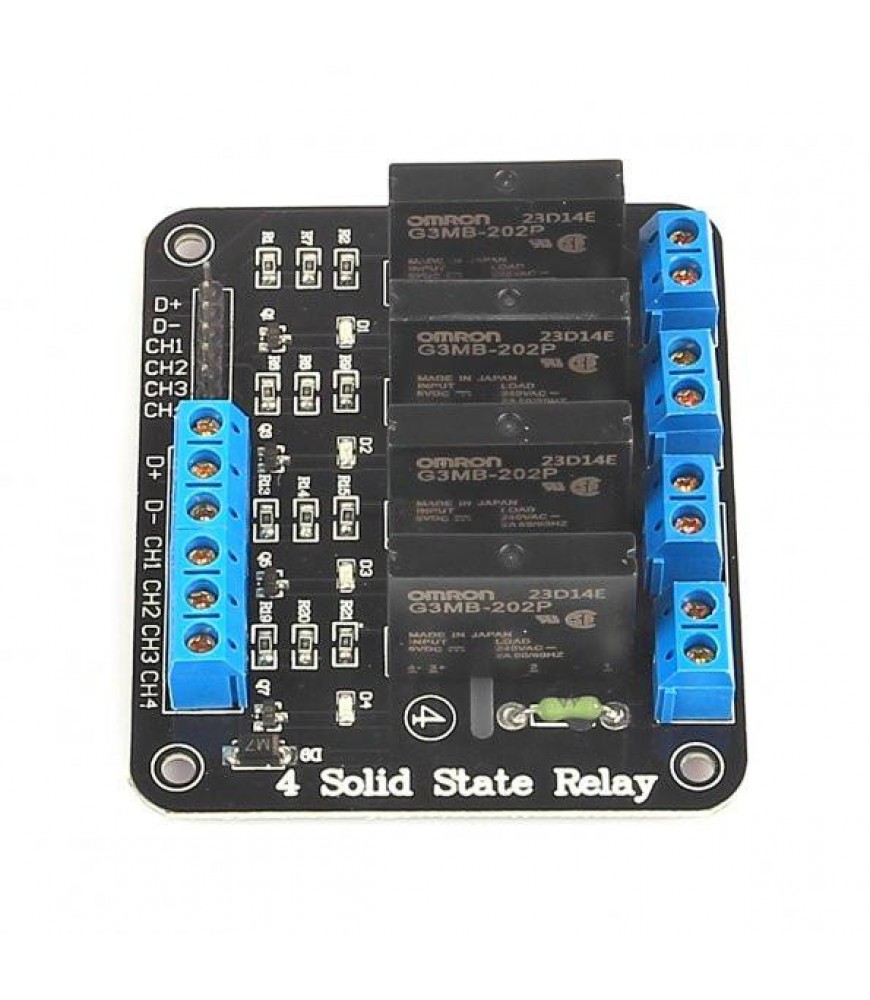

• 1x 5V 2A 4-Channel SSR Solid-State Relay Module
