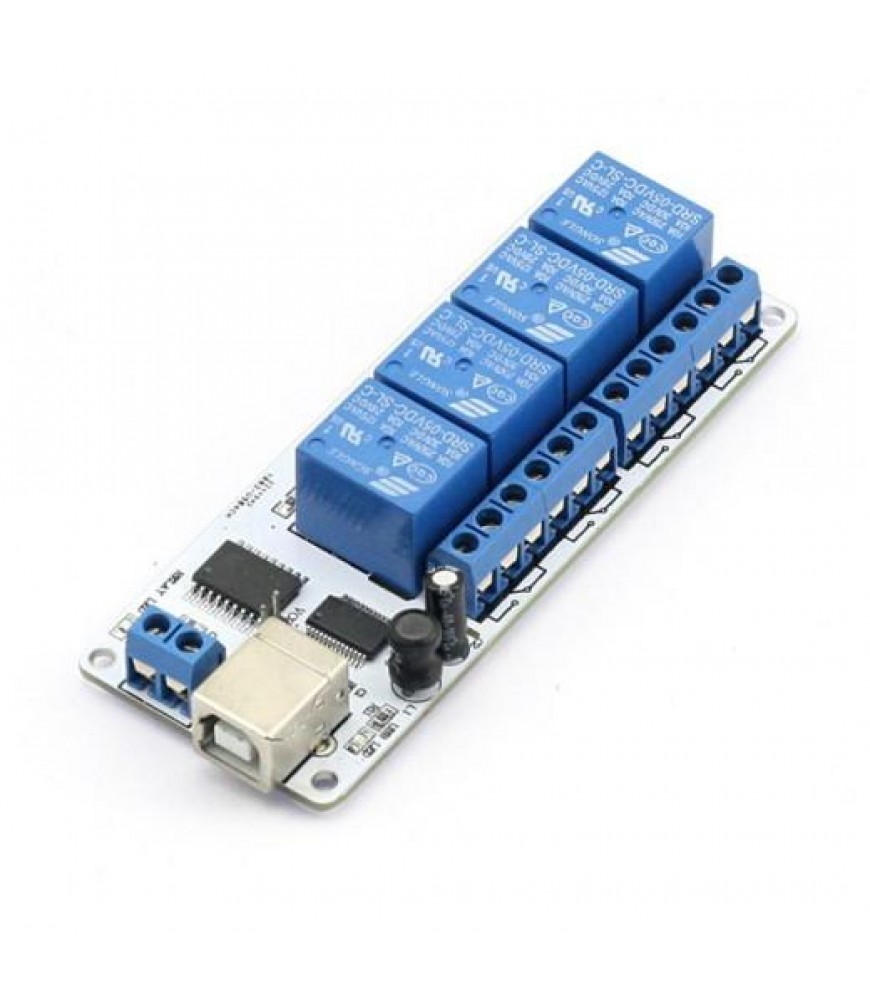

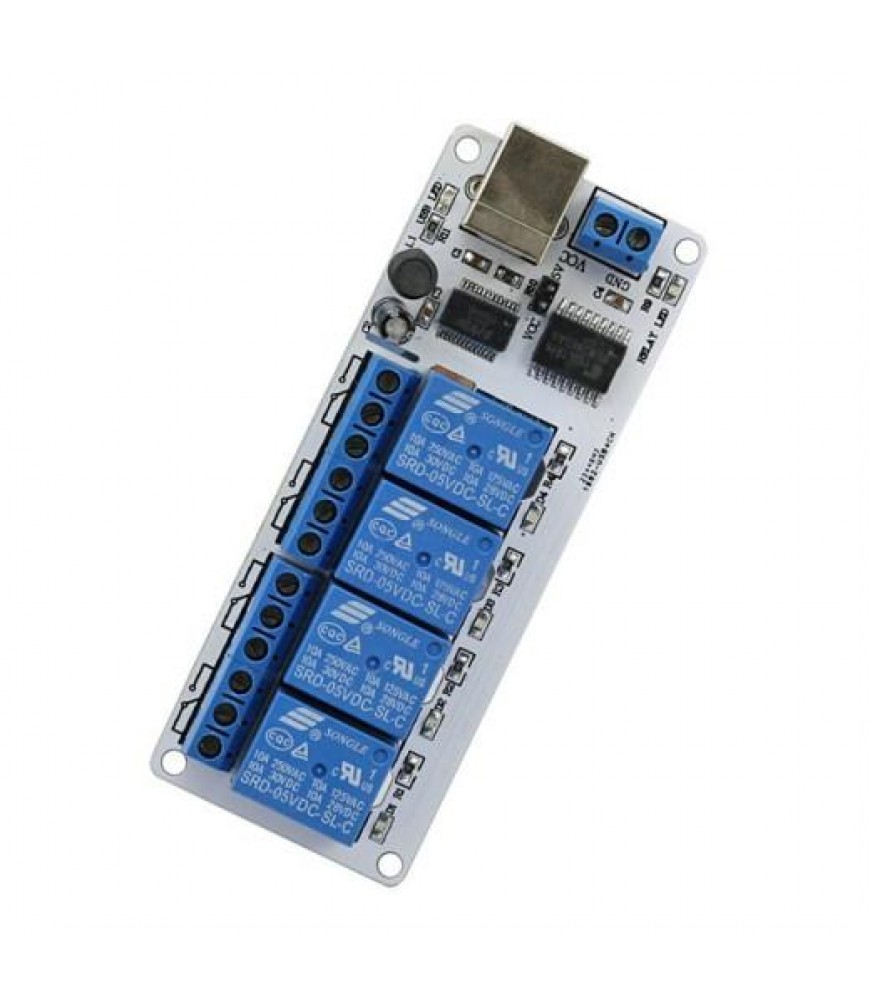

4-channel 5V USB Relay Module

4-channel 5V USB Relay Module

4-channel 5V USB Relay Module

0 reviews Write a review
  • Product Code:101-70-118
  • Availability:In Stock

  • $18.99

  • Ex Tax:$18.99
SPECIFICATION
  • 4 SPDT relays SRD-5VDC-SL-C
  • Relay specification: 10A 250VAC/10A 125VAC/10A 30VDC /10A 28VDC
  • Power Supply - 5 VDC
  • Current consumption - 200 mA
  • FT245RL. Datasheet (http://www.ftdichip.com/)
  • Led for each relay output
  • Power Led
  • USb led
  • Size - 101*40*16mm

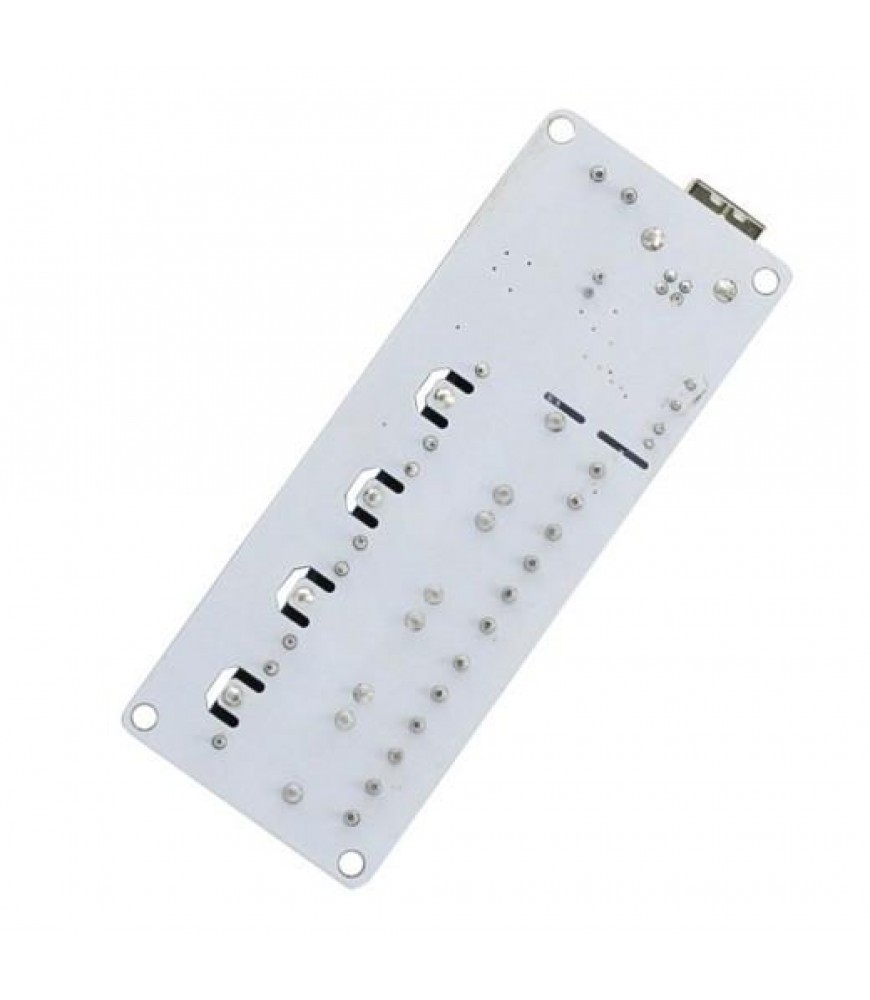

  • PCB parameters: FR4 / 1.5mm / two layers / metalized holes / HAL / white stamp / solder mask
  • Extra PCB openings for better voltage isolation
  • Doubled high current tracks

Supply Characteristics:

Type SRD-5VDC-SL-C
Recommend voltage VDC5
Voltage limitsIncluding rippleVDC4...7
Nominal input currentVoltage 5VDCmA300
Power dissipatedWhen all relays are ONW3.6
ProtectionAgainst reverse polarity None

Relay output:

Type 12V-T73-USB
Relay type T73
Relay outputs count 4
Contact type NO, NC
Current consumption5VDCmA30
Switching parameters
220VAC
125 VAC / 28 VDC
250 VAC
A
A
A
10
10
10

Notice:

  • When the board is connected to the PC and the PC is restarted, the relays will be toggled several times. This is because of the structure of the FTDI chip.
  • The device must be supplied with 5 VDC or order to work.
  • There is no protection against reversed voltage! If the VCC(+5V) and GND are reversed the board will be damaged!
  • The board can not work without computer
