OVERVIEW

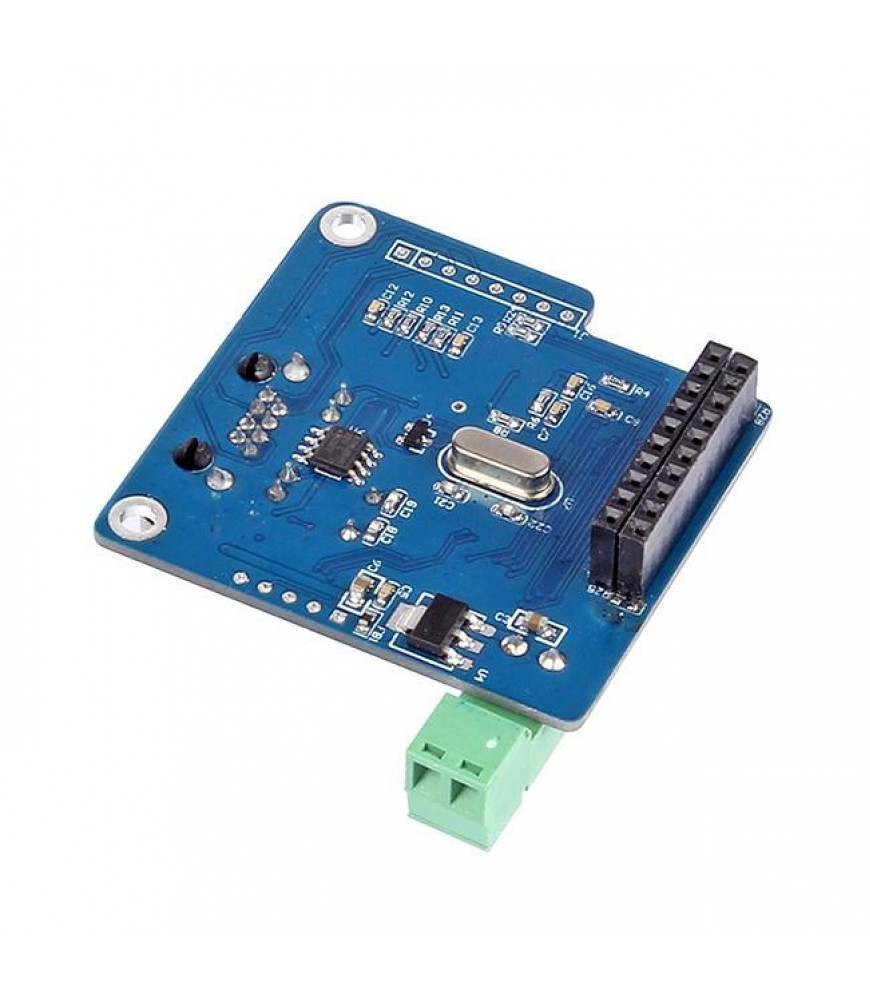

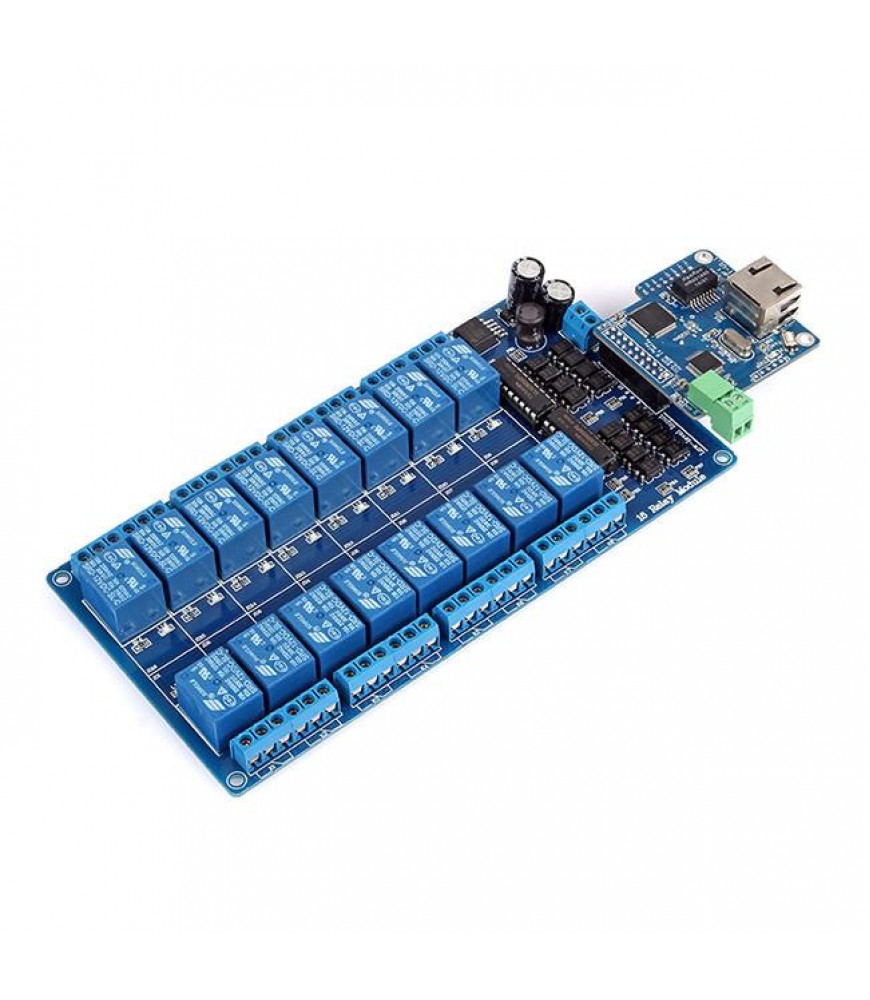

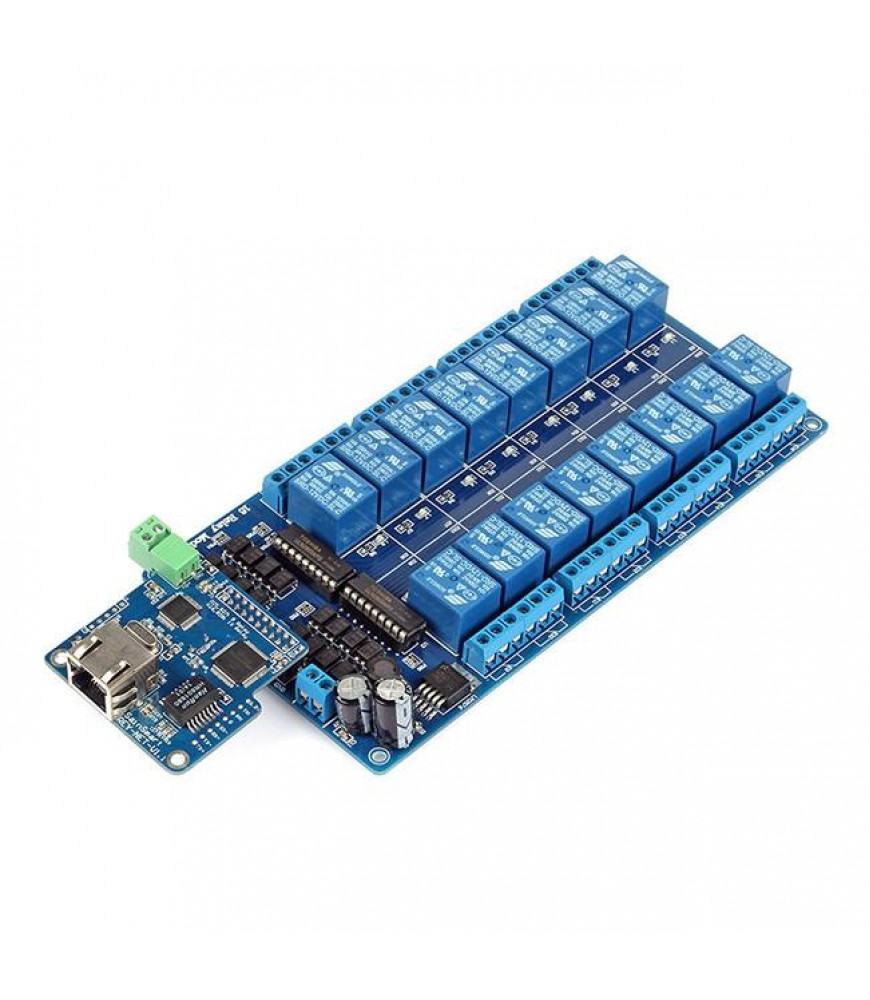

This is iMatic with RJ45 remote control 16 channels WiFi relay model. It works with the 16 channel relay to help you realize controlling your other devices remotely.This Model helps you to avoid complicated wiring processes and save you much time to accomplish your goal. You can feel free to enjoy the remote controlling of your other devices with the 16 channel relay by using our codes and App.
Please note that the iMatic with RJ45 remote control 16 channels WiFi relay model with the fixed IP of 192.168.1.4. You must to modify the gateway address, AKA the router IP address, to be 192.168.1.1..
16 Channel Relay:

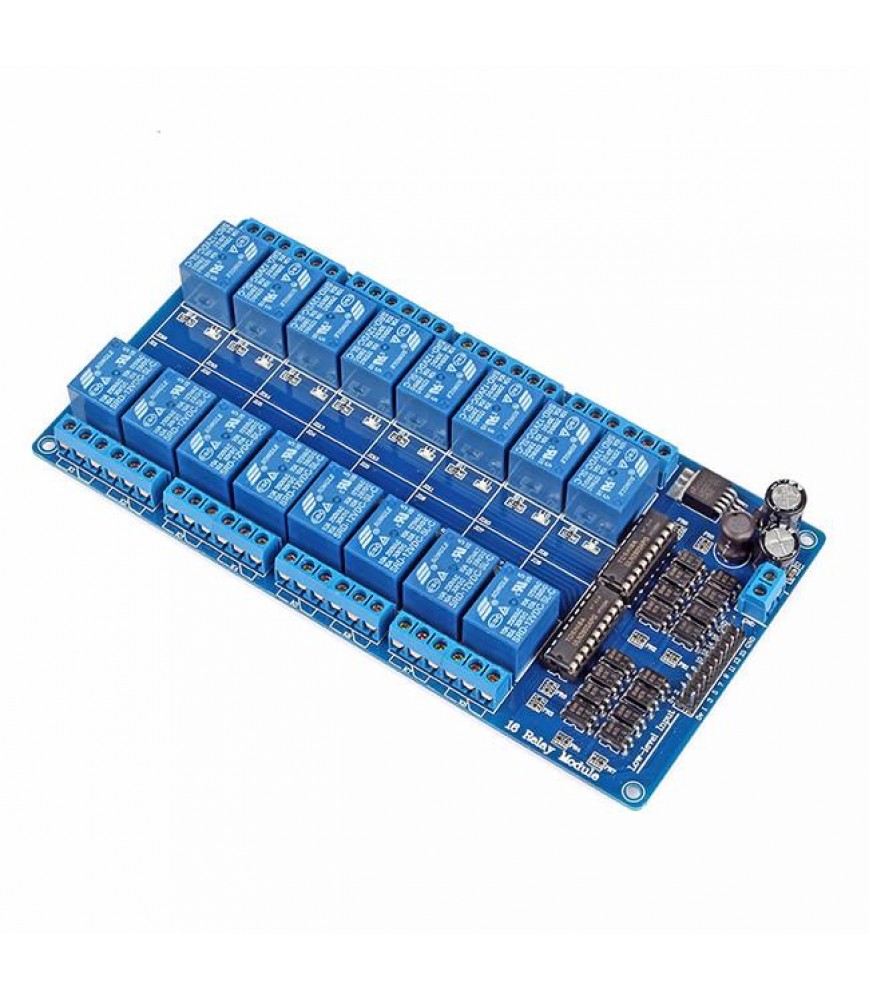

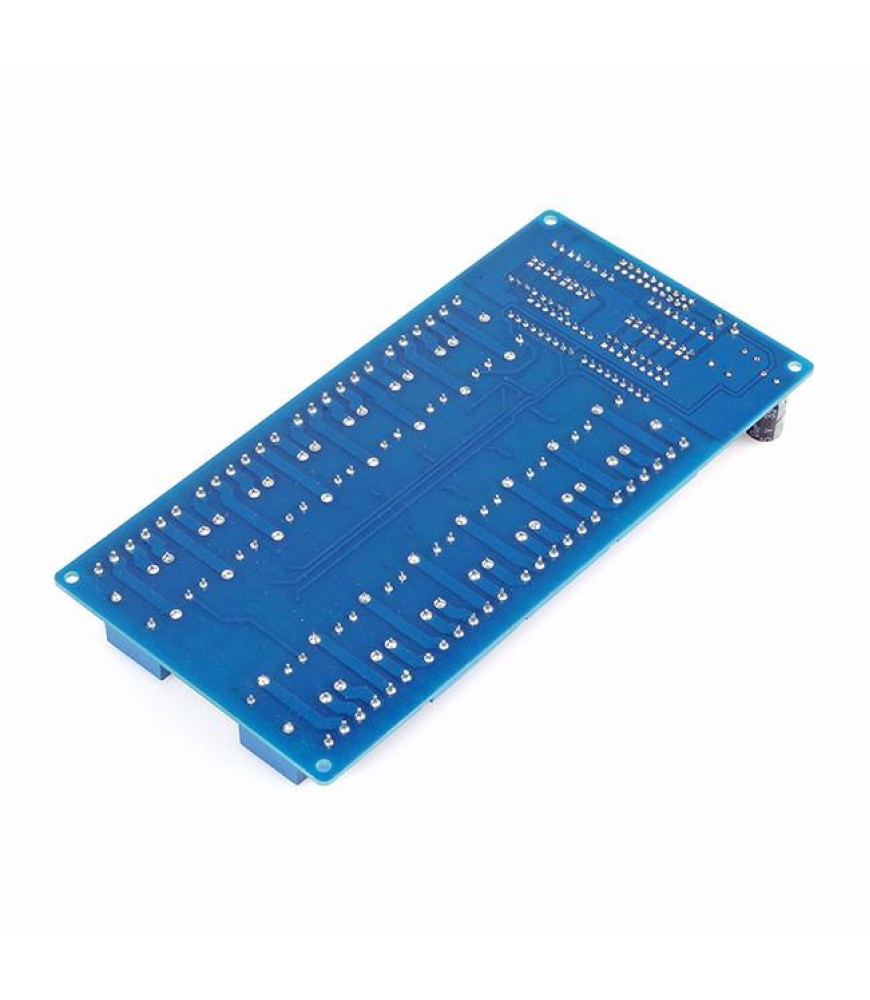

This is a 12V 16-Channel Relay interface board, Be able to control various appliances, and other equipment with large current. It can be controlled directly by Micro-controller (Raspberry Pi, Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) .
SPECIFICATION
- Control switches remotely together with 16 Channel relay.

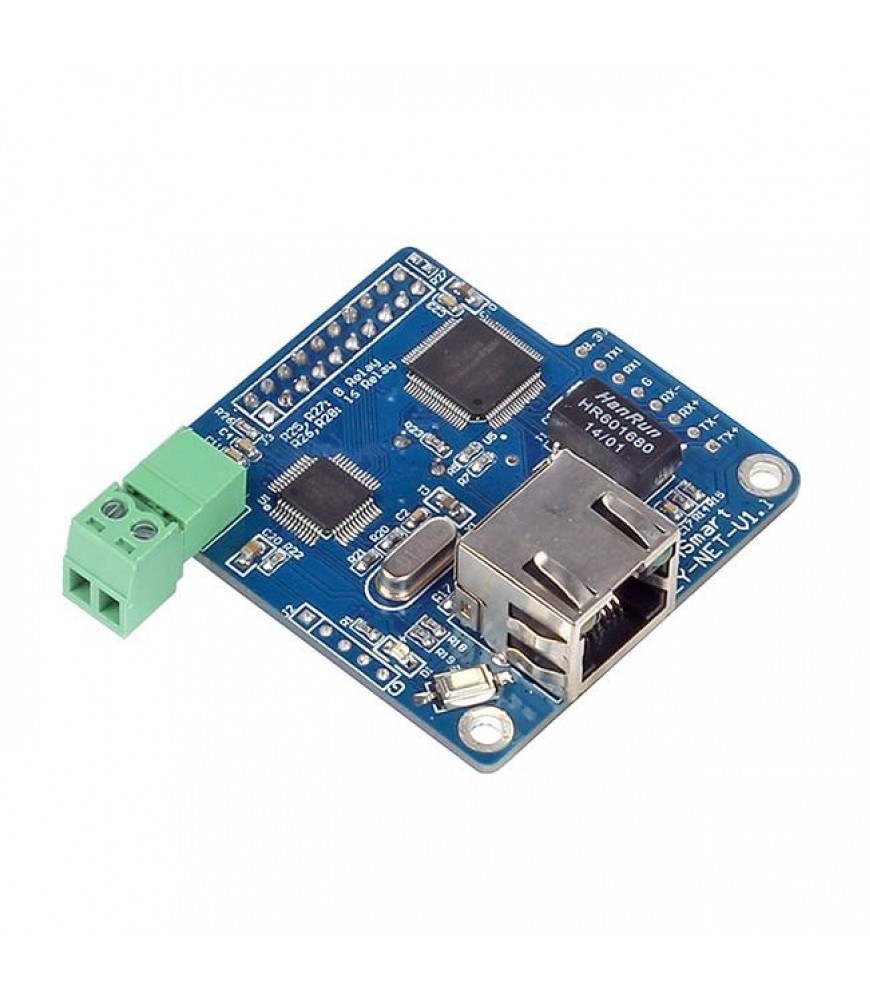

- RJ45 interface, via RJ45 telecommunications connection for network control.
- Support for 16 Channels relay which means you could control more to 16 different devices at the same time.
- Unique dual TCP connect control, corresponding with above trait, local as TCP server
- Accept client control, when connect to remote server as TCP client16 Channel DC 5V Relay Module for Arduino Raspberry Pi
- Supply core module detailed information, application program demo,
- Support customized smartphone App (iOS, Android)
Apps for iOS , Android and MFC:
- App for iOS: For control your iMatic remote control 16 channels WiFi relay model from your iPhone, iPod or iPad, iMatic is available in APP Store.
- App for Android: iMatic is available in Google play.
Source Codes Address:- iMatic_iOS.zip
- Android_iMatic.rar
- MFC.7z
WHAT'S IN THE PACKAGE
- 1 x iMatic with RJ45 remote control for Arduino Relay Android iOS
- 1 x 16 Channel DC 12V Relay Module for Arduino Raspberry Pi
