LA104 Handheld 4-Channel Logic Analyzer

LA104 Handheld 4-Channel Logic Analyzer

LA104 Handheld 4-Channel Logic Analyzer

  • Product Code:101-92-506
  • Availability:In Stock
  • $109.99

  • Ex Tax:$109.99
DESCRIPTION

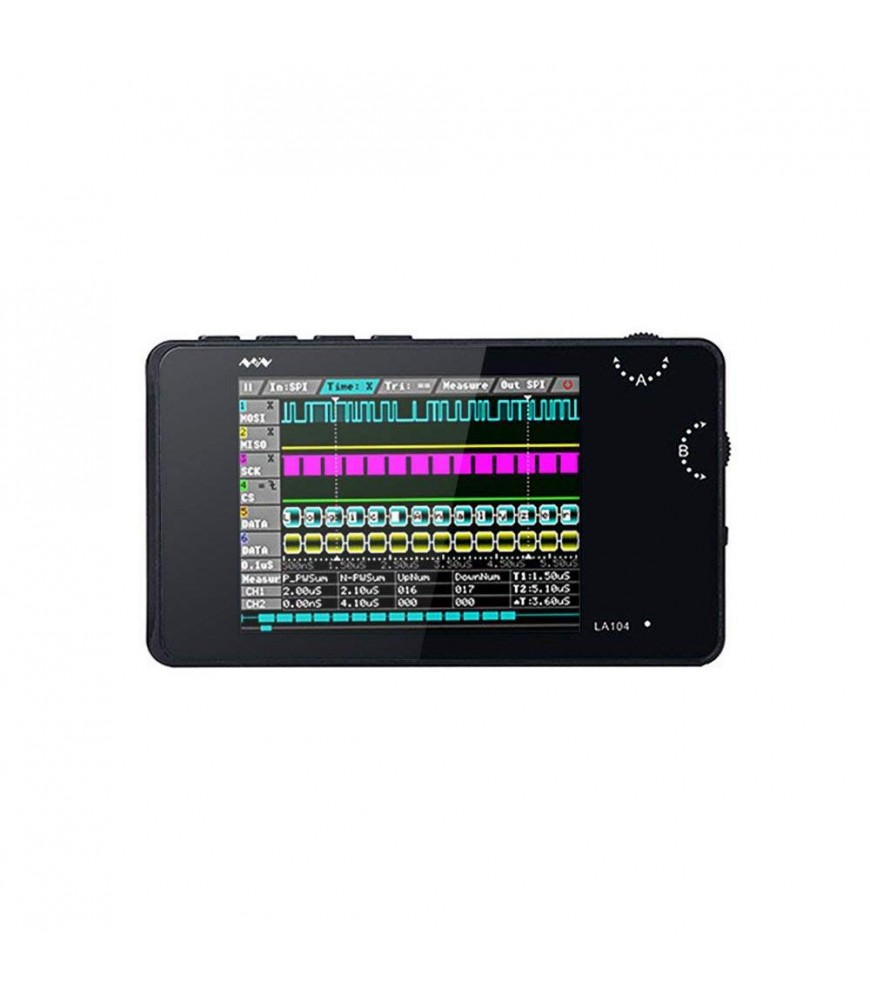

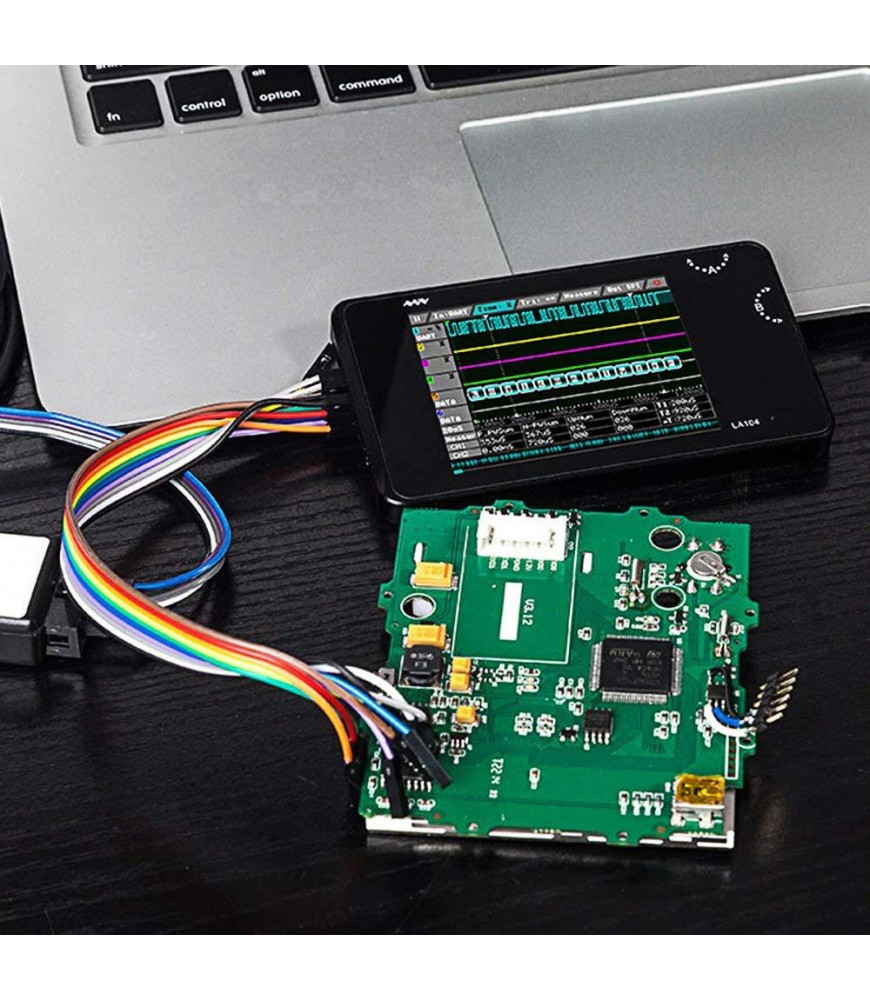

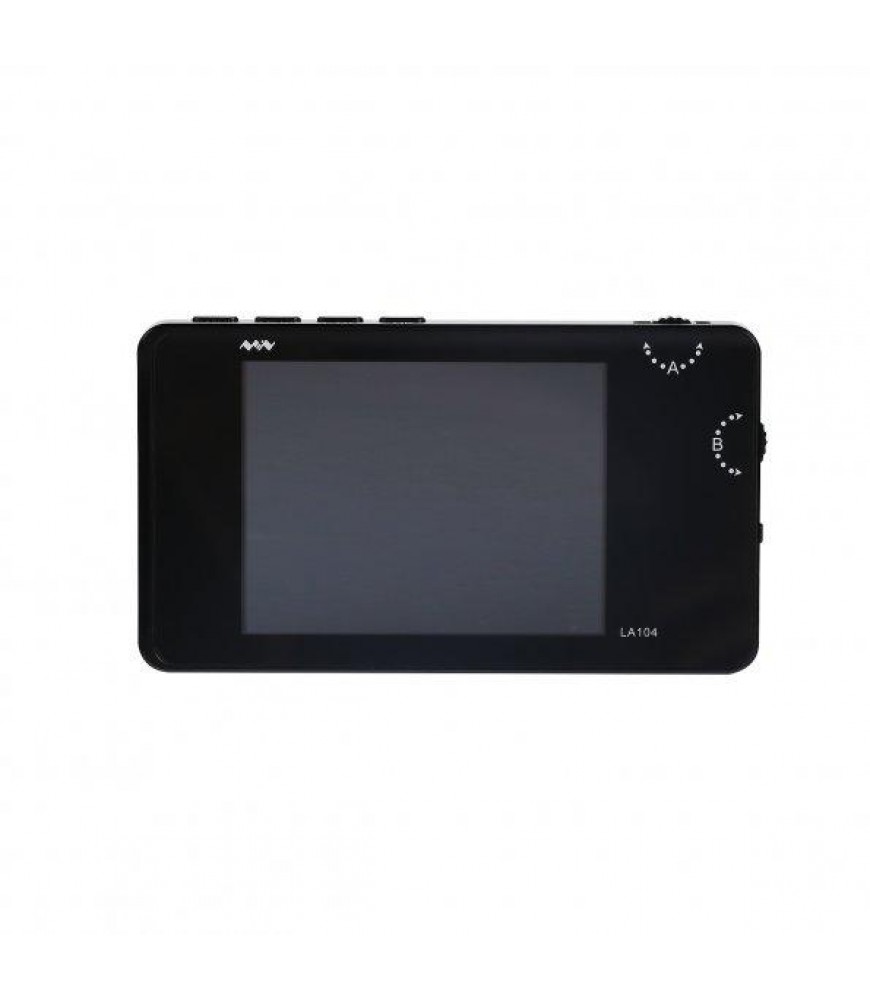

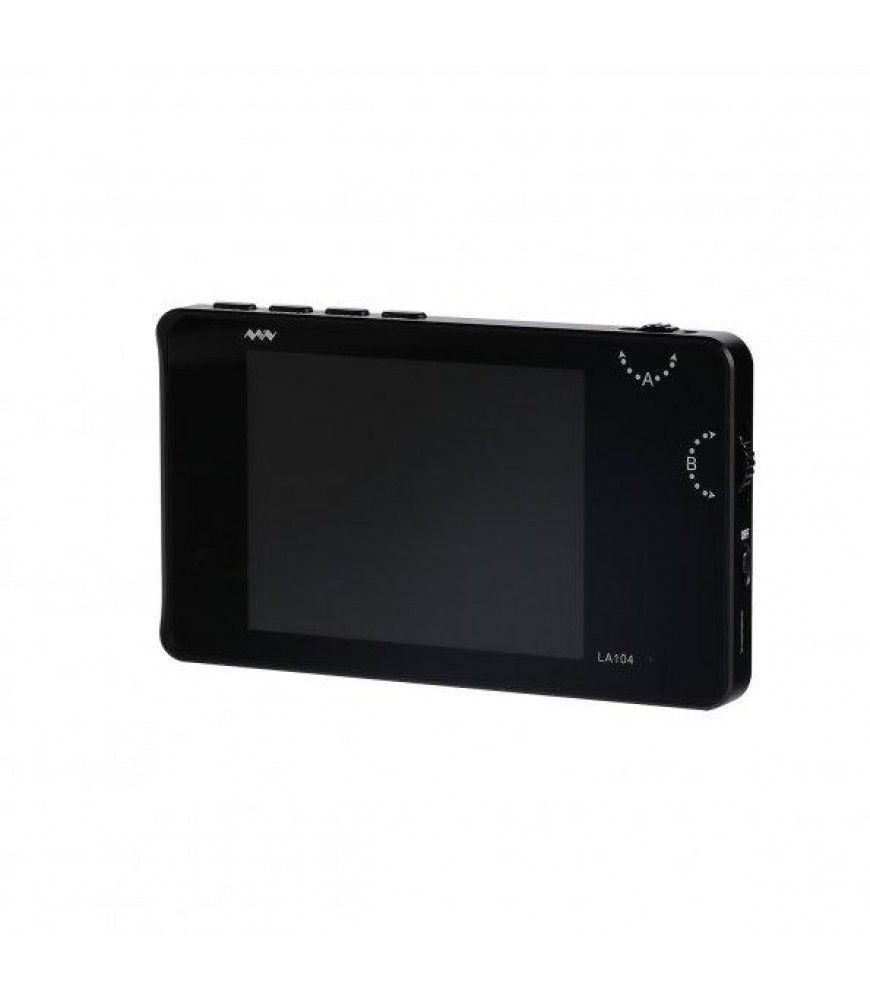

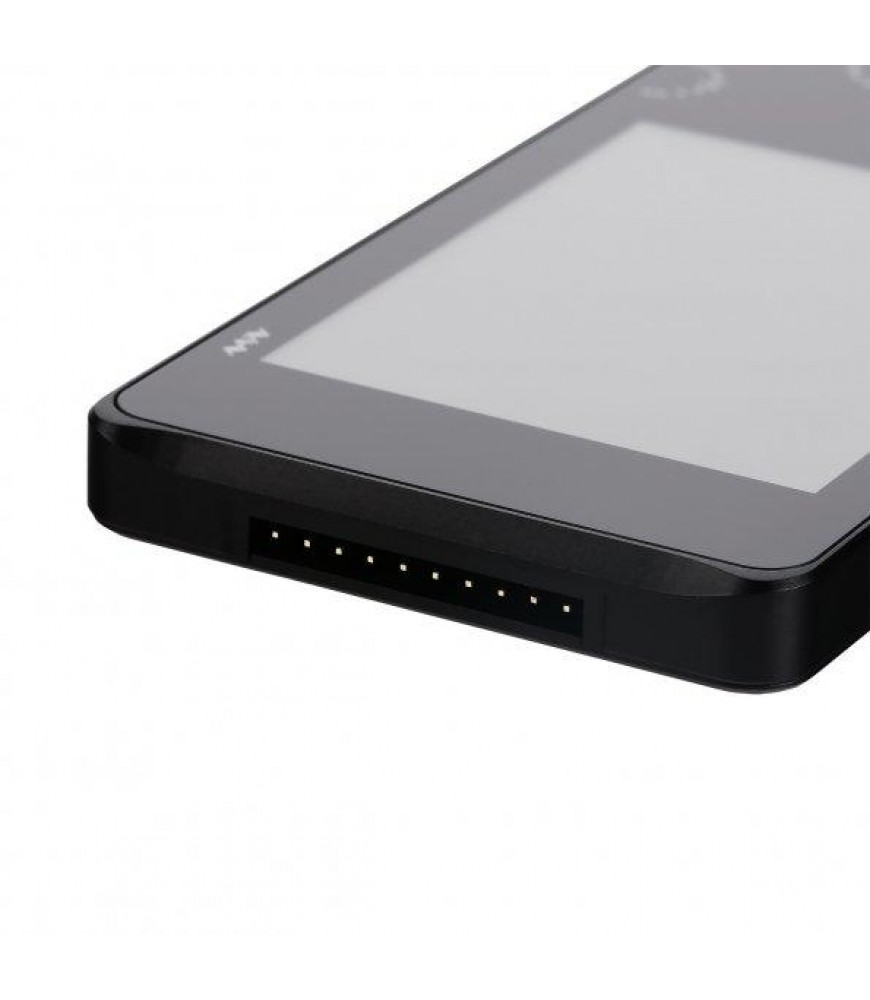

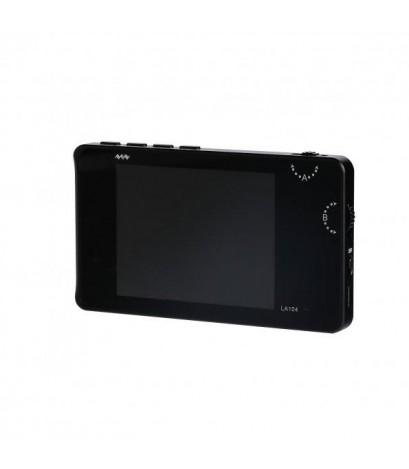

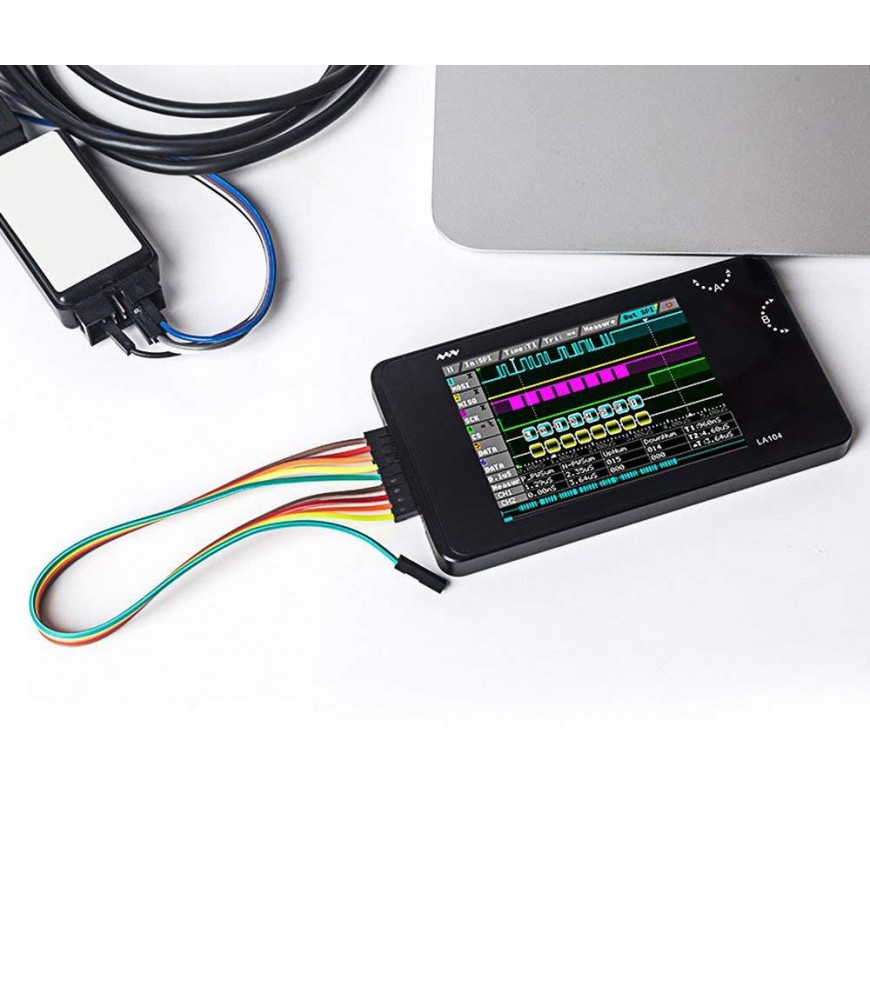

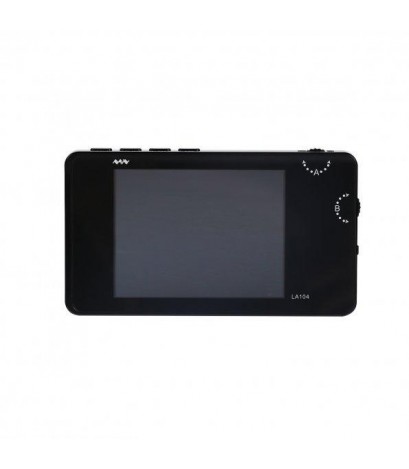

LA104 is a 4-Channel logic analyzer with a built-in screen and battery. The shell is made of a CNC machined aluminum alloy. With its compact and portable design, this unit provides a versatile and powerful solution to your analyzing needs!

SPECIFICATION
  • Storage: 8MB USB flash disk memory
  • Screen Size: 2.8''
  • Screen Resolution: 320 × 240
  • Battery: 500mAh
  • Dimension: 100 × 56 × 8.6mm ● Weight: 83g
  • Certifications: CE, FCC

Input:

  • Channels: 4
  • Max Sample Rate: 100Msa/s
  • Minimum capture pulse width: 10ns
  • Input impedance: 1MΩ Output:
  • Channels: 4
  • Mode: SPI, I2C, UART
  • 3V output Channel: 1
WHAT'S IN THE PACKAGE
  • 1 x LA104 Digital Logic Analyzer
  • 20 x DuPont Wire
  • 5 x Probe Hook
  • 1 x English Manual
