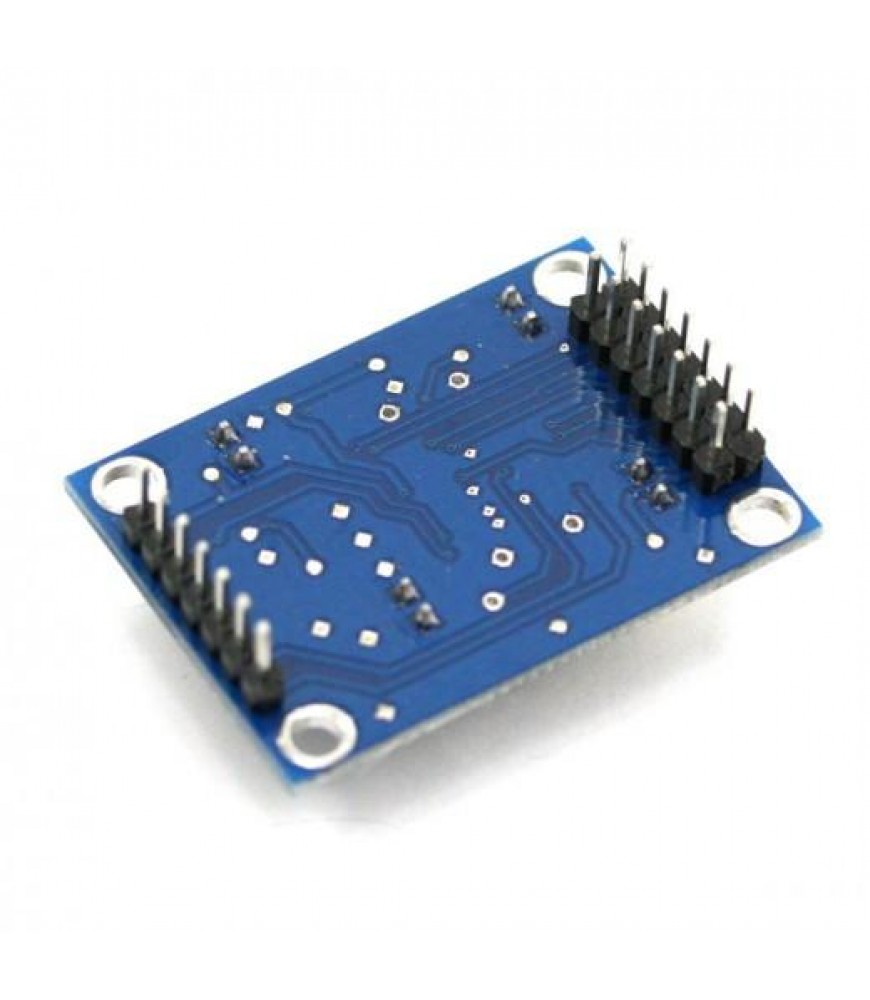

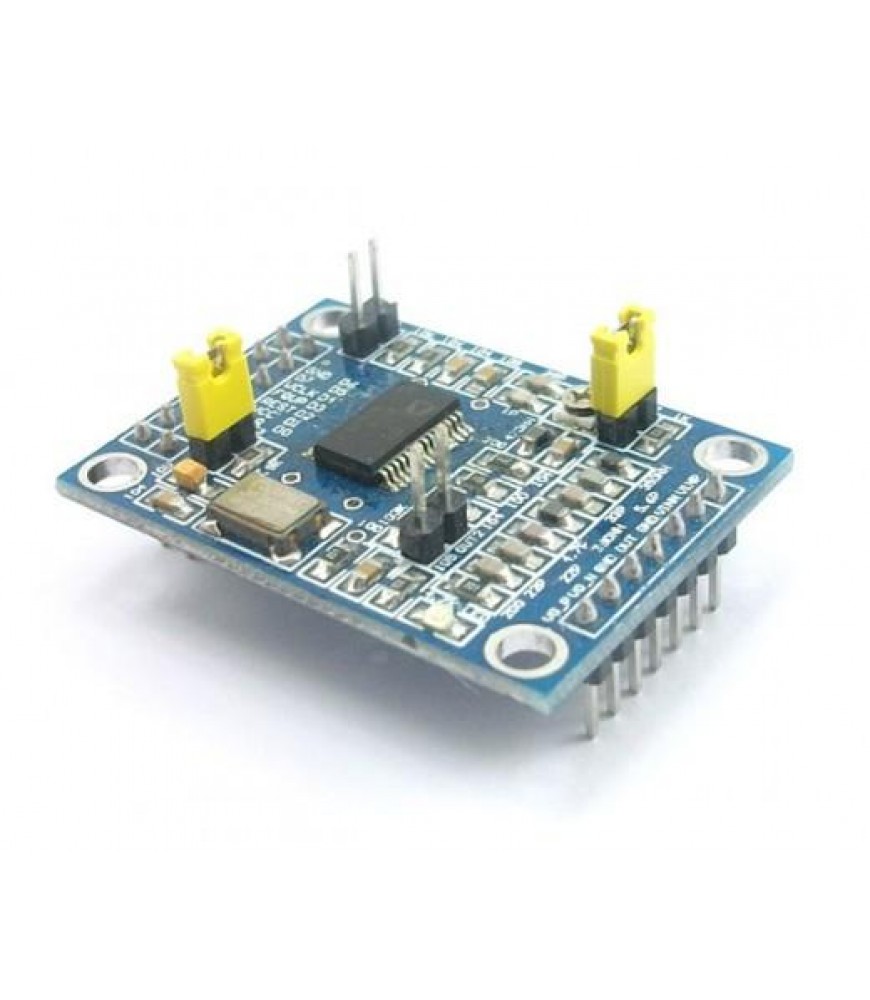

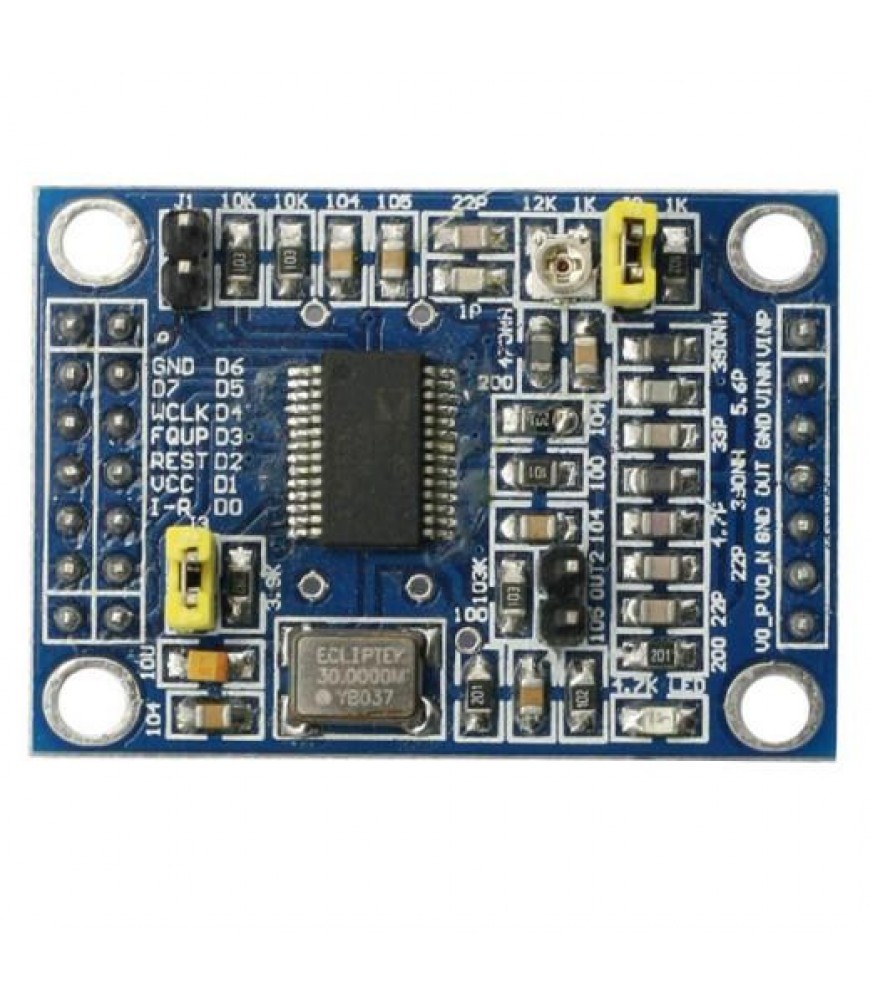

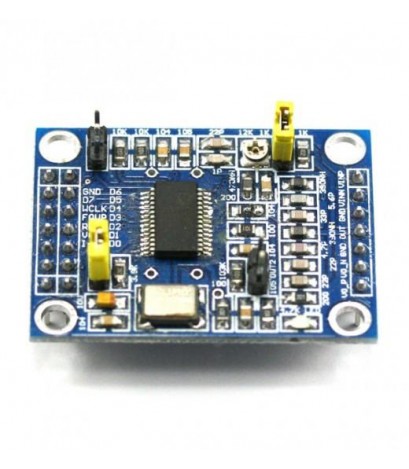

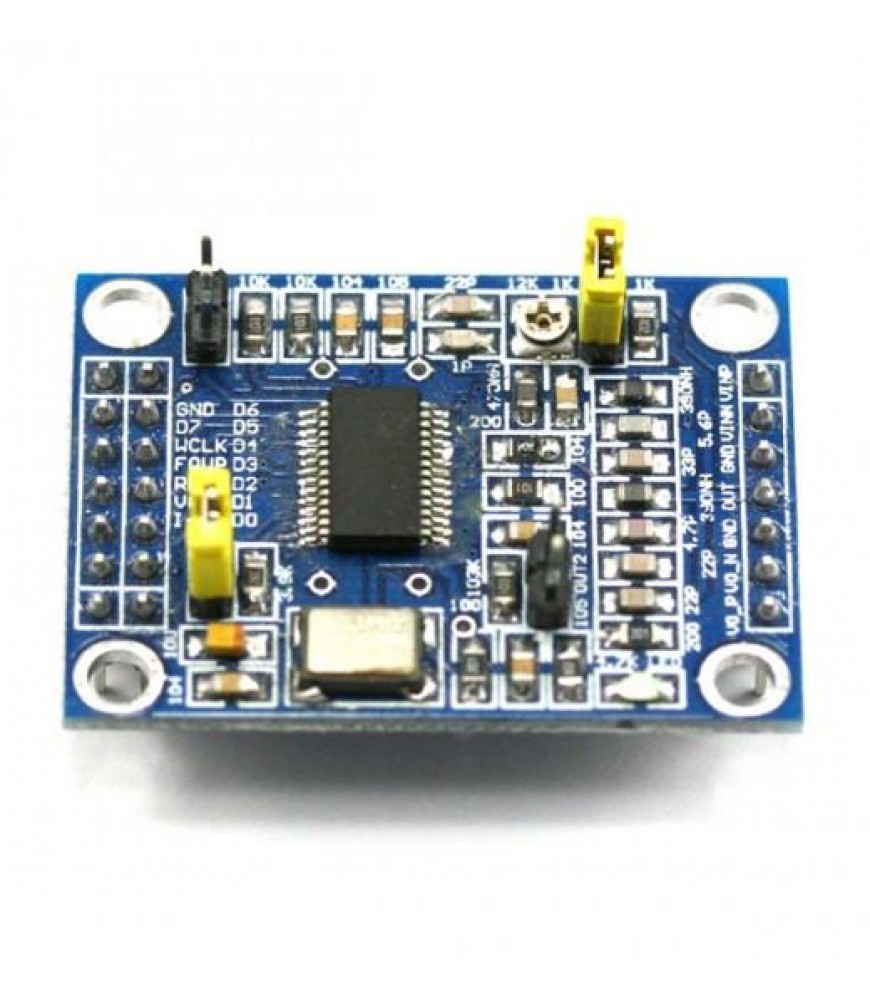

AD9851 DDS Signal Generator Module

AD9851 DDS Signal Generator Module

AD9851 DDS Signal Generator Module

  • Product Code:101-60-143
  • Availability:In Stock
  • $31.99

  • Ex Tax:$31.99
SPECIFICATION
  • 2 sine wave and 2 square wave output
  • AD9851: 0-70MHz
  • After the 20-30MHz frequency harmonics increases, the waveform will be less and less clean
  • Square Wave: 0-1MHz
  • Low-pass filter with 70MHz, so the waveform better than SN
  • Parallel and serial data input can be selected via a jumper
  • DA produced the benchmark pin (PIN12) leads for easy adjustment to do the magnitude of the output waveform Application
  • Comparator reference input voltage generated by the variable resistor, the resistor can be adjusted duty cycle square wave of different
  • AD9851 module Using 30MHZ Active crystal
  • AD9851 Clock frequency up to 180MHz, AD9851 has 6 octave
