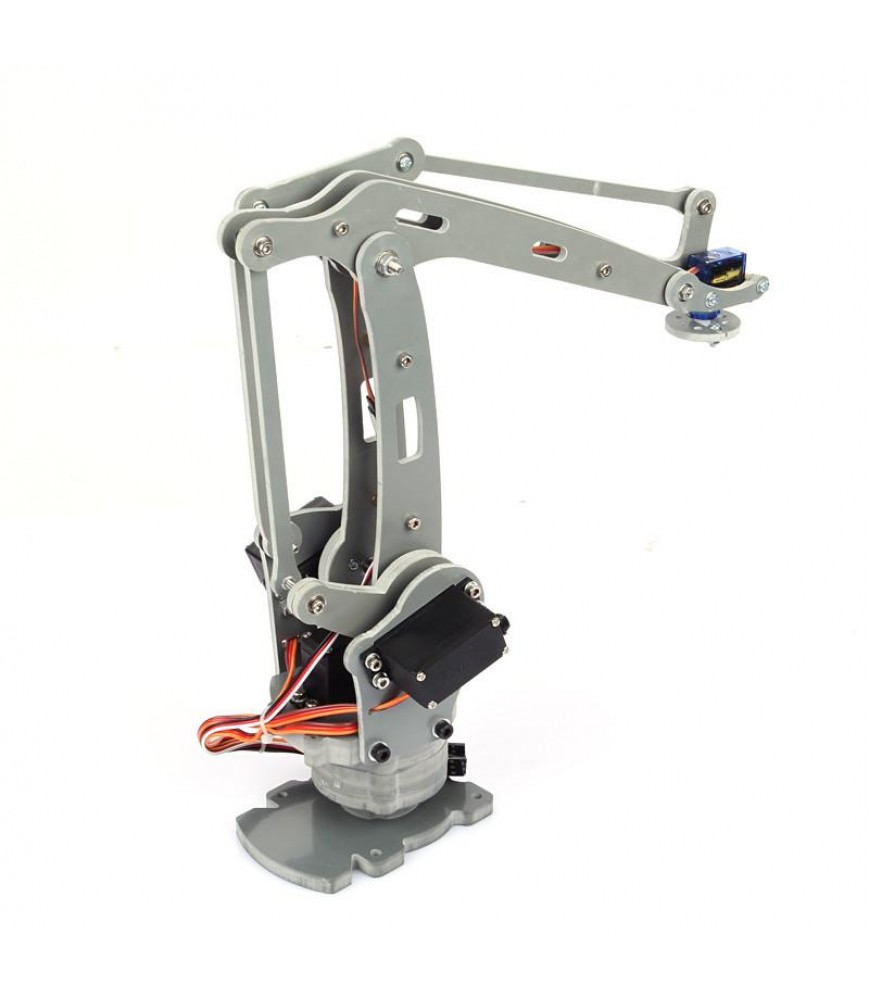

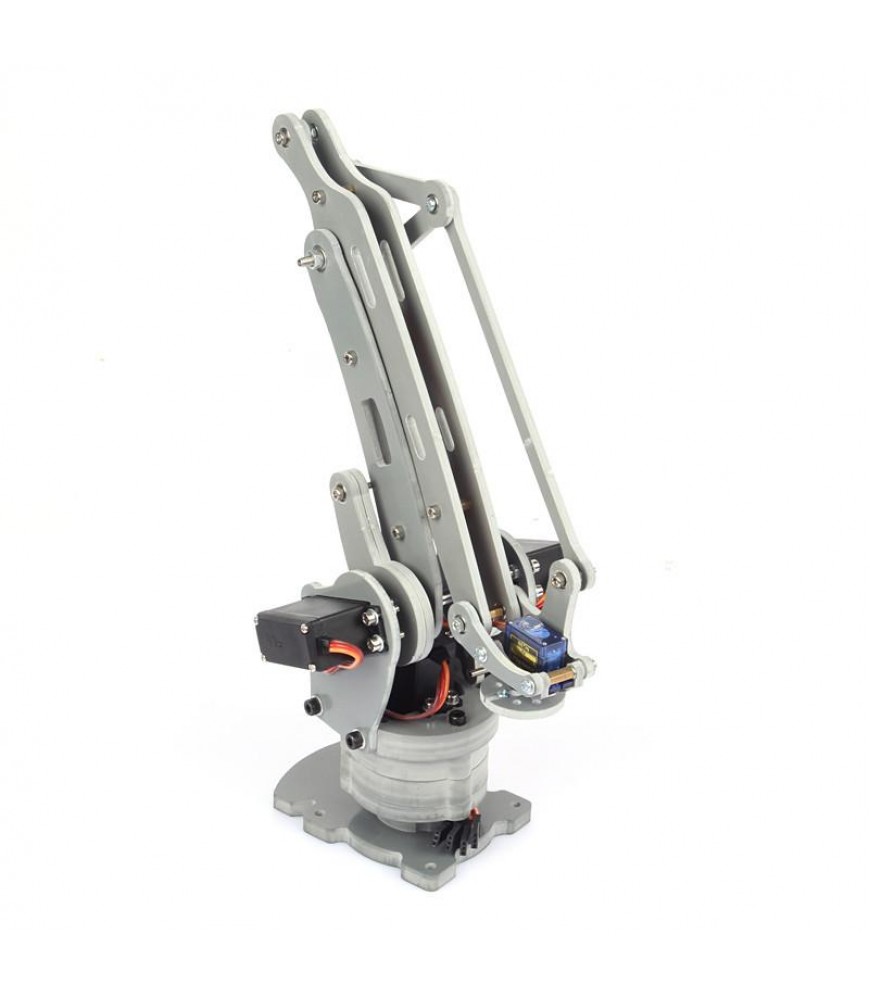

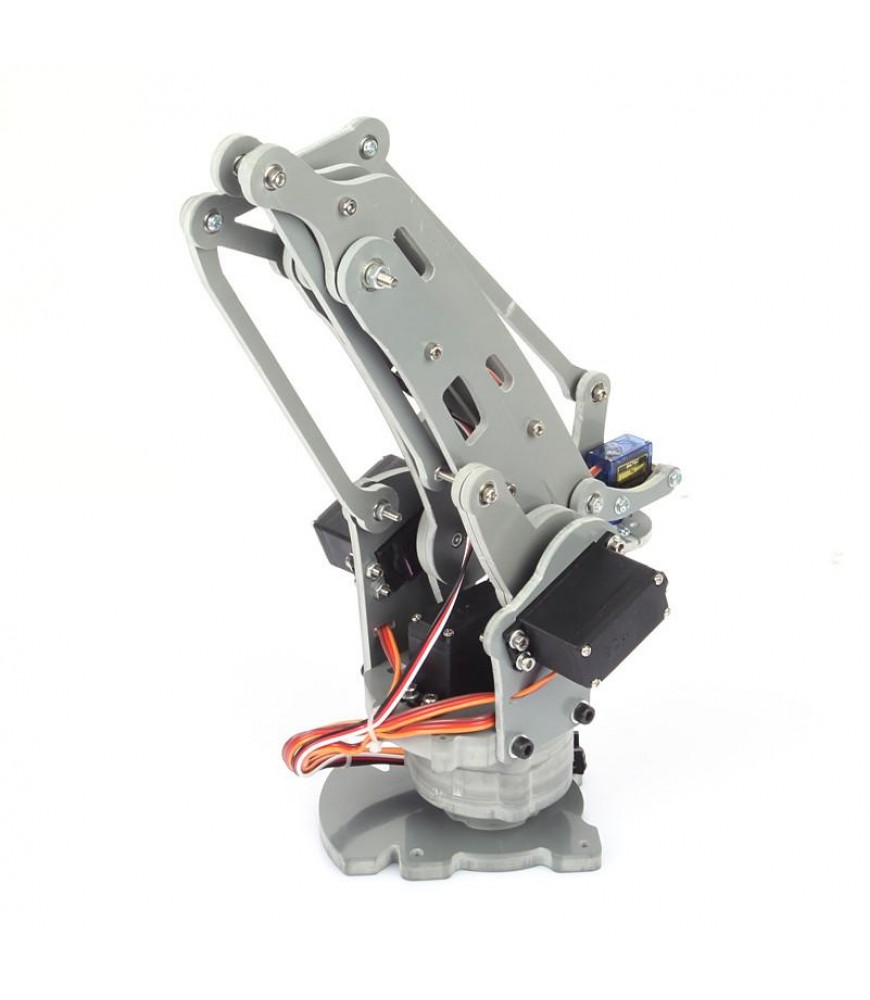

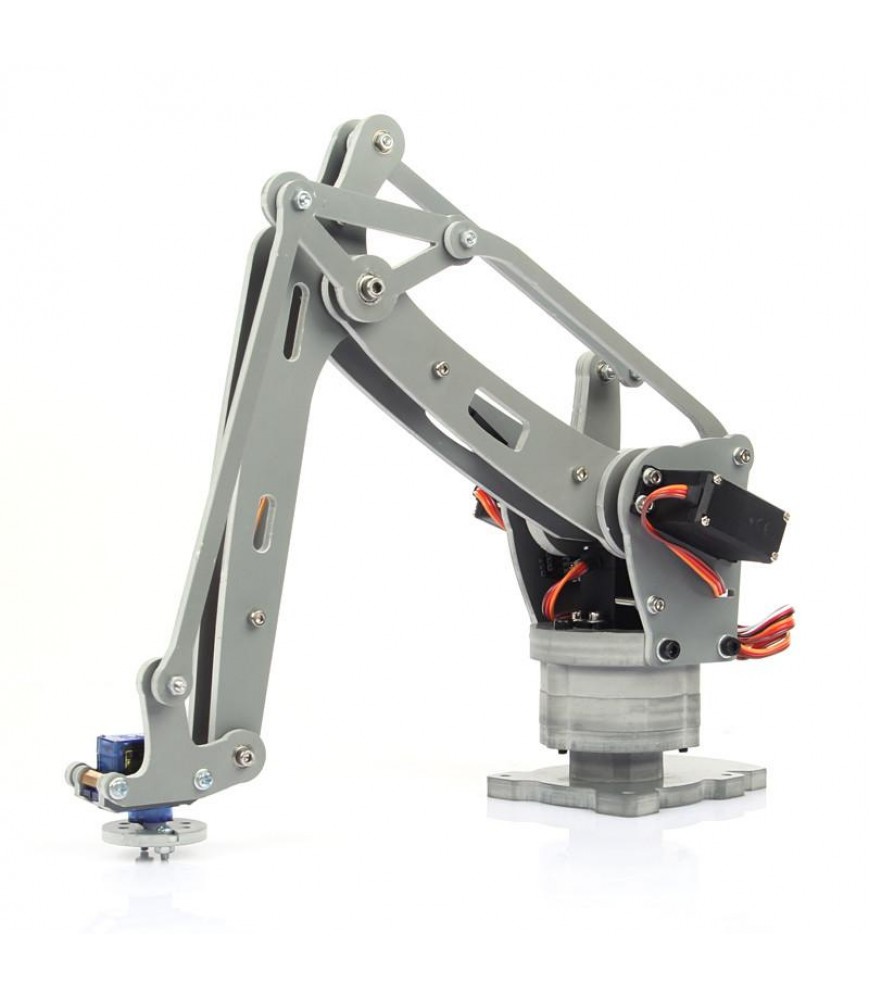

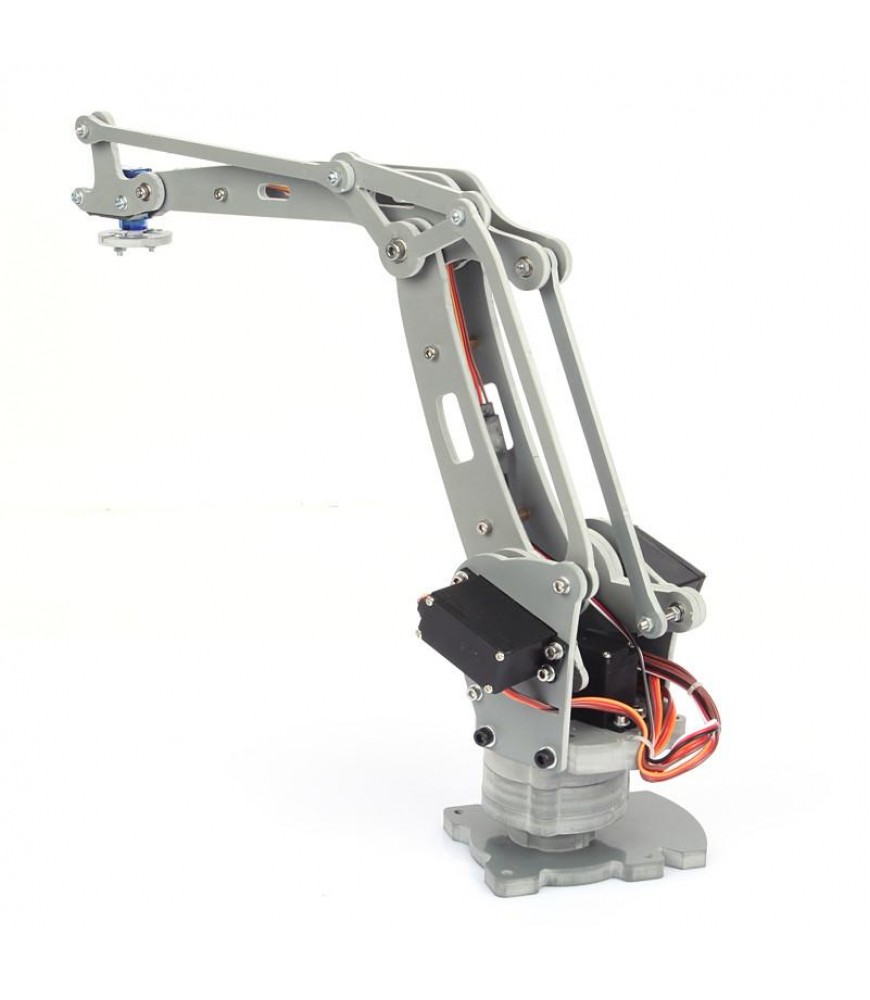

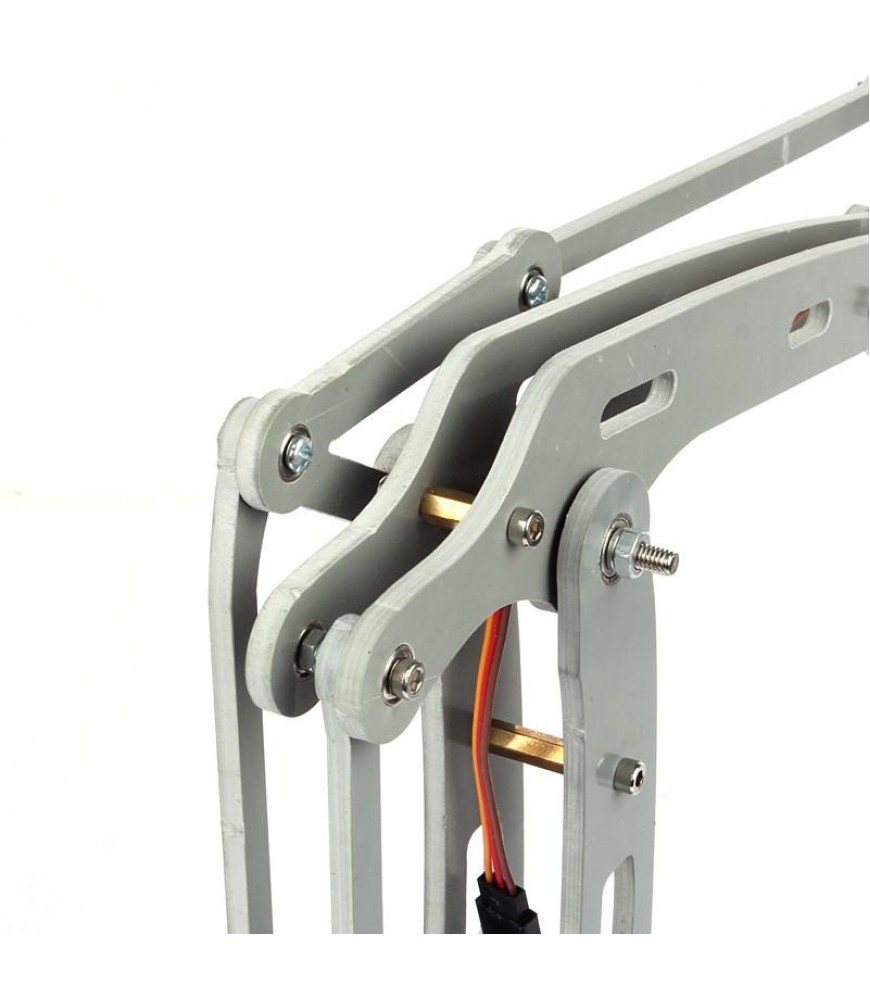

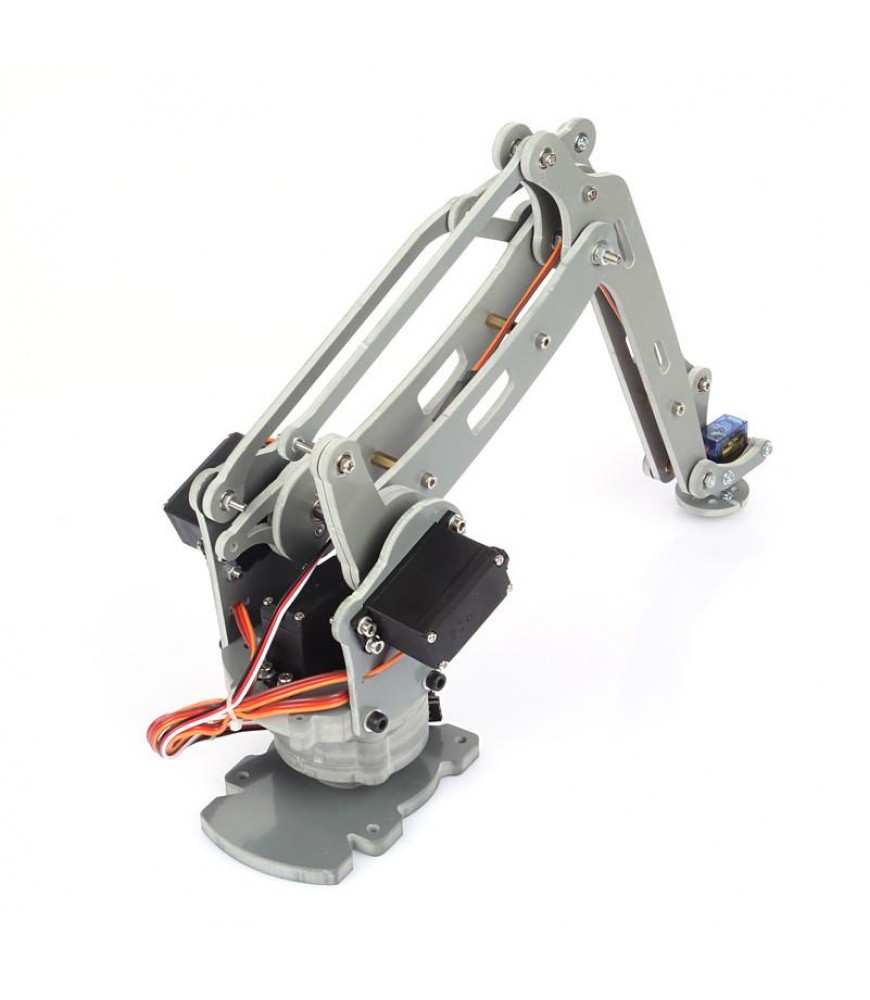

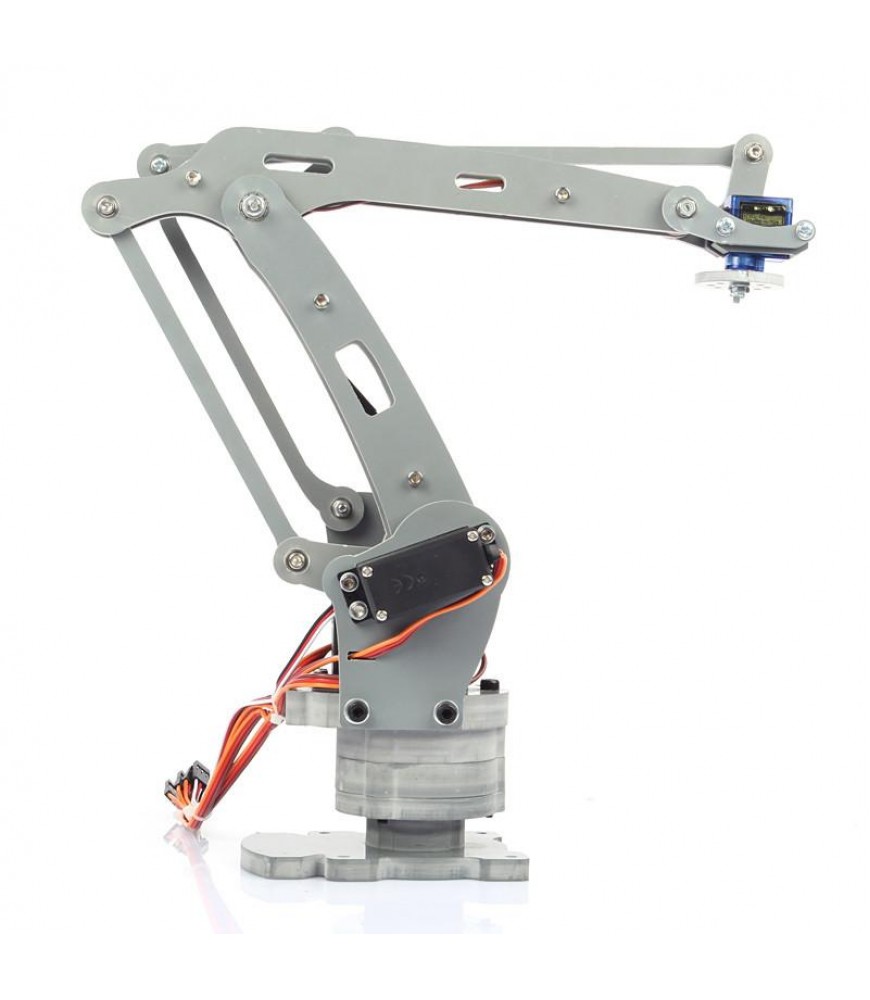

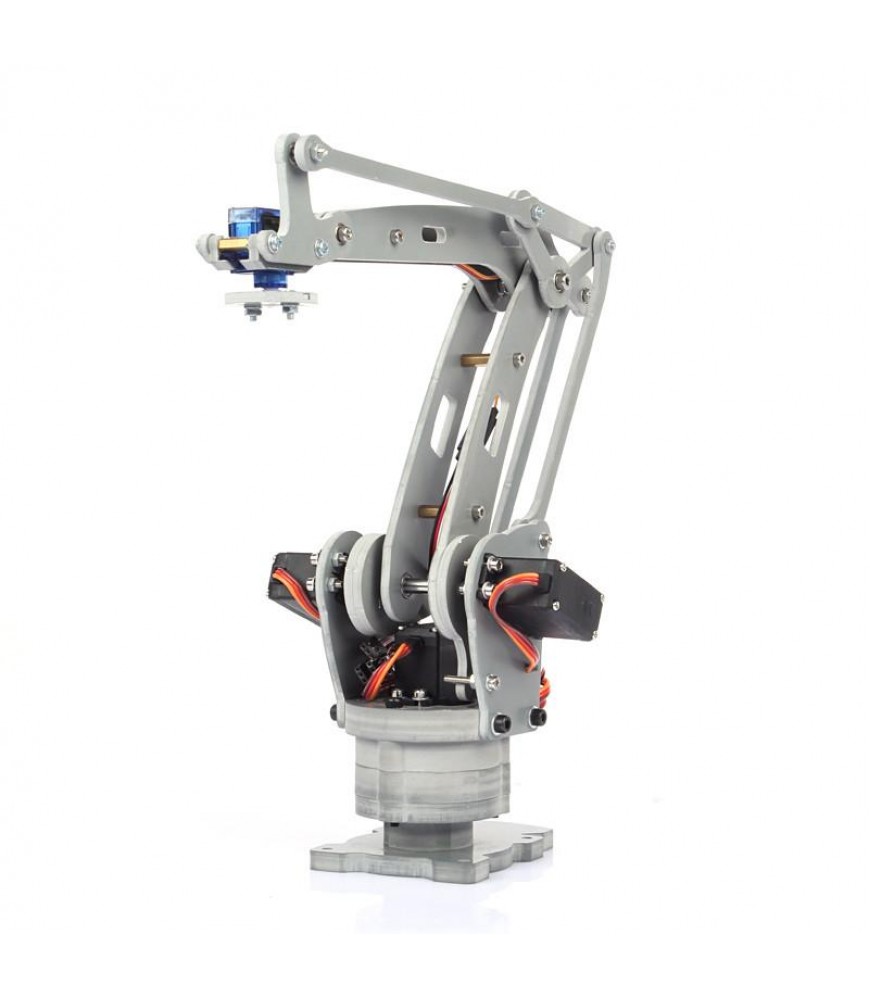

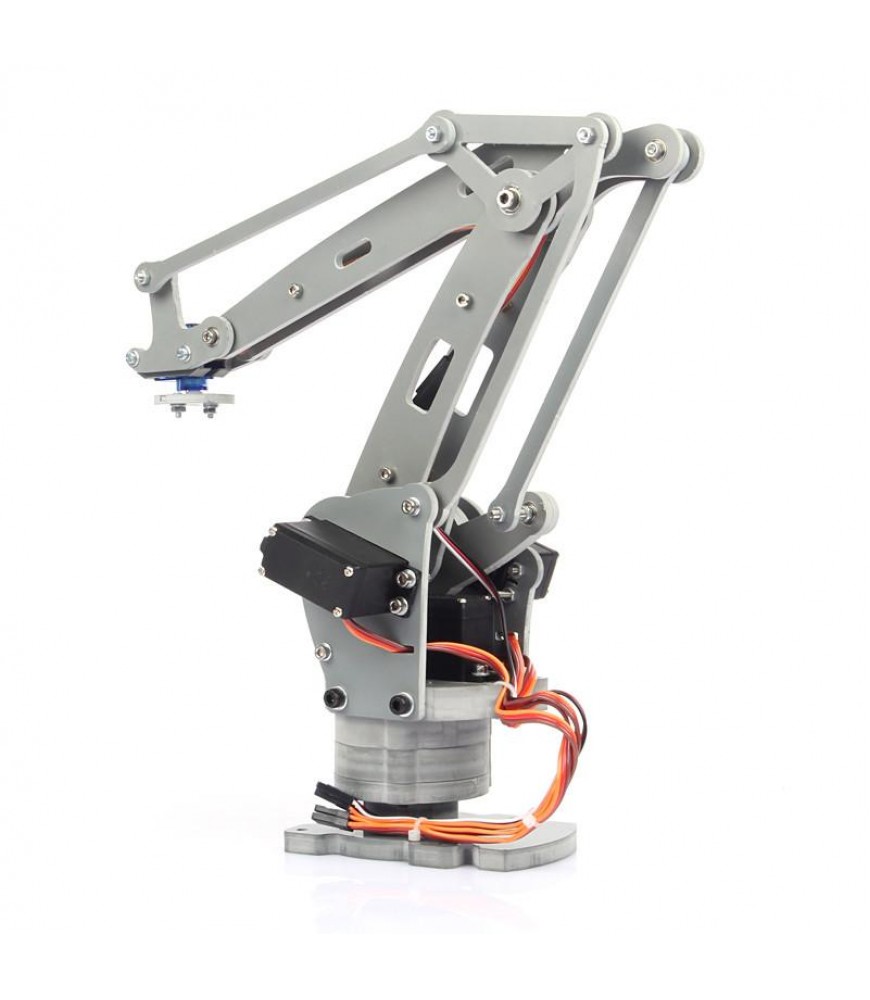

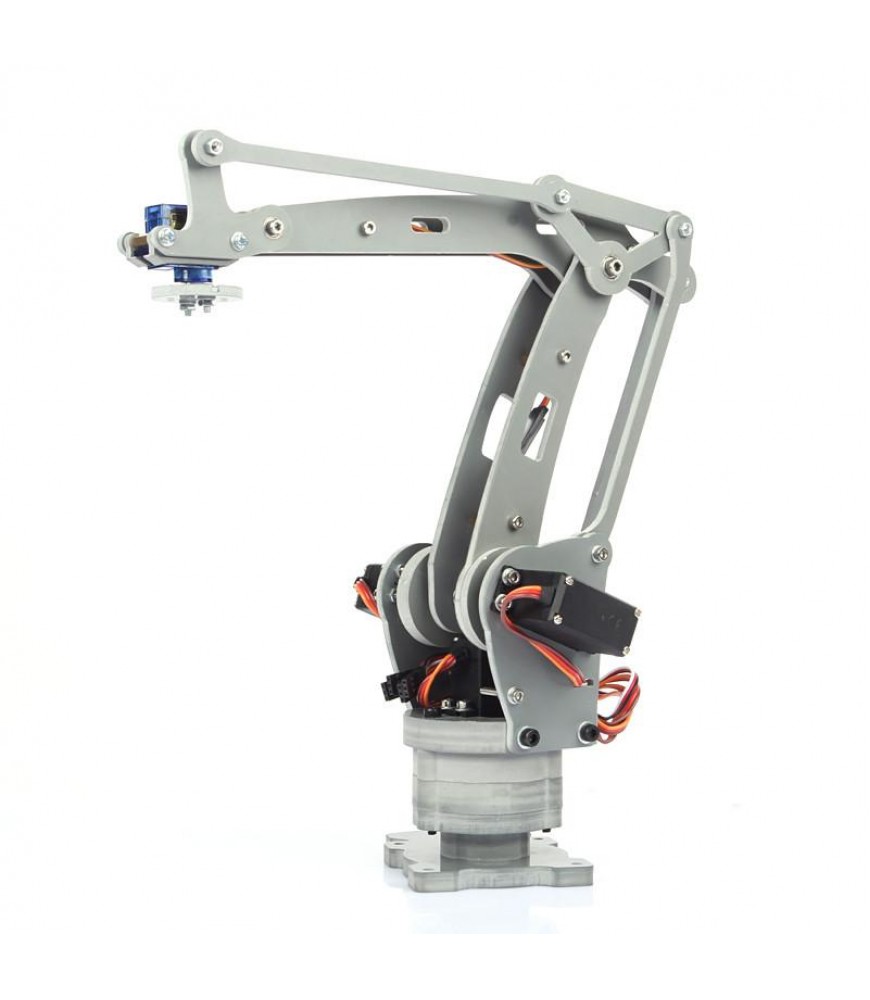

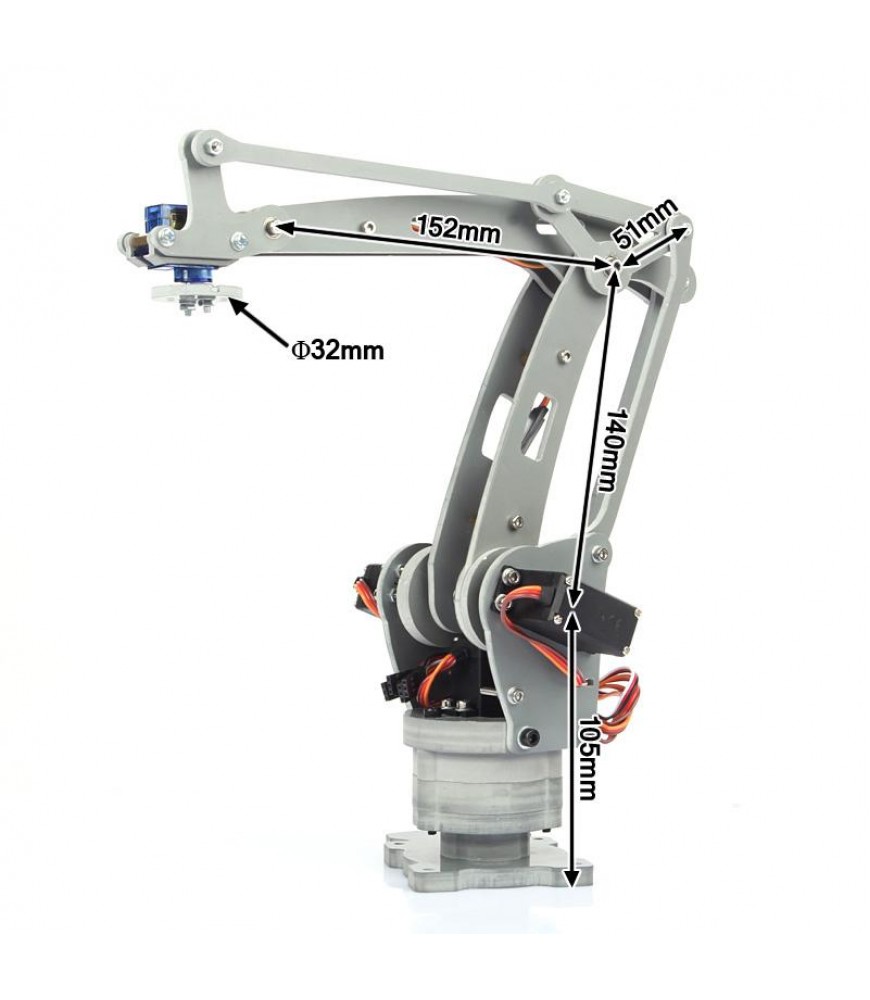

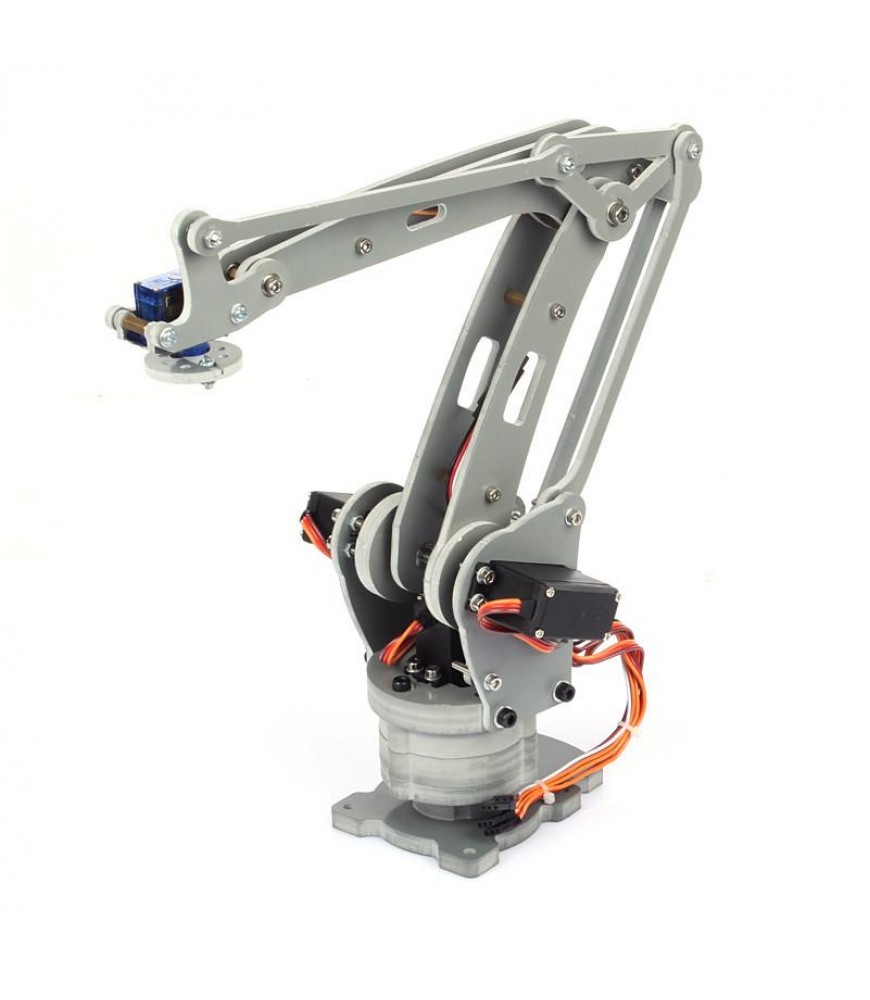

4-Axis Desktop Robotic Arm, Assembled

4-Axis Desktop Robotic Arm, Assembled

4-Axis Desktop Robotic Arm, Assembled

  • Product Code:101-20-126
  • Availability:In Stock
  • $99.99

  • Ex Tax:$99.99
VIDEO
SPECIFICATION

Controller compatible with Arduino:

  • Digital I/O port 0~13
  • Analog I/O port 0~5
  • Support USB interface protocol and power supply
  • Support ISP download function
  • Support single-chip TX/RX terminals
  • Support USB to TTL TX/RX terminals
  • Support AREF terminals
  • Support 6 PWM terminals
  • Input voltage: USB power supply or external 7-12V DC input
  • Output voltage: 5V DC output/3.3V DC and external power input
  • Adopts Atmel Atmega328P-PU
  • Size: 70*54mm 2.76*2.13 inch

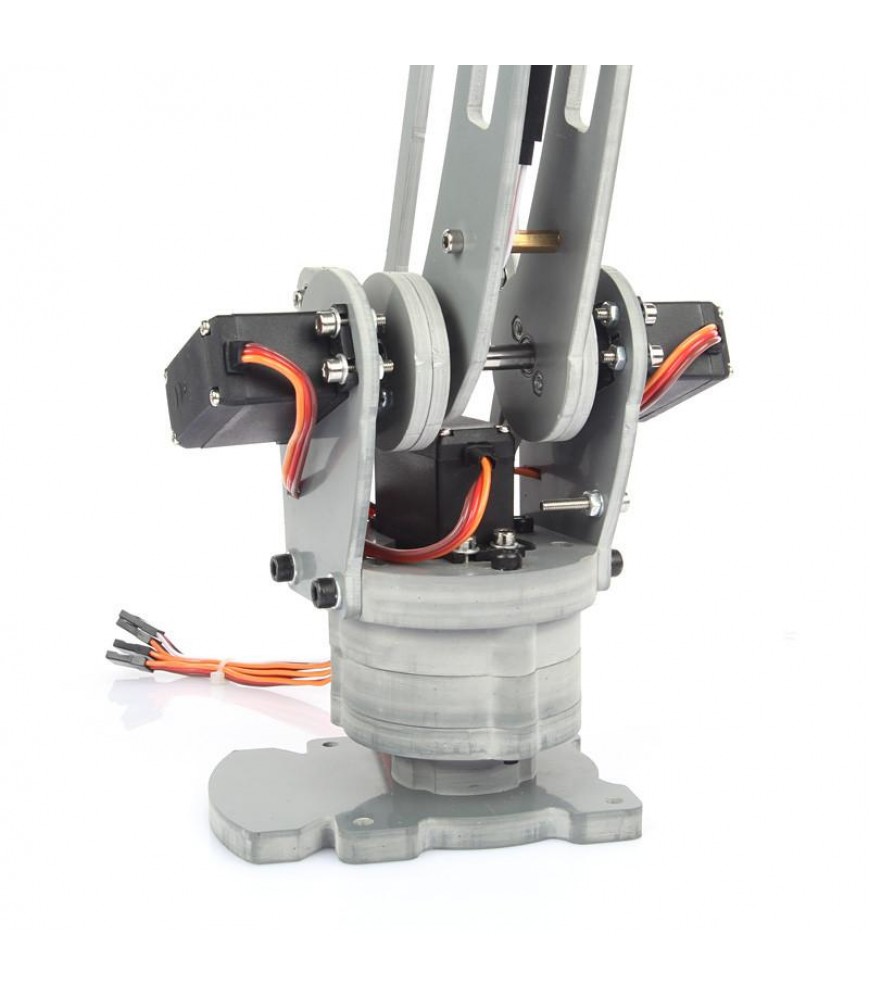

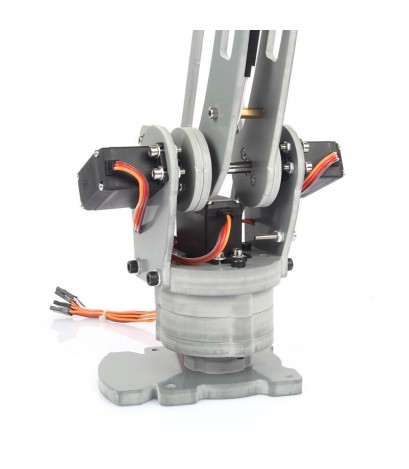

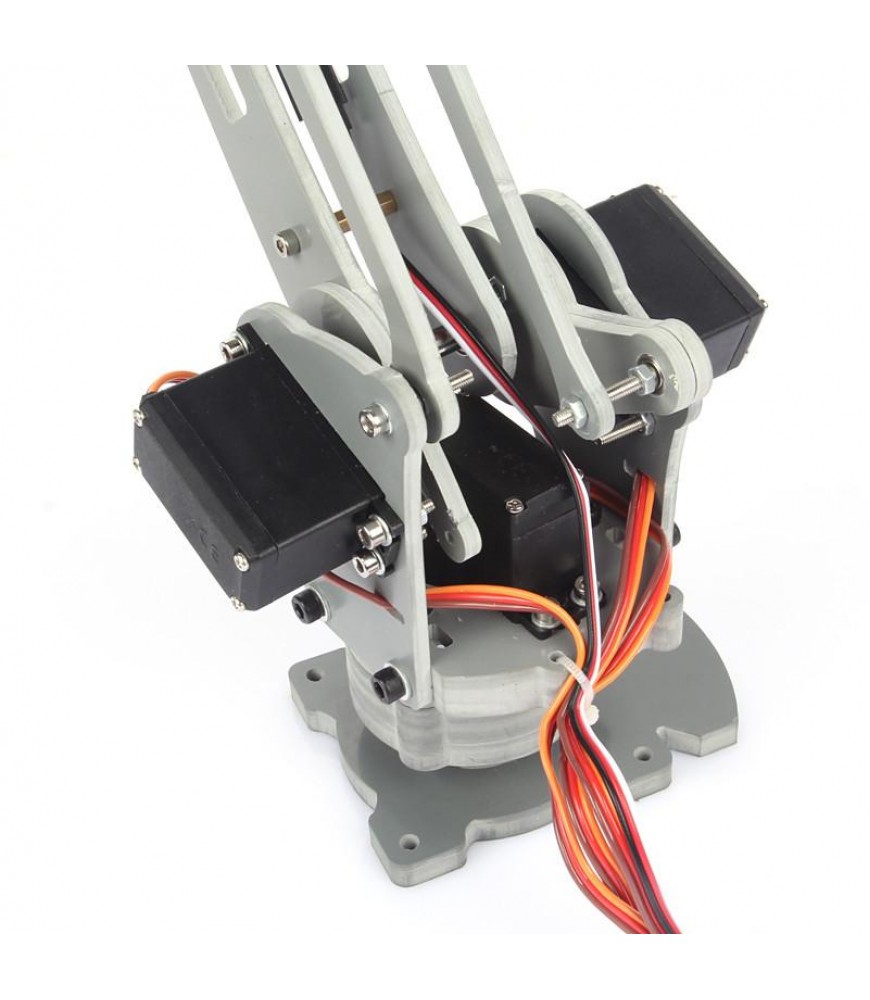

MG995 Servo:

  • Size: 40.7*19.7*42.9mm 16*7.8*16.9 inch
  • Working torque: 13kg/cm
  • Respond rotation speed: 53-62R/M
  • Working temperature: -30~+60℃ -22℉~+140
  • Dead zone: 4ms
  • Plug: JR, Futaba
  • Rotation angle: 180 degree
  • Analog servo
  • Working current: 100mA
  • Working voltage: 3-7.2V
  • Metal gear, coreless motor, two ball bearing
  • Operation speed: 0.17s/60degree(4.8V); 0.13S/60degree(6.0V)

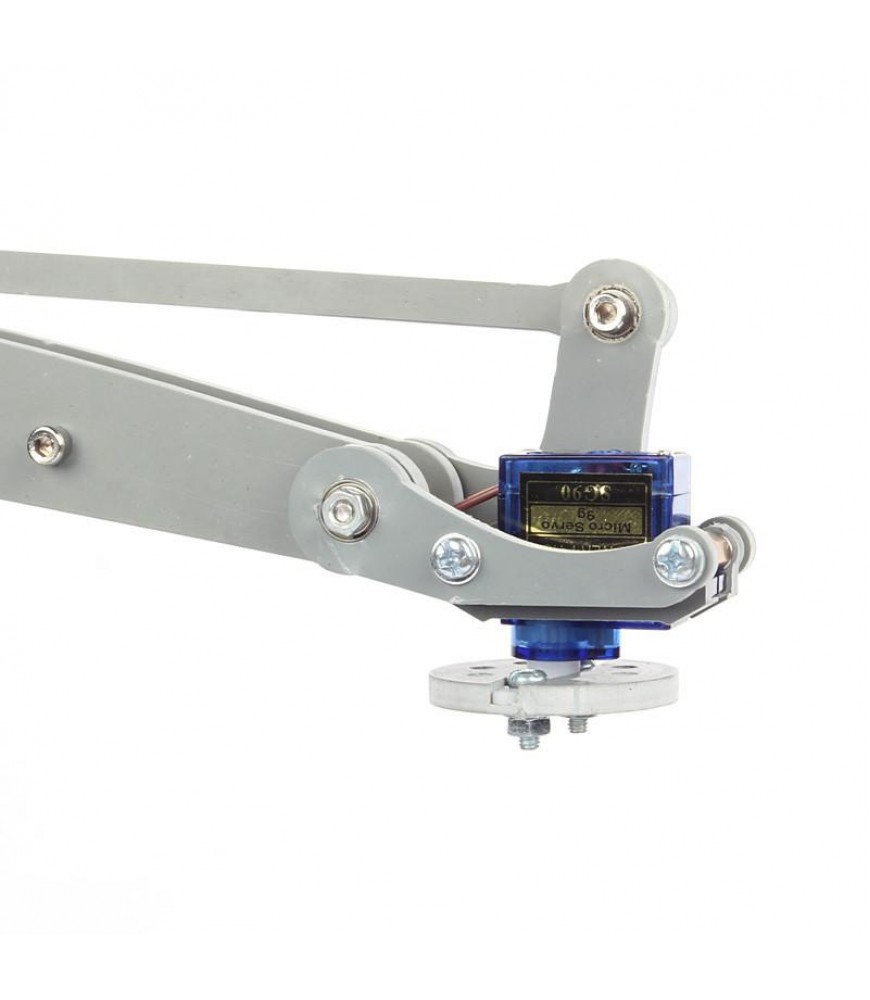

SG90 Servo:

  • Size: 23*12.2*29mm 0.9*0.5*1.1inch
  • Weight: 9g
  • Working torque: 1.6kg/cm
  • Respond rotation speed: 0.12-0.13s/60degree
  • Working temperature: -30~+60 -22℉~+140
  • Dead zone: 5ms
  • Plug: JR, Futaba
  • Rotation angle: 180 degree
  • Analog servo
  • Working current: 100mA
  • Working voltage: 3.5-6V
  • Metal gear
WHAT'S IN THE PACKAGE
  • 1x Assembled 4-Axis Desktop Robotic Arm
  • 3x MG995 55G servo
  • 1x SG90 9G servo
