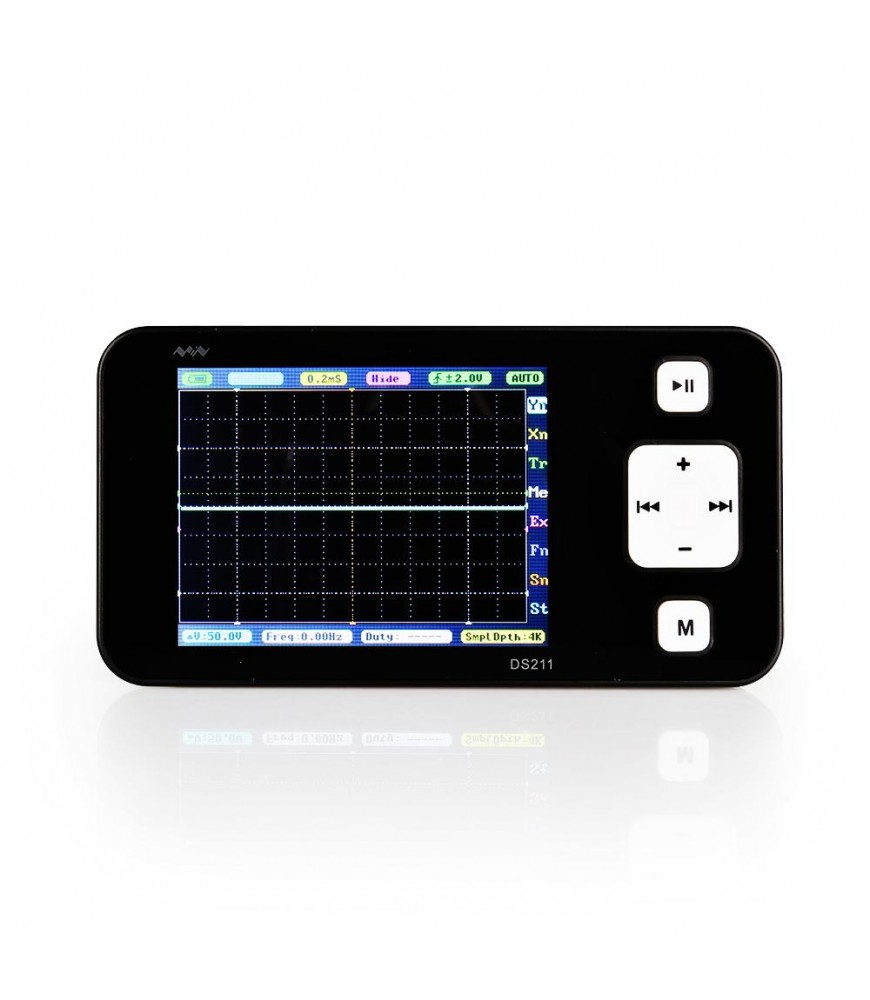

DSO DS211 Mini Oscilloscope

DSO DS211 Mini Oscilloscope

DSO DS211 Mini Oscilloscope

  • Product Code:101-10-156
  • Availability:In Stock
  • $79.99

  • Ex Tax:$79.99

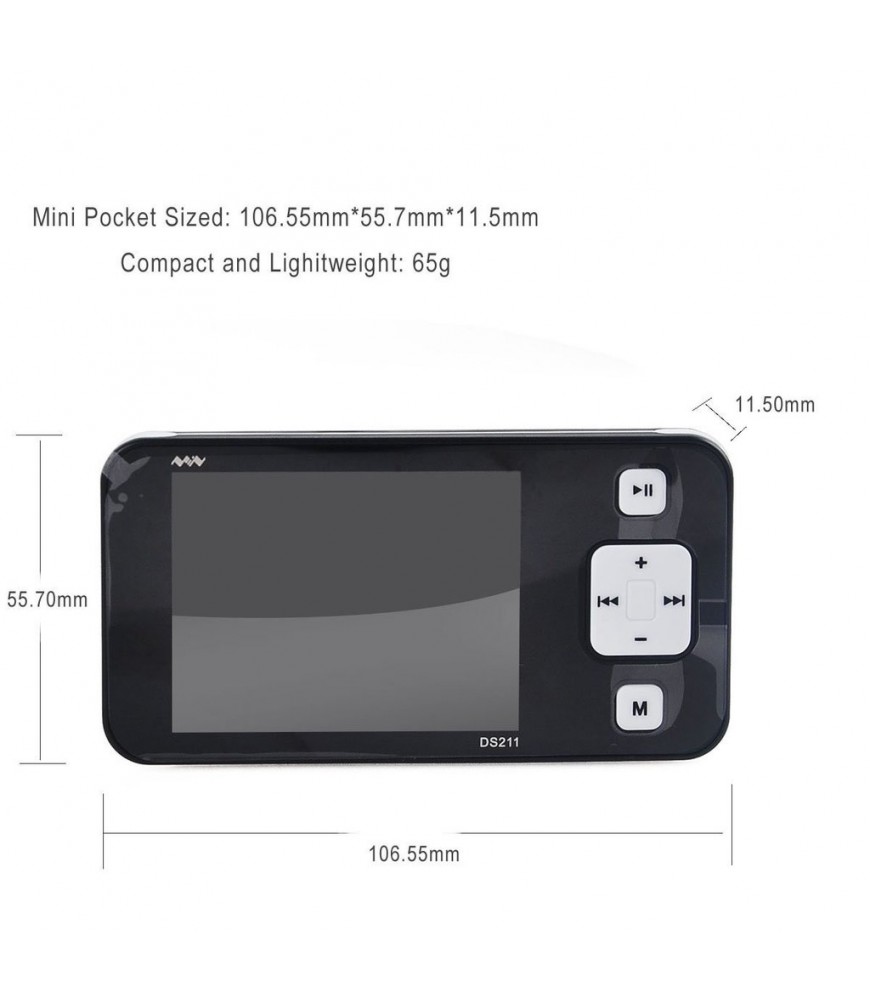

DSO Series:

ModelDSO Nano (DSO211)DSO Note II (DSO202)DSO 212DSO Quad (DSO203)
MCUSTM32F103VCSTM32F303VCSTM32F303VCSTM32F103VE
ADCMCU internal ADCMCU internal ADCMCU internal ADCAD9288
ChannelsAnalog channel 1 + 1 internal channel2 analog2 analog2 analog, 2 digital
Analog Bandwidth200KHz1MHz1MHz8MHz
Max Sample Rate1MSa/s10MSa/s10MSa/s72MSa/s
Maximum Memory Depth8K8K8K4K
Horizontal Sensitivity1uS/Div~2S/Div(1-2-5sequence step)1uS/Div~2S/Div(1-2-5sequence step)1uS/Div~2S/Div(1-2-5sequence step)0.1uS/Div~1S/Div(1-2-5sequence step)
Vertical Sensitivity20mv/Div~10V/Div(1-2-5sequence step)20mv/Div~10V/Div(1-2-5sequence step)20mv/Div~10V/Div(1-2-5sequence step)50mv/Div~10V/Div(1-2-5sequence step)
Input Resistance1MΩ1MΩ1MΩ1MΩ
CouplingDC / ACDC / ACDC / ACDC / AC
Auto Adjustment ModeAUTO_FITAUTO_FITAUTO_FITNO
Calculation Waveforms-A, RecA, A + RecA-A,-B,A+B,A-B RecA,RecB,RecC-A,-B,A+B,A-B RecA,RecB,RecC-A,-B,A+B,A-B RecA,RecB,RecC
Storage 8MB USB flash disk memory 8MB USB flash disk memory 8MB USB flash disk memory 8MB USB flash disk memory
APP Installed1224

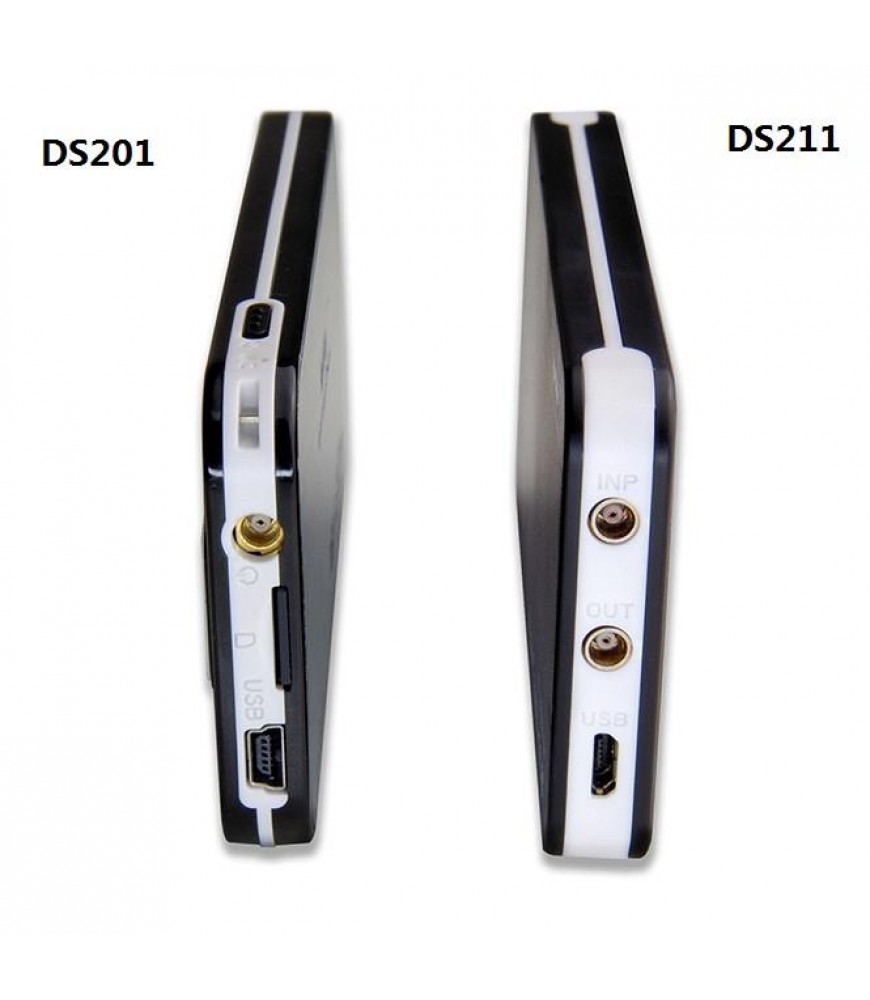

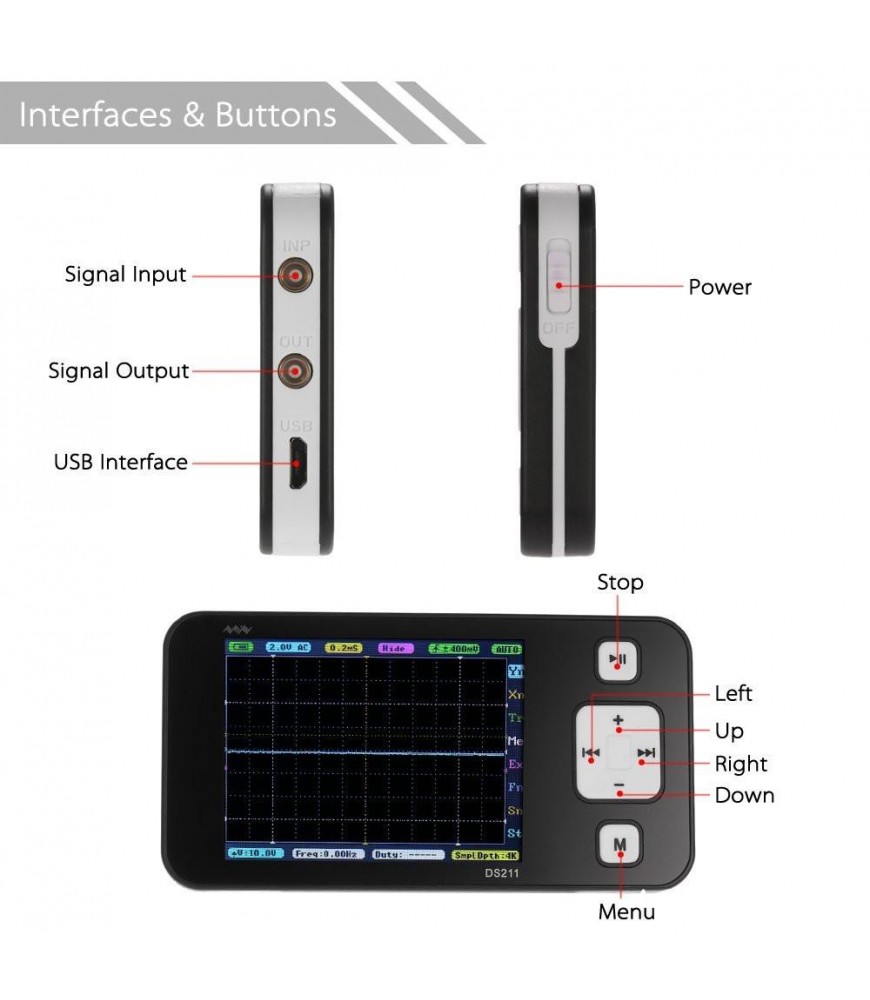

Operationbuttonsbutton,touch areabuttons,scrollersbuttons,scrollers
USB InterfaceMicro USBMicro USBMicro USBMini USB
Battery500mAh500mAh500mAh1000mAh
Screen Size2.8inch2.8inch2.8inch3.0inch
Screen Resolution320 × 240320 × 240320 × 240400 × 240
Open SourceApplication layer Open-Source

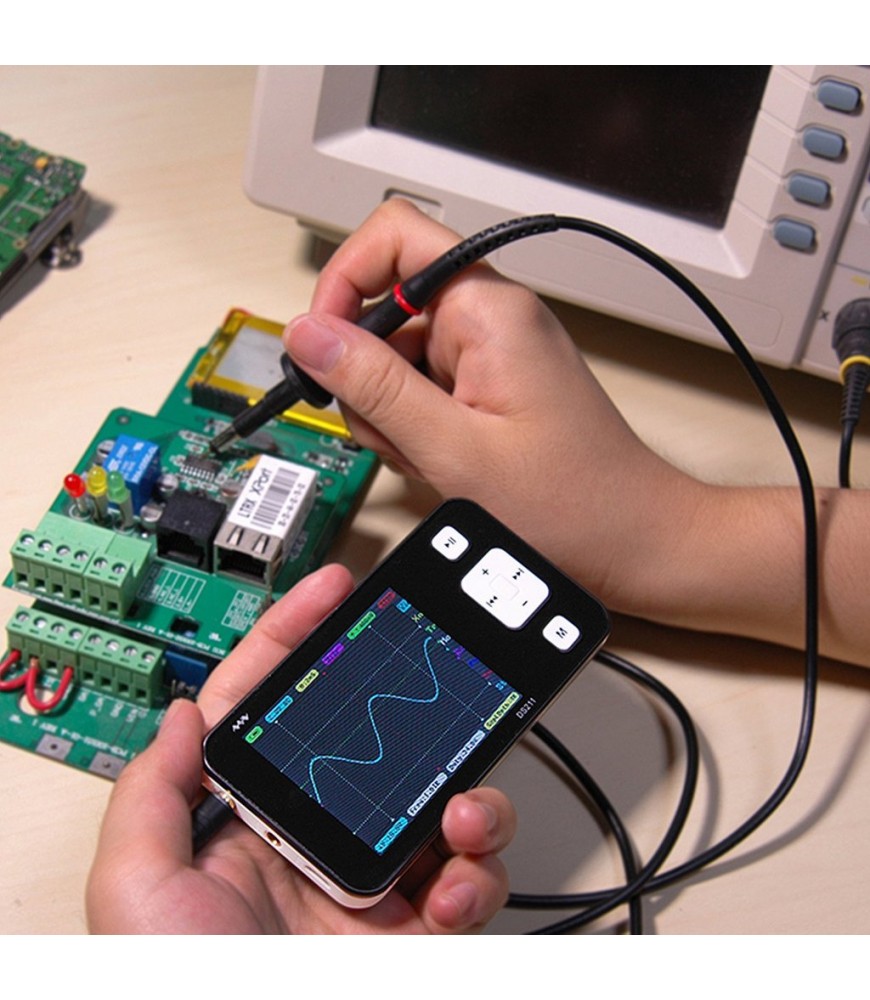

APPLICATION

1. Outdoor maintenance (AC / DC switching power supply or inverter, elevator and building fire-fighting equipment, industrial control circuit, etc...)

2. Hardware maintenance or software debugging of RS232, RS485, I2C, CAN and other communications interface circuits, LED display and keyboard scan driver circuit, brushless motor drive circuit

3. Analyze audio devices and circuits, electronic toys and remote control models, automotive electronics circuits

4. Academic use provided practice for student development of small electronic production

5. Observe signal changes in certain circuits (such as relay and switch contacts jitter, battery charge and discharge curve, the load transient response power supply, temperature sensor characteristic measurement, etc...)

6. Power supply related electronic circuits (SCR voltage regulation, power factor correction, electronic energy-saving lamps, sodium lamps, dysprosium lamp mercury xenon lamps lamp drive circuit, etc...)

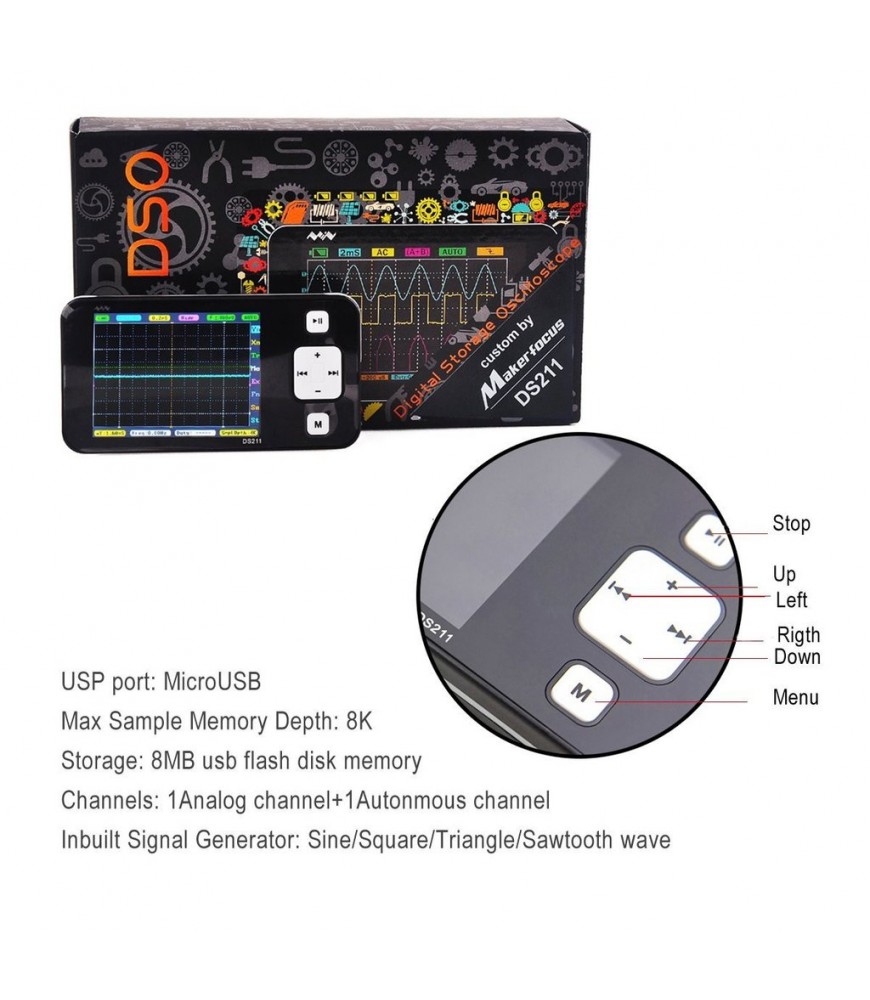

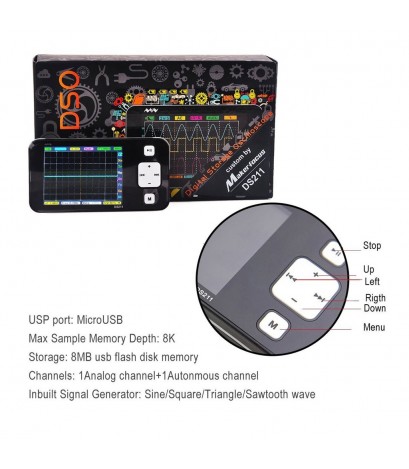

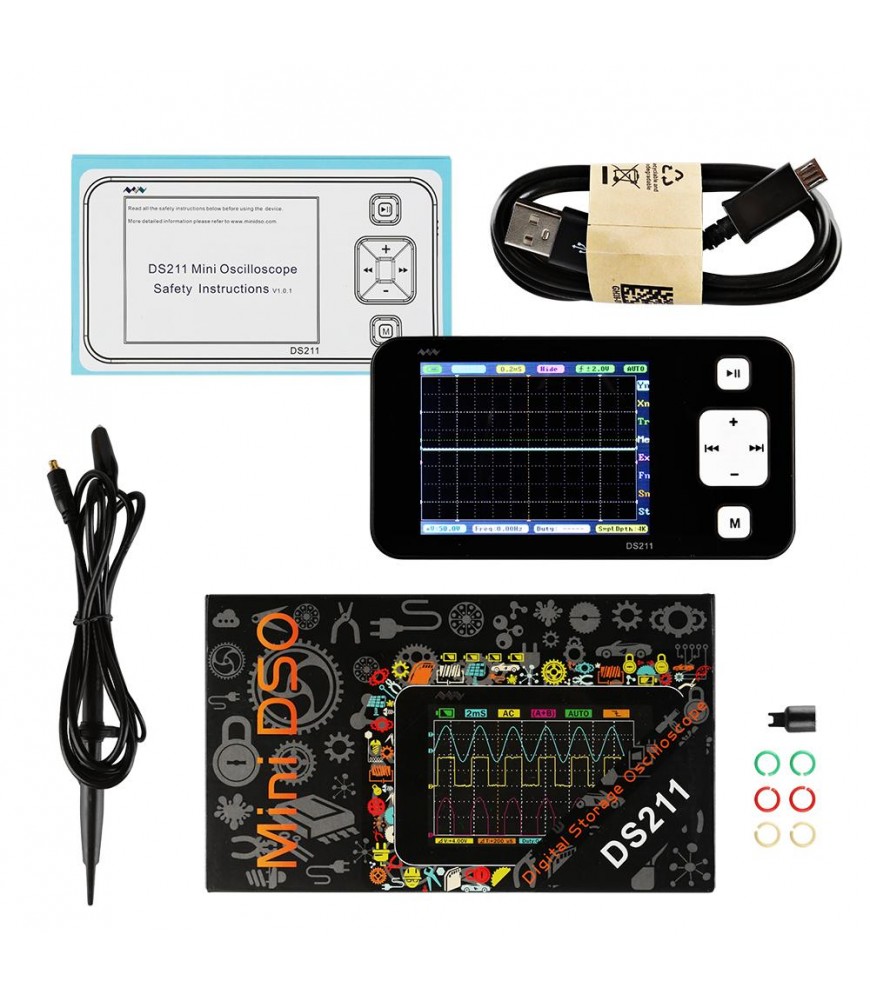

WHAT'S IN THE PACKAGE
  • 1x DS211 Digital Oscilloscope Device
  • 1x Probe (X1)
  • 1x Allen key
  • 1x Self-printed paper manual
