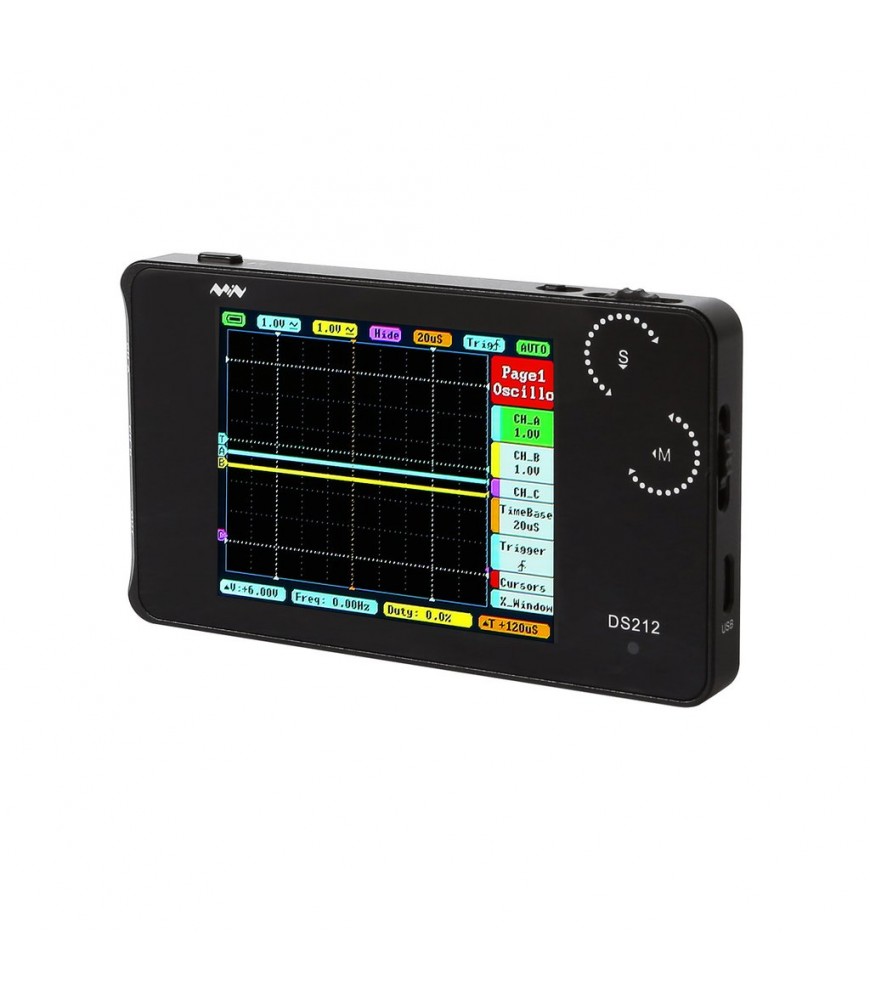

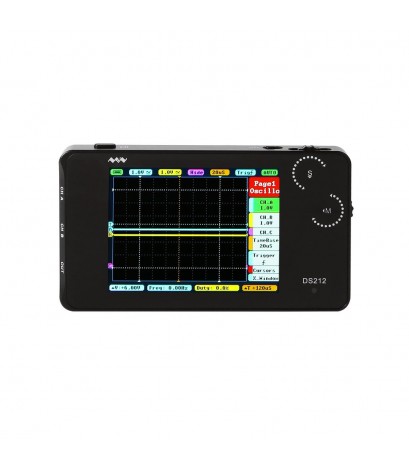

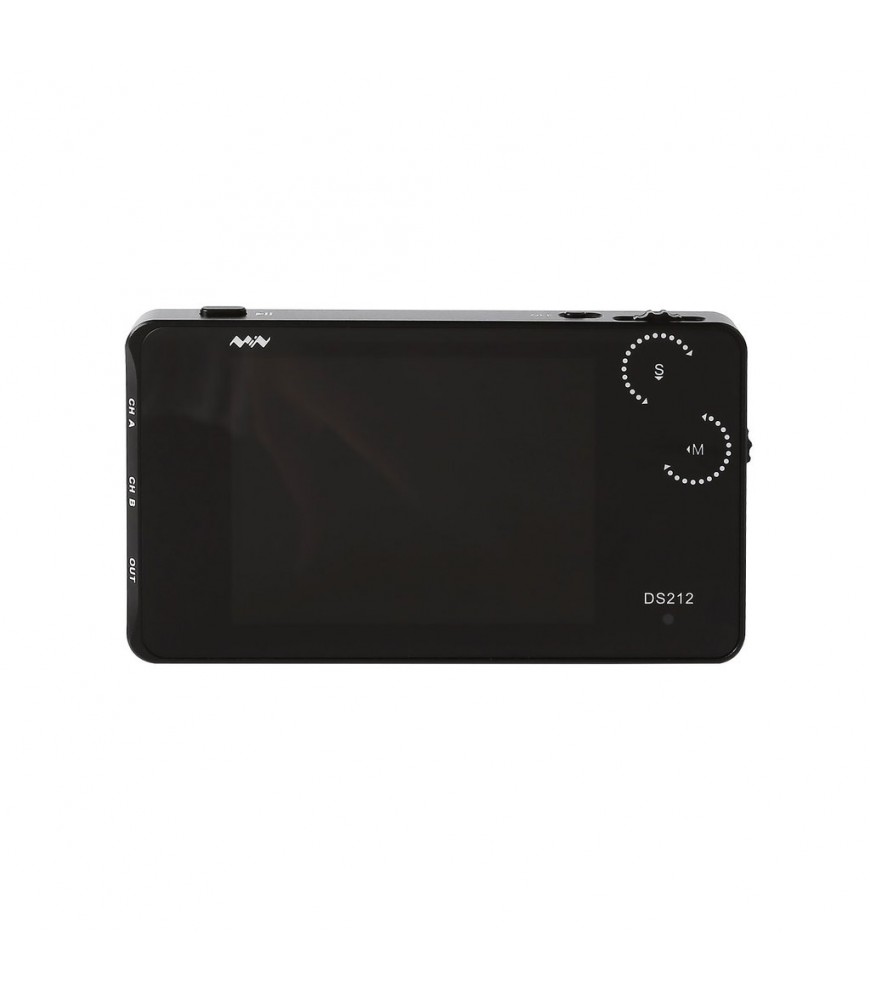

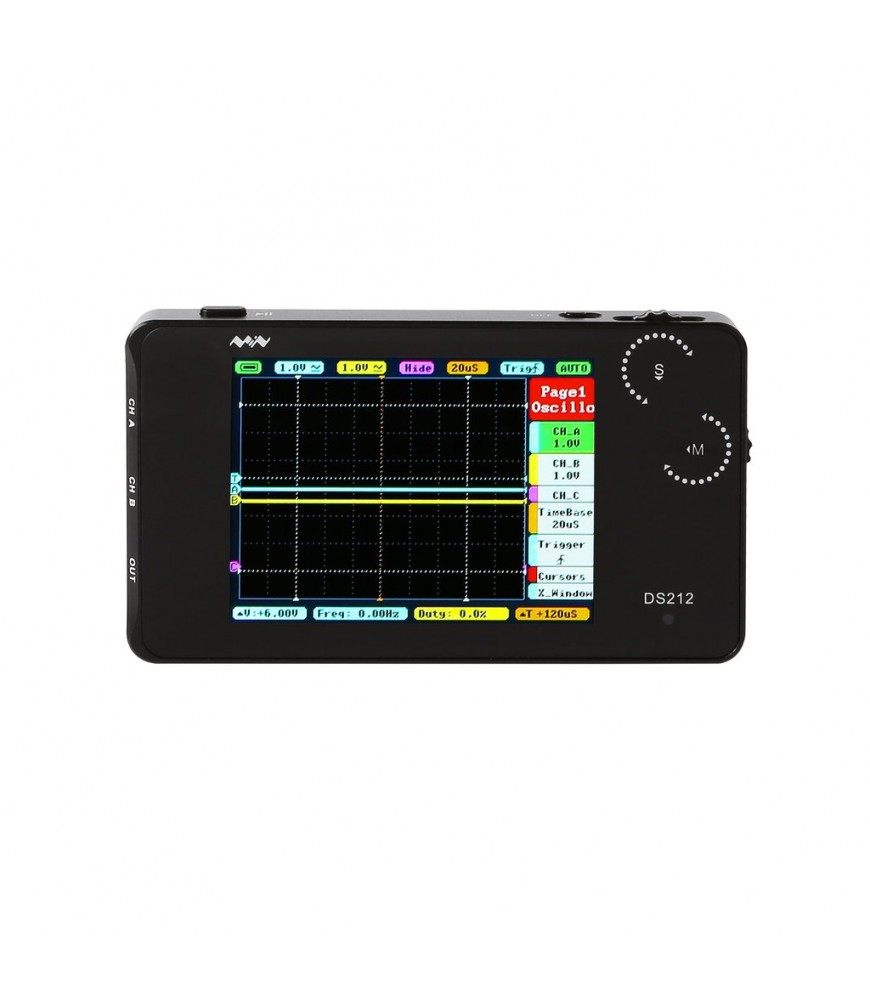

DSO212 2-CH Handheld Mini Digital Oscilloscope

DSO212 2-CH Handheld Mini Digital Oscilloscope

DSO212 2-CH Handheld Mini Digital Oscilloscope

  • Product Code:101-10-600
  • Availability:In Stock
  • $99.99

  • Ex Tax:$99.99

DSO Series:

ModelDSO Nano (DSO211)DSO Note II (DSO202)DSO 212DSO Quad (DSO203)
MCUSTM32F103VCSTM32F303VCSTM32F303VCSTM32F103VE
ADCMCU internal ADCMCU internal ADCMCU internal ADCAD9288
ChannelsAnalog channel 1 + 1 internal channel2 analog2 analog2 analog, 2 digital
Analog Bandwidth200KHz1MHz1MHz8MHz
Max Sample Rate1MSa/s10MSa/s10MSa/s72MSa/s
Maximum Memory Depth8K8K8K4K
Horizontal Sensitivity1uS/Div~2S/Div(1-2-5sequence step)1uS/Div~2S/Div(1-2-5sequence step)1uS/Div~2S/Div(1-2-5sequence step)0.1uS/Div~1S/Div(1-2-5sequence step)
Vertical Sensitivity20mv/Div~10V/Div(1-2-5sequence step)20mv/Div~10V/Div(1-2-5sequence step)20mv/Div~10V/Div(1-2-5sequence step)50mv/Div~10V/Div(1-2-5sequence step)
Input Resistance1MΩ1MΩ1MΩ1MΩ
CouplingDC / ACDC / ACDC / ACDC / AC
Auto Adjustment ModeAUTO_FITAUTO_FITAUTO_FITNO
Calculation Waveforms-A, RecA, A + RecA-A,-B,A+B,A-B RecA,RecB,RecC-A,-B,A+B,A-B RecA,RecB,RecC-A,-B,A+B,A-B RecA,RecB,RecC
Storage 8MB USB flash disk memory 8MB USB flash disk memory 8MB USB flash disk memory 8MB USB flash disk memory
APP Installed1224
Operationbuttonsbutton,touch areabuttons,scrollersbuttons,scrollers
USB InterfaceMicro USBMicro USBMicro USBMini USB
Battery500mAh500mAh500mAh1000mAh
Screen Size2.8inch2.8inch2.8inch3.0inch
Screen Resolution320 × 240320 × 240320 × 240400 × 240
Open SourceApplication layer Open-Source
FUNCTION
  • Rising/Falling edge trigger
  • Store file as BMP, DAT, BUF, or CSV format
  • Math waveforms:-A,-B,A+B,A-B,Rec A,RecB,RecC
  • Synchronous mode: Auto, Normal, Single, None, Scan
  • Inbuilt 8MB U disk storage for waveform data and images
  • Modes of vertical precise, horizontal precise measurement and triggering threshold
  • Auto Measurement: frequency, cycle time, duty cycle, DC RMS voltage/Vpp /Vmax/Vmin/Vavg
  • Inbuilt Signal Generator: Sine/Square/Triangle/Sawtooth wave

SPECIFICATION
  • Max sample rate: 10MSa/s
  • Analog bandwidth: 1MHz
  • Max sample memory depth: 8K
  • Analog input impedance: 1MΩ
  • Max input voltage: ±40V(X1 probe)
  • Coupling:AC/DC
  • Vertical sensitivity: 20mv/Div~10V/Div (1-2-5 sequence step)
  • Horizontal sensitivity: 1uS/Div~2S/Div(1-2-5 sequence step)
  • Dimension: 100mm X 56.5mm X 10.7mm
  • Weight: 95g
  • Case side thumbwheel control
  • Screen: 2.8" Full Color TFT LCD Display (320X240 pixels)
  • Recharging through Micro USB port
  • Internal 500mAh Lithium battery
  • Compliant with EU/USA certification CE/FCC

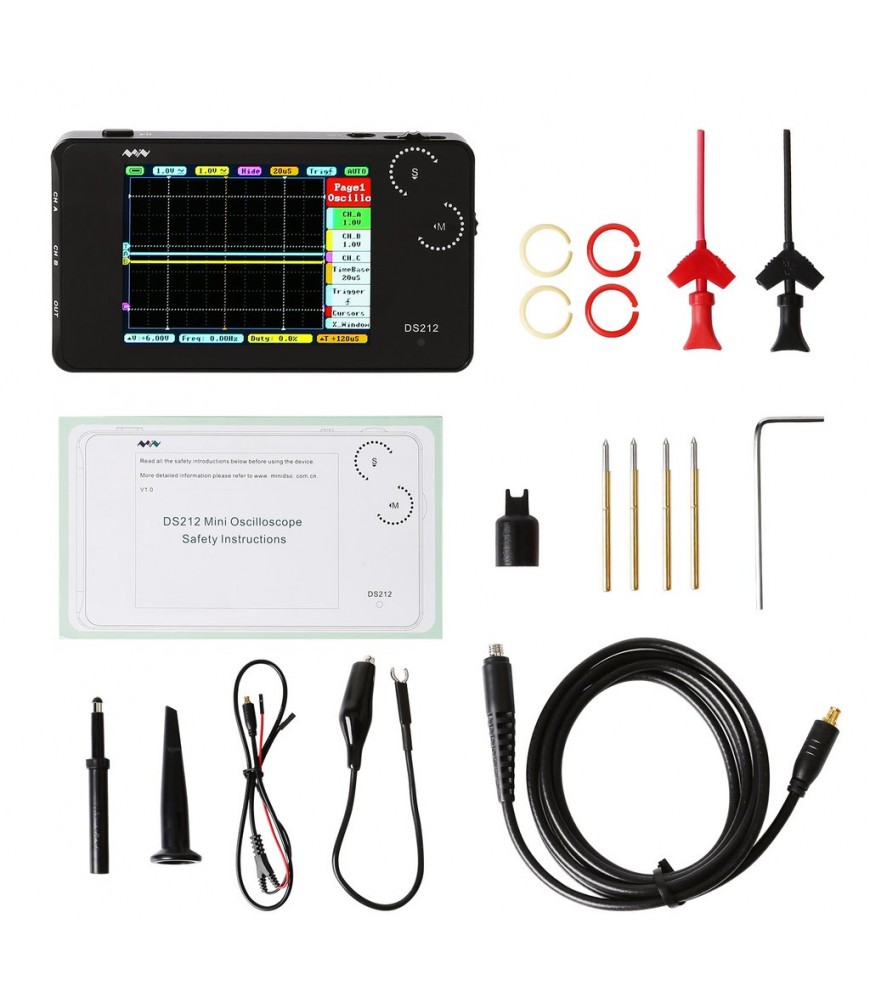

WHAT'S IN THE PACKAGE
  • 1x DS212 mini oscilloscope
  • 1x combined probe
  • 1x DSO hook
  • 1x Hex key
  • 1x Safety instruction
