Notice: This oscilloscope requires DC 9V 200mA power supply (no more than 10V, or it may be burned)

SPECIFICATION

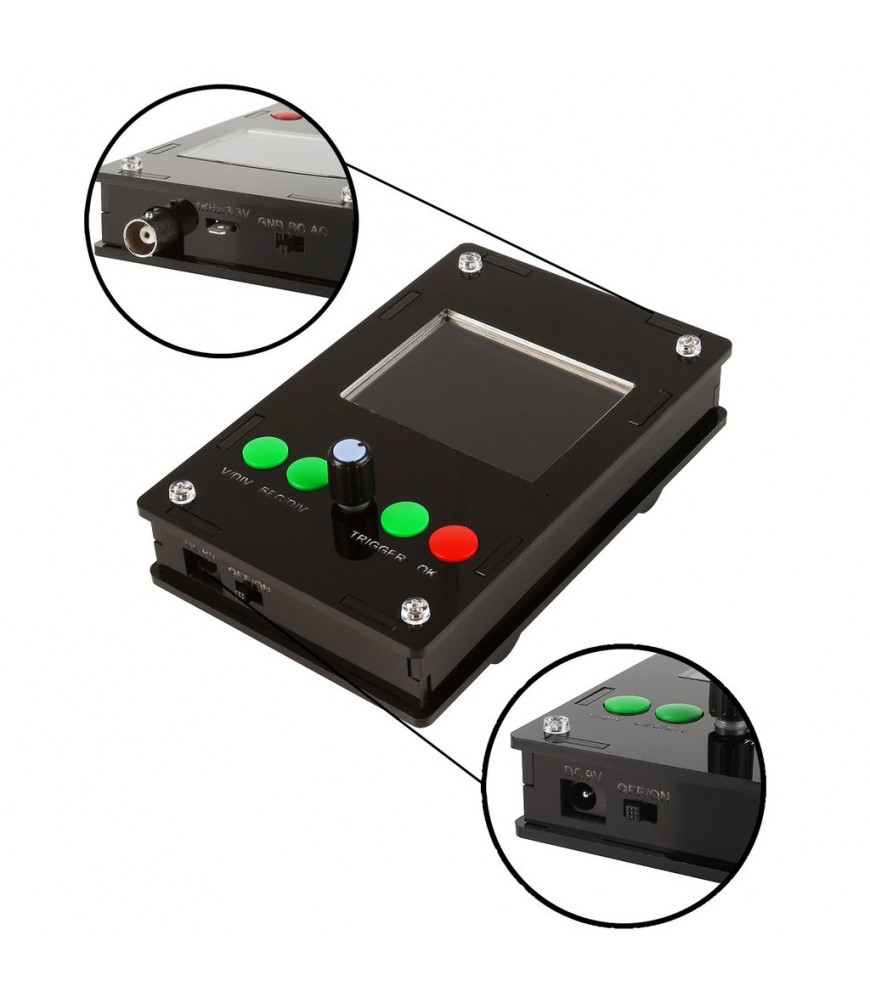

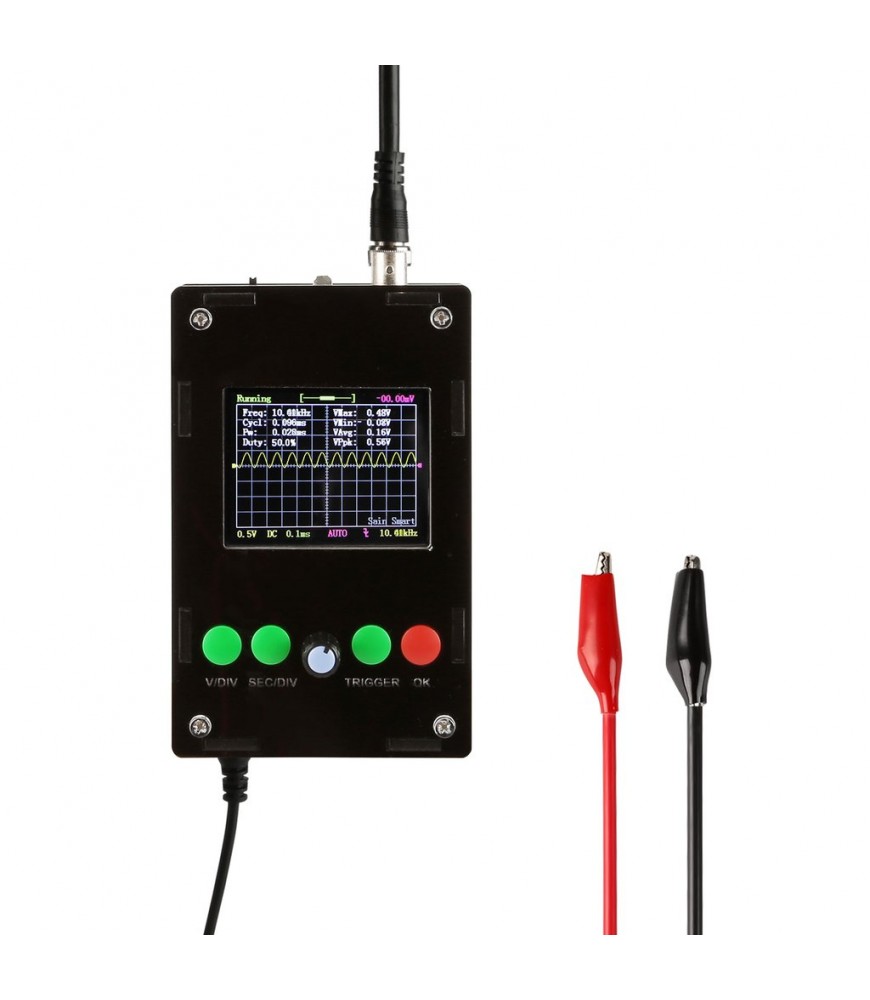

• Model: DSO320
• Input impedance: 1MΩ
• Analog Bandwidth: 0 a€ 200 KHz
• Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
• Maximum real-time sampling rate: 1Msps
• Comes 1Hz /3.3V square wave test signal source
• Accuracy: 12Bit
• Sampling buffer depth: 1024 bytes
• Vertical Sensitivity: 5mV/Div a€ 20V/Div
• Adjustable vertical displacement, and with instructions
• Coupling modes: DC / AC / GND
• The horizontal time base range: 10μs / Div - 50s / Div (1-2-5 progressive manner)
• With automatic, regular and one-shot mode, easy to capture the moment waveform
• Available rising or falling edge trigger
• Adjustable trigger level position, and with instructions
• Observable previous trigger waveform (negative delay)
• Can freeze at any time waveform display (HOLD function)

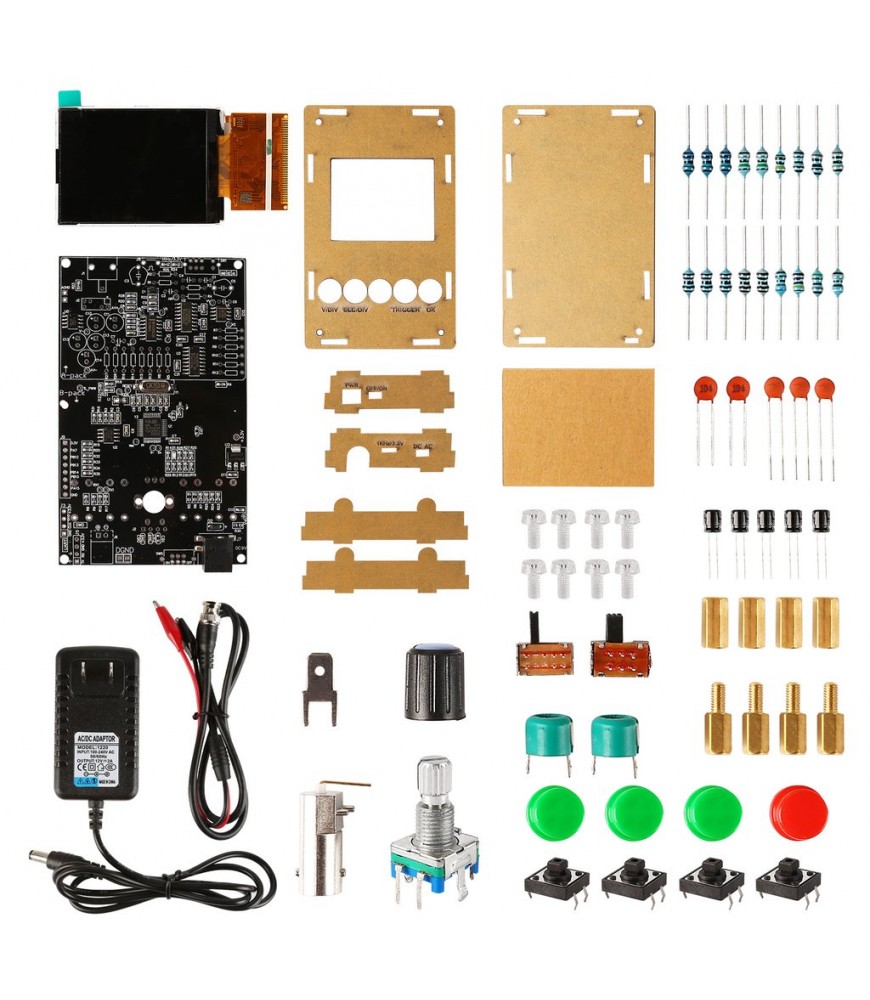

WHAT'S IN THE PACKAGE

• 1x DSO320 Oscilloscope DIY Kit
• 1x Probe
• 1x Power Supply
