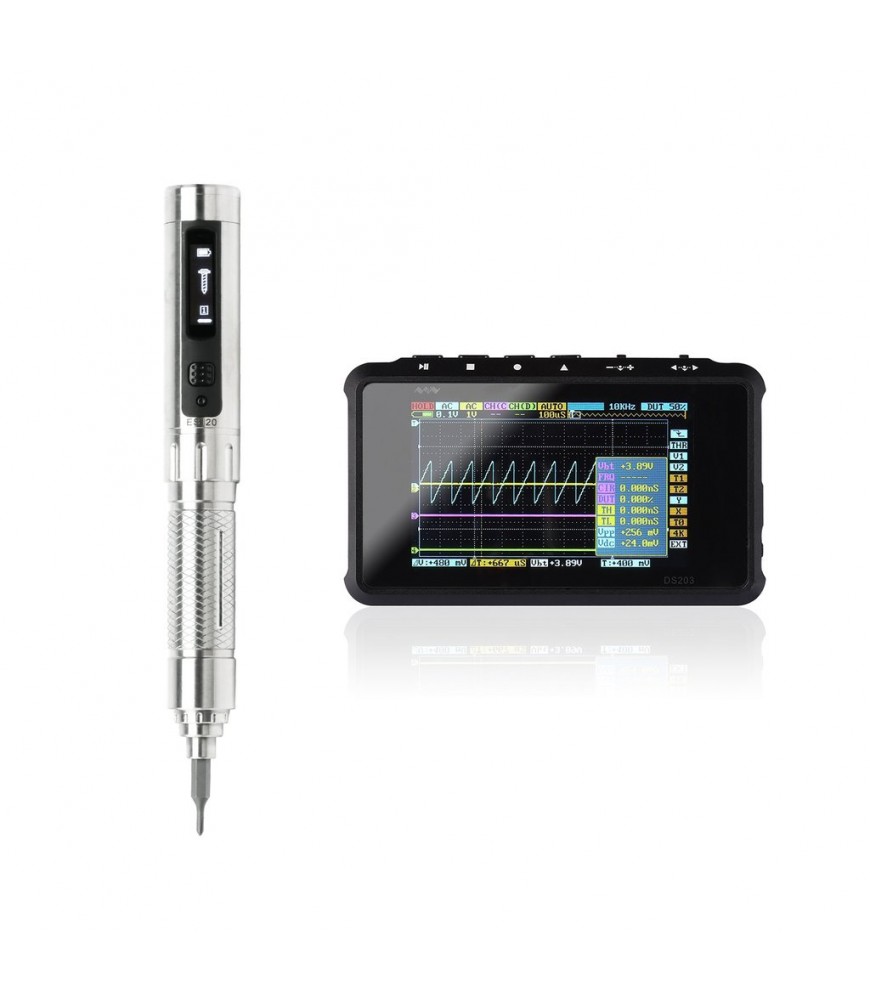

DSO203 Titanium Color
DSO203 is a 5-trace 4-channel digital oscilloscope for common electronic engineering tasks. We offer titanium color edition in this special bundle.
| Model | DSO203 |
| Analog channel | 2, [CH_A] [CH_B] |
| Digital channel | 2, [CH_C] [CH_D] |
| Vertical Scale | 20mV-10V/div (x1 probe) |
| Vertical solution | 8 bit |
| Input coupling | AC/DC |
| Max input voltage | 80Vpp (x1 probe) / 400Vpp (x10 probe) |
| Storage | 4K per channel, internal 8MB USB disk |
| Software trigger type | edge, pulse, level (to be added) |
| Hardware trigger type | edge |
| Trigger source | CH1/CH2/EXT |
| Test Signal generator | 10Hz to 1Mhz |
| Auto measure | Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty |
| Cursor measurement | Level, Voltage |
| Display mode | CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2 |
| Sampling mode | real time |
| Sampling rate | 1KSa/s - 72MSa/S |
| Power | Li-ion battery |
| Dimension | 98 x 60 x 14.5 mm |
ES120
| Model | ES120 |
| Main Chip | STM32 |
| Sensor | Angular velocity sensor |
| Work Voltage | DC3-5V |
| Material | 304 stainless steel |
| No-load Speed | About 170rpm |
| Electronic Torque | 2.8kgf.cm |
| Maximum Torque | 30kgf.cm (manual mode) |
| Screwdriver Bit | 4mm hexagon |
| Charging Time | 45min |
| Running Time | 30min (full power) |
| Charging Mode | Micro USB 5V Input |
| Screen | 16x96 OLED |
| Battery | 300mAh 10440 Lithium-ion battery |
| Rotor | Bidirectional overrunning clutch |
| Gearbox | 1:144 Integrated planetary gearbox |
| Motor | 25,000 rpm brush motor |
